Goodman

Goodman3 Ton 16.5 SEER2 80% AFUE 60,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal (GSXC-CHPT-GMVC)

Goodman3 Ton 16.5 SEER2 80% AFUE 60,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal (GSXC-CHPT-GMVC)

Dropship

SKU SKU:kpi027-GSXC703610CHPTA3630B4GMVC800604BN

Regular price $5,265.00 USD
Regular price Sale price $5,265.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 36000 BTU
category: Furnace & Air Conditioner Systems
furnace_efficiency_afue: 80%
heating_capacity: 60000 BTU
manufacturer: Goodman
mpn: GSXC703610CHPTA3630B4GMVC800604BN
subcategory: Furnace & Air Conditioner Systems
weight: 442

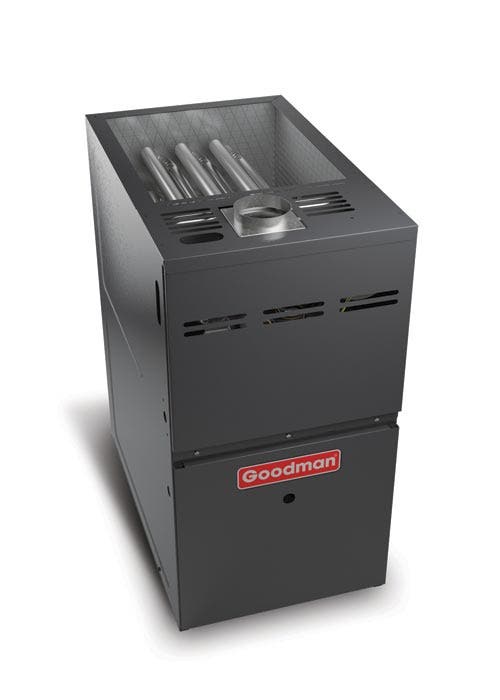

Goodman - GSXC703610CHPTA3630B4GMVC800604BN The GMVC80604BN gas furnace is from one of the top-of-the-line series by Goodman. Considered one of the best of the best, this furnace has a two stage burner and a variable speed blower motor. With the best durability and reliability that Goodman 80% efficient furnaces have to offer, we are proud to offer you the Goodman GMVC80604BN gas furnace.

Features
  • This furnace is ideal to heat a medium-sized house (in average climate conditions)
  • 60,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPN GMVC800604BN
Weight (in lbs) 138.000000
Exhaust Flue Requirement Metal
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 80%
Heating BTU 60,000
Blower Motor Variable Speed
Maximum CFM 1600
Configuration Upflow/Horizontal
Electrical 120 V. 1 Phase 60 Hz
Burner Stages Two
Fuel Type Propane, Natural Gas
Height 34.5"
Width 17.5"
Depth 28.75"
Warranty 10 Years with Online Registration

3 Ton 17.2 SEER2 High Efficiency Goodman Air Conditioner Condenser

Built with a superior design, Goodman manufactured the GSXC703610 to be whisper-quiet, to be extremely efficient, and to provide the best comfort possible. The GSXC703610 is considered from the best of the best series of AC condenser that Goodman has to offer, making it a top-quality unit to suit the all of your cooling needs.

Features
  • Ideal size to cover a smaller house in ideal climates
  • 3 Ton, 17.2 SEER2 AC-only condenser
  • Two Stage
  • Lowest possible sound output
  • Fully charged for up to 15' of line set
  • Factory-installed filter drier

Additional Information

MPN GSXC703610
Weight (in lbs) 238.000000
Brand/Manufacturer Goodman
Replaces GSXC1603610GSXC1803610
Cooling BTU 36,000
Blower Motor Two Stage ECM Motor
Decibel Level (dBA) 72
Horsepower 0.333 HP
Energy Star Yes
Refrigerant R410A
SEER2 (Efficiency) 17.2
Condenser Stages Two Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 7/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 40 Amps
Min. Breaker Size 24.1 Amps
Tonnage 3 Ton
Connection Sweat
Height 39 1/2"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts and Lifetime Compressor with Online Registration

3 Ton 17.5" Height Goodman Horizontal Evaporator Coil - Cased

The Goodman CHPTA3630B4 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA3630B4 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features
  • 3 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit

Additional Information

MPN CHPTA3630B4
Weight (in lbs) 66.000000
Brand/Manufacturer Goodman
Configuration Horizontal
Refrigerant R410A
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 3 Ton
Style A-Coil
Certification ETL Listed
Height 17.5"
Width 30"
Depth 21"
Warranty 10 Years Parts with Online Registration
