Goodman4 Ton 15.2 SEER2 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal (GSXH-CHPT-GM9S)

Goodman4 Ton 15.2 SEER2 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal (GSXH-CHPT-GM9S)

Dropship

SKU SKU:kpi027-GSXH504810CHPT4860D4GM9S800804CN

Regular price $4,672.00 USD
Regular price Sale price $4,672.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 48000 BTU
category: Furnace & Air Conditioner Systems
furnace_efficiency_afue: 80%
heating_capacity: 80000 BTU
manufacturer: Goodman
mpn: GSXH504810CHPT4860D4GM9S800804CN
subcategory: Furnace & Air Conditioner Systems
weight: 495

Goodman - GSXH504810CHPT4860D4GM9S800804CN The GM9S800804CN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GM9S800804CN single-stage, multi-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GMES800804CN.

Features
  • This furnace is ideal to heat a medium-sized house (depending on climate)
  • 80,000 BTU 80% efficient natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPN GM9S800804CN
Weight (in lbs) 132.000000
Exhaust Flue Requirement Metal
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 80%
Heating BTU 80,000
Blower Motor 9-Speed
Maximum CFM 1760
Configuration Upflow/Horizontal
Exhaust Pipe Metal
Electrical 115 V. 1 Phase 60 Hz
Phase Single Phase
Burner Stages Single
Fuel Type Propane, Natural Gas
Height 33 3/8"
Width 21"
Depth 28"
Warranty 10 Years with Online Registration

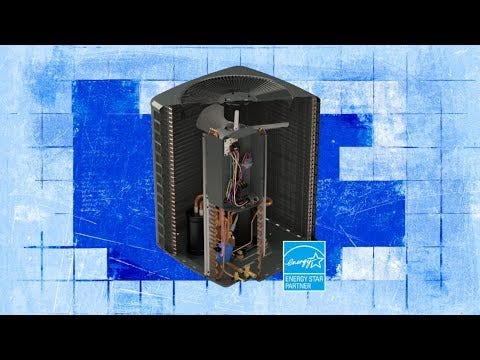

4 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GSXH504810 is no exception, with its durability, reliability, and one of the highest efficiencies available.

Features
  • Ideal size to cover a smaller house in ideal climates
  • 4 ton, 15.2 SEER2 AC-only condenser
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

Additional Information

MPN GSXH504810
Weight (in lbs) 282.000000
Brand/Manufacturer Goodman
Replaces GSX160481
Cooling BTU 48,000
Blower Motor Single Speed PSC Motor
Decibel Level (dBA) 73
Horsepower 0.25 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 7/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 45 Amps
Min. Breaker Size 26.2 Amps
Tonnage 4 Ton
Connection Sweat
Height 36 1/2"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts with Online Registration

3.5 to 5 Ton 24.5" Height Goodman Horizontal Evaporator Coil - Cased

The Goodman CHPT4860D4 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPT4860D4 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features
  • 3.5 to 5 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit

Additional Information

MPN CHPT4860D4
Weight (in lbs) 81.000000
Brand/Manufacturer Goodman
Configuration Horizontal
Refrigerant R410A
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 5 Ton
Style A-Coil
Certification ETL Listed
Height 24.5"
Width 26"
Depth 21 1/8"
Warranty 10 Years Parts with Online Registration
