Goodman4 Ton 15.2 SEER2 92% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Upflow (GSXH-CAPT-GM9S)

Goodman4 Ton 15.2 SEER2 92% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Upflow (GSXH-CAPT-GM9S)

Dropship

Get it by Sun, Dec 15 - Fri, Dec 20

SKU SKU:kpi027-GSXH504810CAPT4961C4GM9S920804CN

Regular price $5,286.00 USD
Regular price Sale price $5,286.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 48000 BTU
furnace_efficiency_afue: 92%
heating_capacity: 80000 BTU
manufacturer: Goodman
mpn: GSXH504810CAPT4961C4GM9S920804CN
weight: 494

Product Description

Goodman - GSXH504810CAPT4961C4GM9S920804CN The GM9S920804CN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GM9S920804CN single-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GM9S920804CN.

Features
  • This furnace is ideal to heat a smaller house (depending on climate)
  • 80,000 BTU 92% efficient natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPN GM9S920804CN
Weight (in lbs) 139.000000
Exhaust Flue Requirement Plastic / PVC
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 92%
Heating BTU 80,000
Blower Motor 9 Speed - ECM
Maximum CFM 1600
Configuration Upflow/Horizontal
Exhaust Pipe PVC
Flue Location Right
Electrical 115 V. 1 Phase 60 Hz
Burner Stages Single
Fuel Type Propane, Natural Gas
Height 34.5"
Width 21"
Depth 28.75"
Warranty 10 Years with Online Registration

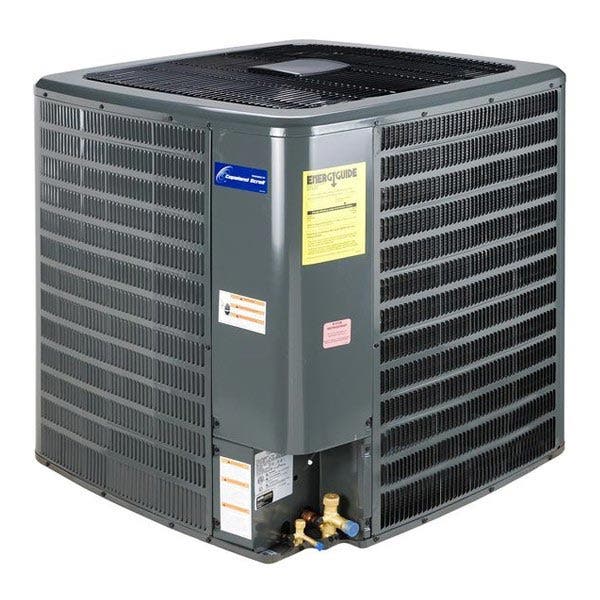

4 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GSXH504810 is no exception, with its durability, reliability, and one of the highest efficiencies available.

Features
  • Ideal size to cover a smaller house in ideal climates
  • 4 ton, 15.2 SEER2 AC-only condenser
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

Additional Information

MPN GSXH504810
Weight (in lbs) 282.000000
Brand/Manufacturer Goodman
Replaces GSX160481
Cooling BTU 48,000
Blower Motor Single Speed PSC Motor
Decibel Level (dBA) 73
Horsepower 0.25 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 7/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 45 Amps
Min. Breaker Size 26.2 Amps
Tonnage 4 Ton
Connection Sweat
Height 36 1/2"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts with Online Registration

4 to 5 Ton 21" Width Goodman Cased Evaporator Coil with TXV

The Goodman CAPT4961C4 evaporator coil is ready for any vertical installation that you need it for. With a built-in TXV kit for efficiency, the CAPT4961C4 lives up to Goodman’s expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features
  • 4 to 5 ton vertical evaporator coil
  • Installable in the upflow or downflow configuration
  • Usable with either a heat pump or an AC-only condenser
  • Low air leakage
  • Factory-installed TXV

Additional Information

MPN CAPT4961C4
Weight (in lbs) 73.000000
Brand/Manufacturer Goodman
Configuration Upflow / Downflow
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 4 Ton to 5 Ton
Style A-Coil
Height 30"
Width 21"
Depth 21"
Warranty 10 Years with Online Registration
