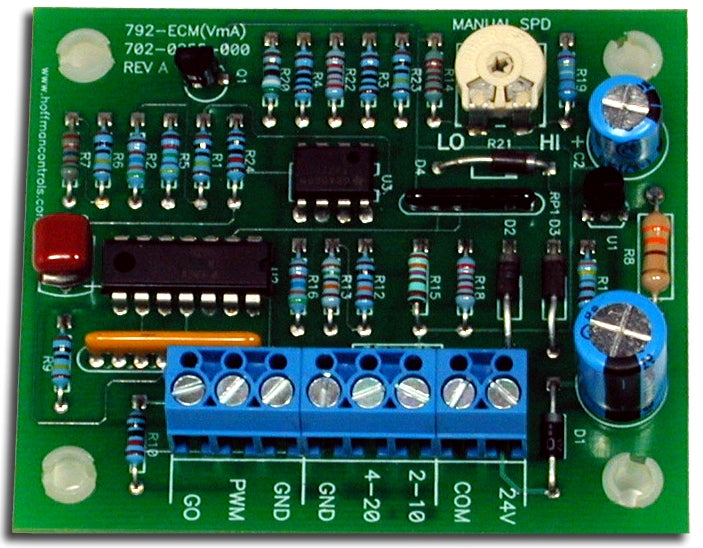

Hoffman Controls 792-ECM(VmA) EC Motor Speed Controller

Product Description

Hoffman Controls - 792-ECM(VmA) The 792-ECM(VmA) Controller is desgned to vary the speed of an EC Motor via a Pulse Width Modulated (PWM) signal. The output current capacity is sufficient to drive a single motor input (5mA). The controller will accept either a 2-10 VDC or 4-20 mA input signal. The PWM output signal will scale from 0% to 100% over the input signal range. A manual speed adjustment is also provided, and will allow for 0% to 100% PWM output over it's adjustment range. This manual speed adjustment can also be used to provide a continuous minimum speed when using the VDC or mA input.
