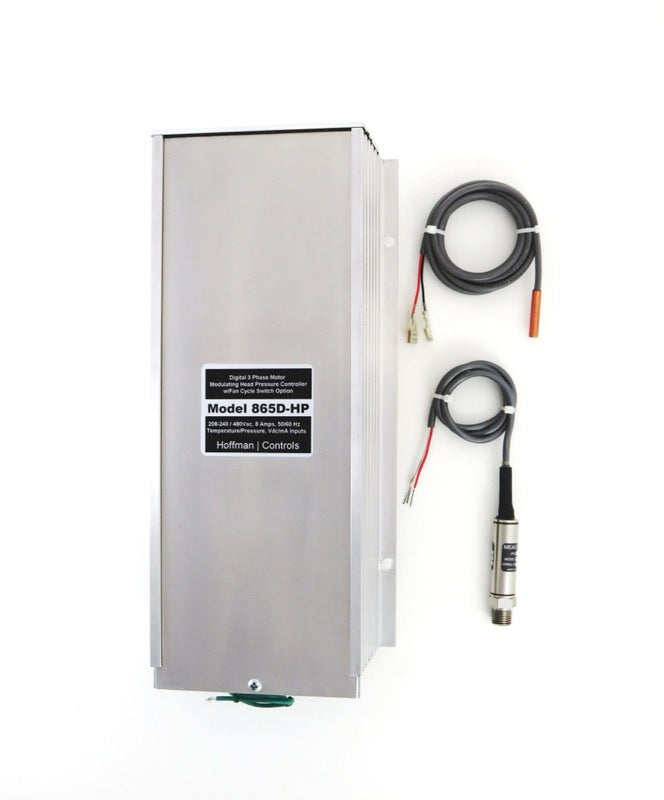

Hoffman Controls 865D-HP Three Phase Head Pressure Control

Product Description

Hoffman Controls - 865D-HP The 865D-HP Control is an improved microprocessor based Three Phase Head Pressure Control that is a direct replacement for the 865-3AA, 865D and 865D-2 Series Controls. The 865DHP can be used as a Fan Modulating Head Pressure Control or a Fan Cycling Head Pressure Control via a selection switch with up to two Temperature Sensor inputs or one 0-10Vdc or 4-20mA Pressure Transducer input. The Control varys the air volume through the condenser thus regulating head pressure for proper heat rejection in low ambient conditions. The 865D-HP Control maintains a minimum pressure differential across the expansion valve to provide the proper rated capacity for all ambient operating conditions regardless of refrigerant types. This maintains proper system operating conditions, while assuring proper suction pressure (evaporator temperature) over the anticipated ambient operating range. The 865D-HP Control is limited to 1/2 to 2 HP, three phase, 208-230/460Vac, direct connected, propeller type, condenser fan motor applications. Modulating applications require continuously variable speed High Slip tolerant/Ventilated (HS/V), 850/1150 RPM, direct drive, 56 Frame, vertical shaft designed motors approved by the motor manufacturer for continuous variable speed operation. The optional Fan Cycling Mode can use lower quality motors not designed for variable speed applications. The 865D-HP Control is supplied with a NEMA 3R r a inproof enclosure for field installation in poor weather/ambient conditions and includes an encapsulated Temperature Sensor and mounting hardware that is designed for fast response of liquid line temperature changes.

• The 865D-HP Control is factory calibrated for use with the supplied liquid line Temperature Sensor and is set for 50ºF to 80ºF operation with a typical minimum speed of 300RPM for variable speed motors.
• These setting can be field changed as required for both variable and fixed fan speed applications.
• Optional 0-10Vdc or 4-20mA input signals are available and may be used when a pressure transducer or other control signals are desired.
• The 865D-HP Control will automatically sense the type of input signal being used, i.e., Sensor, mA or Vdc.
• The Head Pressure (HP) MODE switch can be used to select either variable (MODULATE) or fixed (FAN CYCLE) speed Head Pressure Control operation.
• The MIN SPD potentiometer is used to set the Head Pressure Control minimum motor speed.
• The LOW SET and HIGH SET potentiometers can be used to set the desired minimum and maximum input signal values to operate the motor from minimum to maximum motor RPM.
• These potentiometers also used to set the FAN CYCLE on/off values and include a temperature (°F), mA and Vdc scale.
• Four LEDs are included that display when the power is ON, any FAULTS with the input power, Motor Speed and Set Point counter.
