Product Description

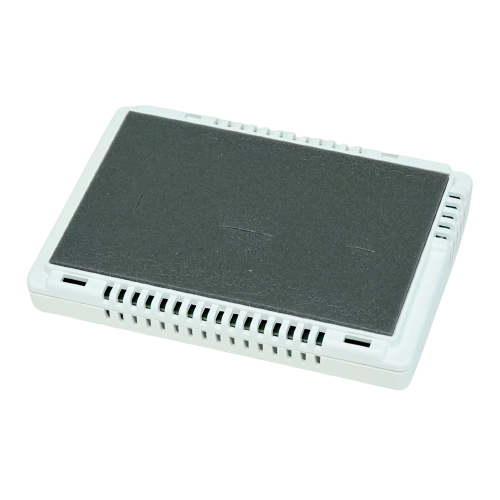

ICM - SC5811
Details
Simplicity is in its name. ICM Controls SimpleComfort® PRO thermostats feature innovation and technology that deliver measurable value, simplified installation and increased profitability.
- Programmable
- Two-stage heat/cool
- Two-stage heat pump
- Flexible 7-Day, 5-2-Day and 5-1-1-Day programming
- Hardwired
- ICM patented Thermal Intrusion Barrier
- ICM patent-pending SimpleSet„ Target Programming technology
- Large display with backlight
- Permanent memory
- Accuracy: +/- 1°F, +/- 0.5°C
- Manual or auto changeover
- Field adjustable calibration
- Adjustable maximum heat/minimum cool setpoints
- Adjustable temperature differential
- Configurable remote sensor compatible
- Selectable °F or °C
- Keypad lockout
- Soft-touch controls
- Status LEDs
WEIGHT/DIMENSIONS:
- Weight: 0.35
- Height: 1.12
- Width: 5.5
- Length: 3.75
Specifications:
Electrical Rating:
24 VAC (18-30 VAC)
1 amp maximum per terminal
4 amp maximum total load
Temperature Control Ranges:
45°F to 90°F (7°C to 32°C)
Accuracy:
± 1°F (± 0.5°C)
