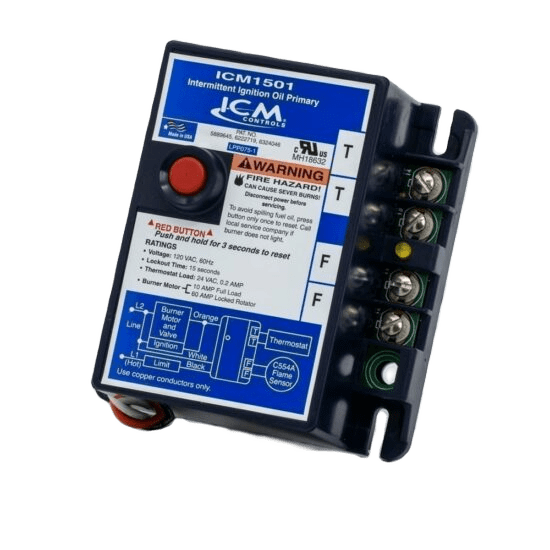

ICM Controls ICM1501 Oil Burner Primary(15-Second Safety Timing)

Out of stock

Get it by Thu, Jul 03 - Tue, Jul 08

SKU SKU:ICM1501

$97.13 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

category: Ignition Control Modules

country_of_origin: US

manufacturer: ICM

mpn: ICM1501

subcategory: Oil Primary Controls

weight: 0.95

Product Description

ICM - ICM1501

DETAILS:

Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat
Solid state flame sensing circuit
LED on terminal strip indicates system lockout
Enclosed safety switch with external reset button
Mounts on standard 4—4 J-Box (select models may be mounted directly on burner housing)
C554A Cadmium Sulfide Flame Detector and 24 VAC thermostat required
Replacement for popular competitive models

WEIGHT/DIMENSIONS:

Ignition Type: Intermittent

Timing, Safety Switch: 15

Mounting Bracket: Standard 4—4 J-Box or direct mounting on burner housing

Electrical Rating (Contacts Full Load):

7.4 A @ 120 VAC

3.7 A @ 240 VAC

Electrical Rating (Contacts Locked Rotor):

44.4 A @ 120 VAC

22.2 A @ 240 VAC

Temperature Range:

-30°F to 130°F

Approvals: UL Approved
