category:
Ignition Control Modules
country_of_origin:
US
manufacturer:
ICM
mpn:
ICM1502
subcategory:
Oil Primary Controls
weight:
0.95
Product Description

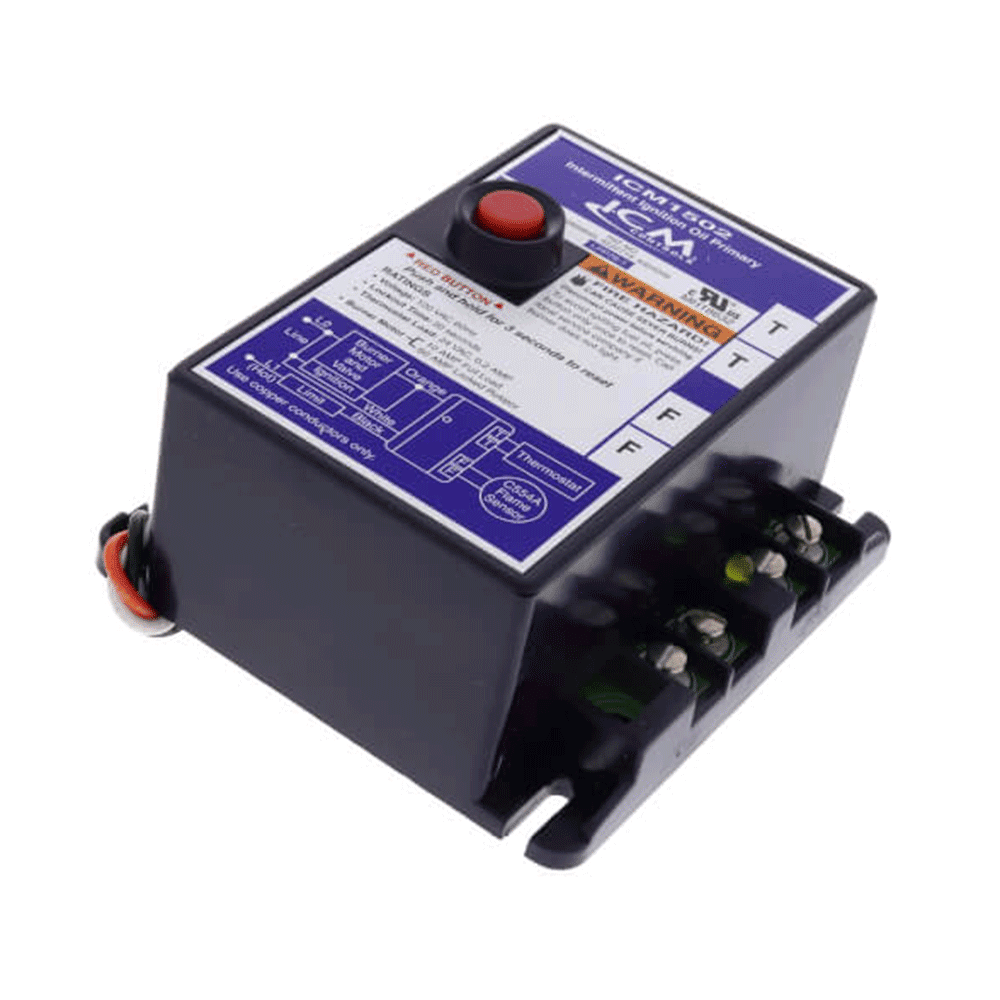

ICM - ICM1502
DETAILS:
- Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat
- Solid state flame sensing circuit
- LED on terminal strip indicates system lockout
- Enclosed safety switch with external reset button
- Mounts on standard 4—4 J-Box (select models may be mounted directly on burner housing)
- C554A Cadmium Sulfide Flame Detector and 24 VAC thermostat required
- Replacement for popular competitive models
WEIGHT/DIMENSIONS:
- Weight: 0.95
- Height: 2.35
- Width: 4.08
- Length: 4.41
SPECIFICATIONS:
Ignition Type: Intermittent
Timing, Safety Switch: 30
Mounting Bracket: Standard 4—4 J-Box or direct mounting on burner housing
Electrical Rating (Contacts Full Load):
7.4 A @ 120 VAC
3.7 A @ 240 VAC
Electrical Rating (Contacts Locked Rotor):
44.4 A @ 120 VAC
22.2 A @ 240 VAC
Temperature Range: -30°F to 130°F
Approvals: UL Approved
