Product Description
ICM - ICM2905

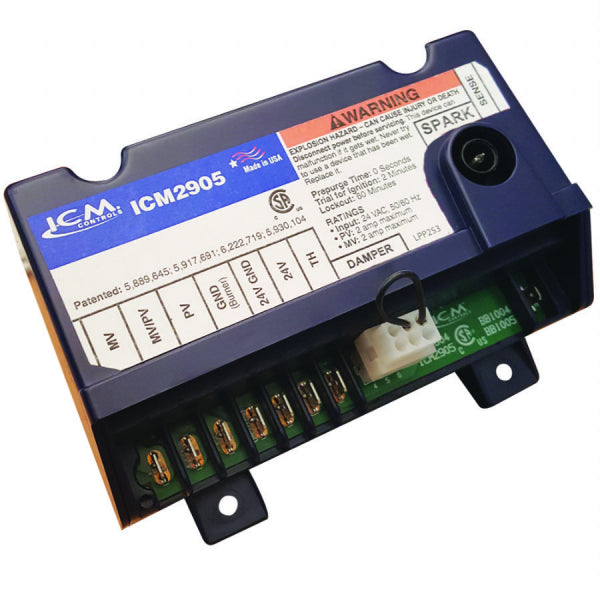

ICM2905 Intermittent Pilot Gas Ignition Control Module
- Intermittent pilot gas ignition control module
- For use with intermittent pilot boilers, furnaces and other heating appliances
- Microprocessor-based
- Monitors timing, trial for ignition, flame sensing and lockout
- Remote flame sensing
- 2 minute trial for ignition
- 60 minute lock out if pilot flame is not sensed in 2 minutes
- Compatible with LP or natural gas
- Damper control input
Additional Information
Weight 0.45
Height 2
Width 5.3
Length 4
Control Voltage 18-30 VAC
Frequency 50/60 Hz
Humidity 5%-95% R.H. (non-condensing) at +55°C
Operating Temperature -40°F to 165°F, -40°C to 75°C
Pilot Valve 2A @ 24 VAC
Main Gas Valve 2A @ 24 VAC
Current Draw 100 mA maximum
Pre-Purge Delay 0 seconds
Trial for ignition 2 minutes
Lock Out Time 60 minutes
