Product Description

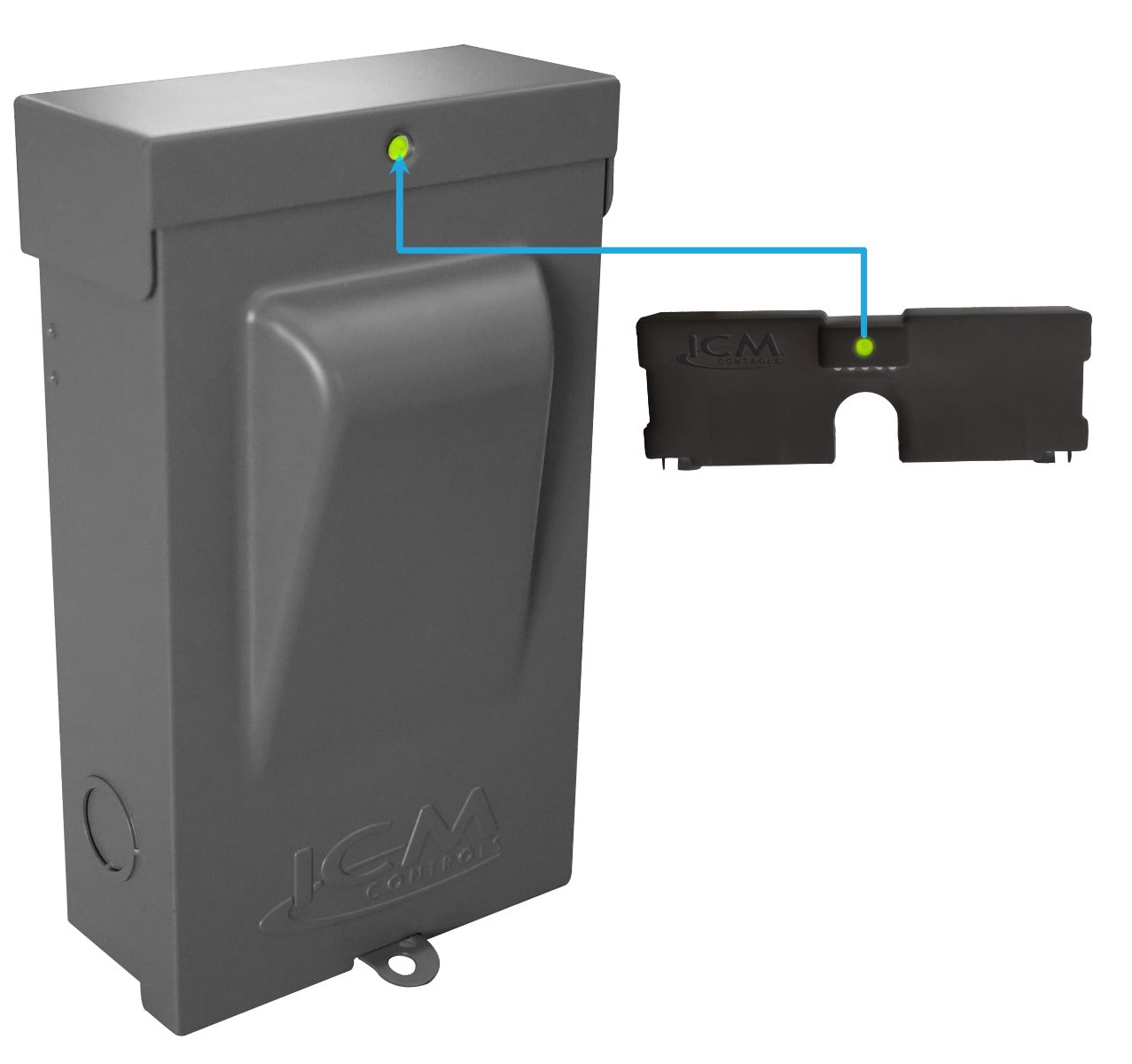

ICM - ICM495-30A-F The ICM495 is a UL Listed Electrical Disconnect with an Internal Surge Protective Device built-in. The ICM495 is available in two models 30A Fused and 60A Non-Fused. The included field replaceable Type 2 SPD is intended for 240 VAC Split Phase configurations. When a surge occurs, the ICM495 will absorb the surge up to the limits expressed in the specifications section in this guide. The ICM495 incorporates thermal protection on the surge elements (TMOV™s) which allows for safe disabling of the surge elements when a surge exceeds the thermal limits of the device. The ICM495 has a status light on the control which identifies operational status when illuminated. The ICM495 can be installed as a Type 2 device for both indoor and outdoor applications. Suitable for use on a circuit capable of delivering not more than 10kA RMS symmetrical amperes (Convient des circuits produisant au plus 10kA eff.).
Features :
- UL Listed Electrical Disconnect including both enclosure surge protector
- 120VAC single-phase, 240VAC split-phase
- Features an internal field replaceable surge protective device (SPD)
- Maximum Surge Current Rating of 100kA
- Highest UL rating for nominal discharge current (In 20kA), for increased longevity durability of the SPD
- Constructed with 2 high-quality thermally protected MOV™s (TFMOV)
- Completely factory wired for quick and easy installation
- NEMA type 3R rated powder coated metal enclosure for indoor/ outdoor use
- Fully accessible mounting holes, no dissembling required
- Braided strap thoroughly grounding both the enclosure and cover
- LED indicator light showing when Surge Protection is operational
- 30A Fused 60A non-fused models available
- Made in the USA
