Product Description

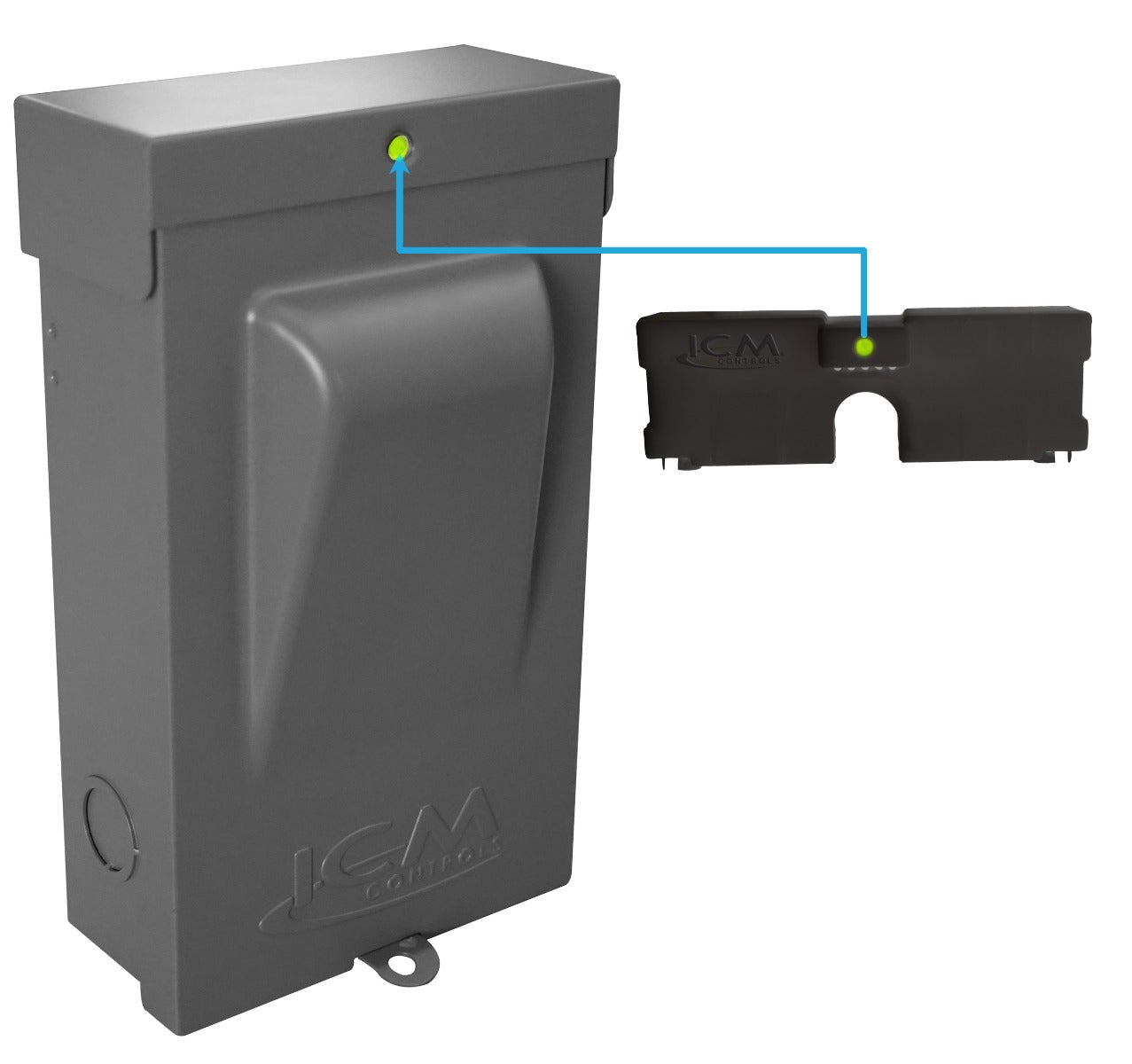

ICM - ICM495-60A-NF
The ICM495 is a UL Listed Electrical Disconnect with an Internal Surge Protective Device built-in. The ICM495 is available in two models 30A Fused and 60A Non Fused. The included field replaceable Surge Protective Device is intended for 120VAC Single-Phase or 240VAC Split-Phase configurations. Designed to protect equipment from transient surges. The ICM495 is a great low cost option to protect some of the most valuable equipment on the property, including: Air conditioning units, heat pumps, mini-split systems, pool spa equipment and more
Protects against
- Lightning strikes
- Power outages recoveries
- Downed power lines
- Startup of larger equipment
- Equipment failure
- Short circuits and more¦
Features:
- UL Listed Electrical Disconnect including both enclosure surge protector
- 120VAC single-phase, 240VAC split-phase
- Features an internal field replaceable surge protective device (ICM495-SUB)
- Maximum Surge Current Rating of 100kA
- Highest UL rating for nominal discharge current (in 20kA), for increased longevity durability of the SPD
- Constructed with 2 high-quality thermally protected MOV™s (TFMOV)
- Completely factory wired for quick and easy installation
- NEMA type 3R rated powder coated metal enclosure for indoor/outdoor use
- Fully accessible mounting holes, nodisassembling required
- Braided strap thoroughly grounding both the enclosure and cover
- LED indicator light showing when surge protection is operational
- 30A Fused 60A non-fused models available
- Made in the USA
- Limited lifetime product, up to a 3-year $10,000 connected equipment warranty
Additional Information
Service VoltageSplit Phase 240 VAC; 30A at -40°C min. and 25°C max., 240 VAC; 25A at -40°C min. and 55°C max., 240VAC; 60A at -40°C min. and 55°C max.
Short Circuit Current Rating (SCCR)10 kA
Maximum Surge Current100 kA (single event)
Nominal Discharge Current (In)20 kA (15 multiple events)
SPD TypeType 2 applications only
Surge Protection TechnologyTFMOV
Protection ModeL1-L2, L1-G, L2-G
Maximum Continuous Operation Voltage (MCOV)L-L / 300 VAC, L-G / 150 VAC
VPR (Vpk)Mode
Input Power Frequency50/60 Hz
DiagnosticsGreen LED indicates surge protection present
Enclosure RatingNEMA/Type 3R metal enclosure for outdoor and indoor installation
Installation PointLocated within sight of the motor controller/equipment
Dimensions9.0 L x 5.25 W x 2.50 D
Operating Temperature-40°F to 131°F (-40°C to 55°C)
Operating HumidityLess than 85%, non-condensing
Operating AltitudeLess than 2000 meters
Agency Certification and ApprovalsANSI/UL1449 5th Edition cULus Listed Device
