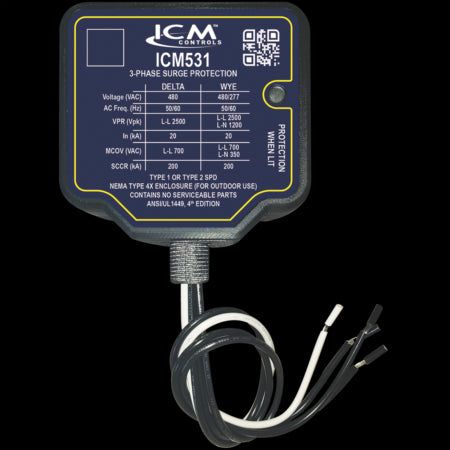

ICM Controls ICM531 3-Phase Surge Protective Device

ICM Controls ICM531 3-Phase Surge Protective Device

Back Order

Get it by Wed, May 14 - Mon, May 19

SKU ICM531

0
(0 rating)
$170.96 USD
$170.96 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Surge Protection Devices
country_of_origin: US
manufacturer: ICM
mpn: ICM531
subcategory: Three Phase Surge Protection

Product Description

ICM - ICM531

DETAILS:

3-Phase Surge Protective Device, 480VAC (Delta) or 277/480VAC (Wye)

  • Delta or Wye Configuration
  • NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
  • Green LED indicates surge protection present
  • Easily connects to electrical panel or disconnect for indoor and outdoor applications
  • UL Listed Type 1 or Type 2 SPD

WEIGHT/DIMENSIONS:

4.30 x 4.10 x 2.30

SPECIFICATIONS:

Service Voltage (3-Phase): 480 VAC Delta or 277/480 VAC Wye

Short Circuit Current Rating (SCCR): 200 kA

Nominal Discharge Current (In): 20kA

Maximum Surge Current: 150,000 amps

Protection Mode:

  • 3 for Delta configuration
  • 6 for Wye configuration (neutral tied to ground)

Maximum Continuous Operation Voltage (MCOV):

  • L-L: 700 VAC
  • L-N: (for Wye configuration only): 350 VAC

VPR:

  • Delta L-L: 2500 VAC
  • Wye L-L: 2500 VAC
  • Wye L-N: 1200 VAC

SPD Type: Type 1 (can also be used in Type 2 applications)

Surge Protection Technology: TFMOV

Input Power Frequency: 50/60 Hz
