Product Description

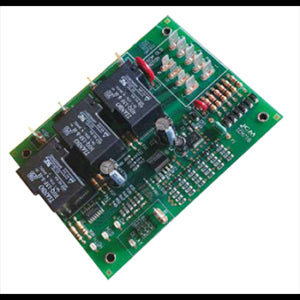

ICM - ICM716
DETAILS:
The ICM716 allows a technician to change out an X13 or SelecTech constant torque ECM rated up to 1 HP with a single phase PSC motor and variable speed control board operating at an optional technician selected purge time.
- Allows an X13 or SelecTec constant torque ECM control to control a Single phase PSC motor
- Eliminates costly ECM repairs
- 3 High power relay outputs for automated speed selection
- 3 LED™s indicate selected speed
- LED indicator illuminates when off delay is active
- User selectable 60, 120, or 180 second off delay
Additional Information
Weight/Dimension Size 4.95 x 3.95
Motor Voltage 120 VAC or 208-240 VAC
Input Control Voltage 24 VAC
Input Frequency 50-60 Hz
Maximum Blower Horse Power 1 HP
