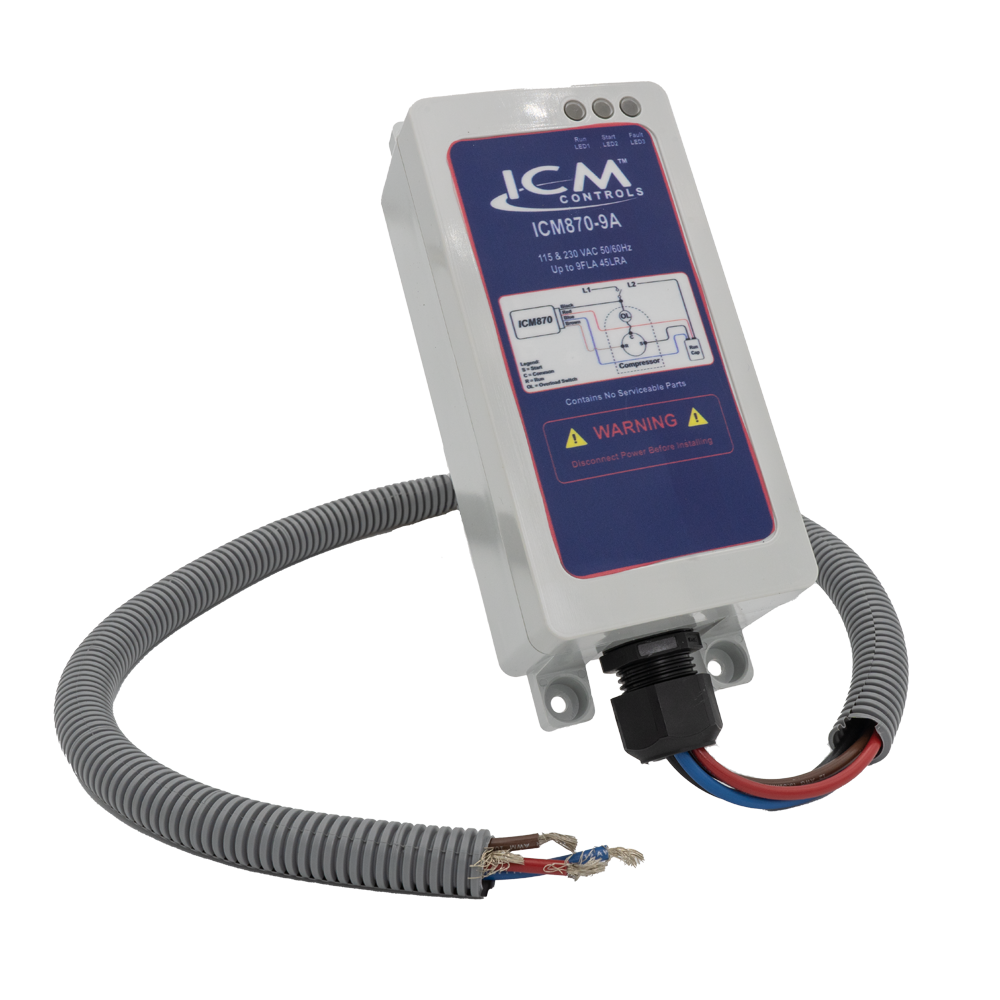

ICM Controls ICM870-9A Soft Start with built-in start capacitor in sealed IP65 Enclosure(Current output: 9A Nominal)

The ICM870 Soft Start is intended for RV, marine, residential and commercial applications. The ICM870 integrates compressor or motor in-rush current over startup time, thus reducing peak current demand on a power supply source by up to 70%.

The ICM870 will monitor system health including voltage, current, compressor startup and integrity. Utilizing a built-in self learning algorithm the ICM870 soft start delivers peak in-rush current per application.

Upon a fault condition, the ICM870 will halt operation and initiate a 3 minute anti-short cycle routine while providing diagnostic fault information by means of an LED indicator.

• Reduces in-rush current by up to 70%
• Over-current protection
• Over/under voltage monitoring
• Built-in start capacitor
• Built-in self-learning algorithm
• LED fault indicators
• Ultrasonic sealed tamper-proof enclosure
• Installation hardware is included

WEIGHT/DIMENSIONS:

7.63 x 3.19 x 2.13

SPECIFICATIONS :-

Semi-Conductor Soft-Start Motor Controller, Form 2, Bypassed Controller

SCCR: 5kA Ue = 240 VAC

Ui = 240 VAC Uimp = 4kv

FCC Class B Pollution degree 3 UL File E340301

UL 60947-4-2 and IEC 60947-4-2

Input:

(L1, L2) 100-240 VAC 50/60Hz

Over voltage limits: 115 VAC nominal = 140 VAC, 240 VAC nominal = 250 VAC

Under voltage limits: 115 VAC nominal = 95 VAC, 240 VAC nominal =195 VAC

Outputs:

Compressor

Solid state/relay

Current: Max. nominal = 9 FLA for ICM870-9A,
16 FLA for ICM870-16A

Over current limits: ICM870-9A = 11.25A,
ICM870-16A = 20A

Environmental:

Ambient temperature: 40°C @ 16 FLA, 8 h duty 50°C @ 16 FLA, Temporary duty F = 30% (3 mins ON and 7 mins OFF), S = 6 (6 cycles per hour)

Storage temperature: -40°F to 149°F (-40°C to 65°C)

Humidity: 0-95% non-condensing

Enclosure: IP65

Dimensions: ICM870-9A/16A (7.60 x 3.20 x 2.10)

Screw Hole Center Points: 7.36 x 2.90
