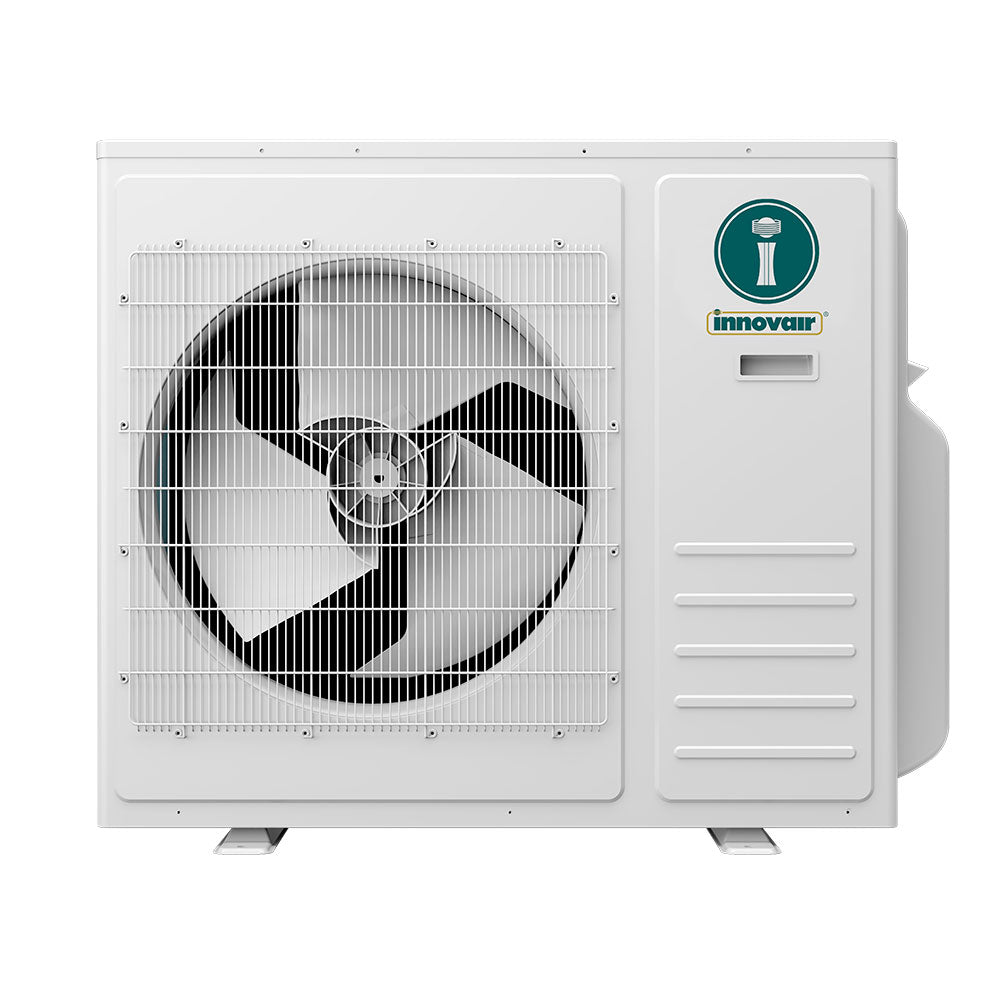

Innovair VOM24H7R3P7 Hyper-Max Multi-Zone Heat Pump Mini Split Units (24000 BTU)

Innovair VOM24H7R3P7 Hyper-Max Multi-Zone Heat Pump Mini Split Units (24000 BTU)

In Stock - 1 (Available by Sat, Dec 07 - Wed, Dec 11)

SKU SKU:kpi038-VOM24H7R3P7

Regular price $1,642.86 USD
Regular price Sale price $1,642.86 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
availability: In stock
capacity: 24000 BTU
category: Heat Pump Condensor
class: 3-Pipe Multi-Zone Condensor Unit
custom_label_2: in-stock
depth: 13
height: 33
manufacturer: Innovair
mpn: VOM24H7R3P7
seer: 21
subcategory: Heat Pump Condensor
type: Hyper-Max Multi-Zone
volts: 208~230V-1Ph-50/60Hz
weight: 159
width: 37

Product Description

Innovair - VOM24H7R3P7

Air suction direction can be altered from rear to bottom suction, giving a choice for multiple types of applications.Hyper Heat assures consistent comfort specialized for extreme climates. Condenser heat output capacity allows the unit to work efficiently as a primary heat source, even when temperature drops to -13°F.Mix and match different types of indoor units which include high wall mounts, cassettes, and/or ducted units.

SLIM DESIGN-The slim duct unit with a thickness of only 7.5in (190mm), makes it applicable for narrow ceiling spaces.Fresh air intake introduces outdoor fresh air into the room to improve air quality.With the 360 degree air flow panel, air is uniformly distributed to every corner of the room.Slim design with body thickness of 8.5 inches (215mm) and the installation thickness of 9.6 inches (245mm) reducing the ceiling height requirement.

With an option for horizontal or vertical swing function, the air flow is distributed evenly, making it feel comfortable at all areas of the room.The Innovair Mini split can cool down an indoor space to a desired, comfortable indoor temperature, even when outside temperatures reach up to 122°F.Innovair Mini splits can be a primary heating source with its ability to operate at cold outdoor temperatures. Stay warm inside while its cold outside.

Features:

  • Variable DC Motor for efficient and quiet operation
  • Compressor with inverter DC can increase the efficiency of the air conditioner
  • Air outside can be led into the room via a connection pipe, which keeps the indoor air fresh and healthy
  • 360° air outlet provides strong air flow circulation to cool or every corner of a room
  • High Efficiency Inverter Technology
  • Dry mode allows to remove excess humidity without changing the temperature
  • Eco Friendly refrigerant for a cleaner environment
  • Operations will self adjust while operating at low sound levels
  • Quickly cools down at higher fan speeds to reach set temperature
  • Stable operations with wide voltage range

Additional Information

Model NameVOM24H7R3P7
Connectionsup to 3 indoor units
Refrigerant TypeR410A
Cooling Capacity-95 ºF(Btu/h)24000
Heating Rated Capacity-47 ºF(Btu/h)24000
Heating Rated Capacity-17 ºF(Btu/h)15400
Heating Maximum Capacity-17 ºF(Btu/h)26000
Heating Maximum Capacity-5 ºF(Btu/h)24000
Cooling-95 ºF(Btu/h)24000(8000~30200)
Heating-47 ºF(Btu/h)24000(5200~37000)
Air Flow CFM-()2350
EER-95 ºF(Btu/Wh)12.5
EER-(W/W)3.66
COP-47 ºF(W/W)3.66
COP-47 ºF(Btu/Wh)12.49
SEER-(Btu/Wh)22
HSPF-(Btu/Wh)11
Noise Level-(dB(A) (Max))59
Guaranteed Operating Cooling Range-(„‰)14~114.8
Guaranteed Operating Heating Range-(„‰)13~75.2
CompressorType-()ROTARY
Power-(V/Hz/Ph)208/230 50/60 1
Power input Cooling-95 ºF(W)1920 (420 ~2640 )
Power input Heating-47 ºF(W)1920 (420 ~4020 )
Rated current Cooling-95 ºF(A)8.7
Rated current Heating-47 ºF(A)8.7
Power Consumption in Stand-by mode-(W)20
Net Dimension (WxHxD)-(inch)37-3/8x33x13-3/8
Net Weight-(lbs)158.7
Package Dimension (WxDxH)-(inch)43-3/4x18-1/8x36-1/4
Gross Weight-(Ibs)169.5
Piping Diameter(Liquid)-(inch)1/4
Piping Diameter(Gas)-(inch)3/8
Piping Max Length(Each)-(ft)66
Piping Max Length( Total)-(ft)197
Piping Max Height-(ft)49
Refrigerant Charge-(oz)81.13
Additional refrigerant-(oz/ft)0.161oz/ft
