category:
Controls
height:
14
manufacturer:
iO HVAC Controls
mpn:
EB-1412
subcategory:
Dampers
type:
Bypass Dampers
width:
12
Product Overview
ACTUATORS ARE INSTALLED ON 2ND DIMENSION

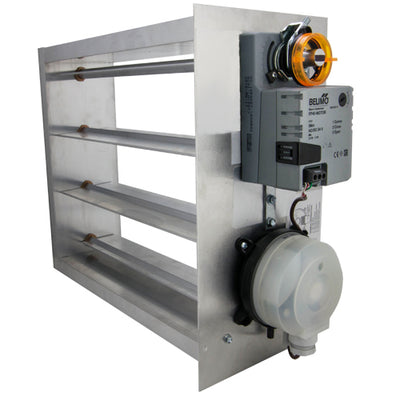

Electronic 14 x 12 Bypass Damper
Height: 14
Width: 12
Total Size: 14 x 12
Actuator Placement on the dimension: 12
Description
EB Series electronic bypass dampers are used to automatically bypass excess air when increases in duct pressure occur due to closing of zone dampers. The EB Series dampers utilize a floating-point actuator along with the iO-SPC static pressure control. The iO-SPC has a fully calibrated setpoint dial for easy setup and adjustment. The iO-SPC maintains the system static pressure by modulating the bypass damper. EB Series electronic bypass dampers are recommended for systems from 0.08” WC up to 1.20” WC of static pressure.
Features and Benefits
- Easy Adjustment
- Many sizes available
- Installation flexibility
- Reduces system noise
- Round and rectangular
- Warranty: 5 years
Additional Information
Item NumberEB-1412
BrandiO HVAC Controls
MotorizedYes
ShapeRectangular
Size (in)14 x 12
Spring ReturnNon-Spring Return
TypeBypass Dampers
