category:
Controls
height:
16
manufacturer:
iO HVAC Controls
mpn:
HD-1608-BM
subcategory:
Dampers
width:
8
Product Overview
ACTUATORS ARE INSTALLED ON 2ND DIMENSION

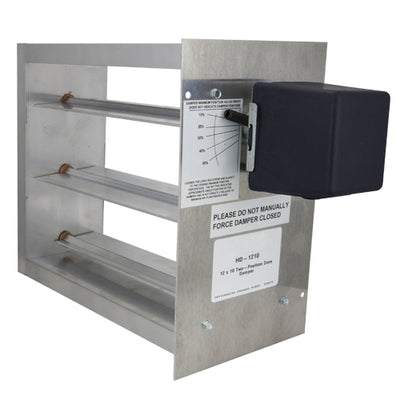

Rectangular 16 x 08 Zone Damper-BM
Height: 16
Width: 8
Total Size: 16 x 08
Actuator Placement on the dimension: 16
The HD Series dampers are extruded aluminum parallel blade dampers with a 24 volt spring return actuator. These dampers are shipped complete and ready for installation. The HD Series dampers can be installed in any position. They are rated for duct systems with less than 1.0” WC. The damper has a simple adjustment for setting the minimum position.
Features and Benefits:
- Compatible with most zone control panels
- Extruded aluminum
- 24 volt synchronous motor
- Quiet operation
- Simple adjustment for setting the minimum position
Warranty: 5 years
Additional Information
Item NumberHD-1608-BM
BrandiO HVAC Controls
MotorizedYes
ShapeRectangular
Size (in)16 x 8
Spring ReturnSpring Return (NO)
TypeRectangular Dampers
