Product Overview
ACTUATORS ARE INSTALLED ON 2ND DIMENSION

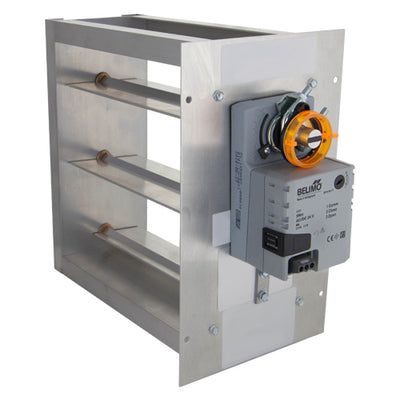

MD Series 12x10 (3) Wire Damper PO/PC
Height: 12
Width: 10
Total Size: 12 x 10
Actuator Placement on the dimension: 12
The MD Series dampers are perfect for use with most zoning systems and recommended for use with our iO-ESP-400 and ESP zone panels. These dampers are shipped complete and ready for installation. The MD Series dampers can be installed in any position. They are rated for duct systems less than 1.0” WC. The MD Series damper has a simple adjustment for setting the minimum position.
Features and Benefits:
- Two-position 24V motor; power close/power open, 3-wire
- Compatible with iO-ESP-400 and iO Zone ESP
- Quiet operation
- Simple adjustment for setting the minimum position
Warranty: 5 years
Specifications
Construction Round: 24-gauge steel shell
Rectangular: extruded aluminum
Sizes Round: 4” to 20”
Rectangular: 6” x 6” to 30” x 20” side-mount and bottom-mount
Damper Actuator Type 24VAC, 2.5VA, three-wire power open/power close
Timing 60 seconds
