Product Overview

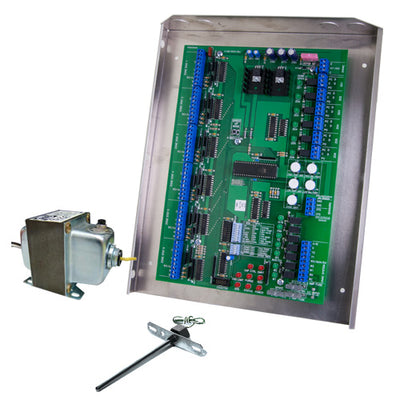

Six Zone (3H/2C) zone panel Kit
Description
The ZP6 is a 6 zone, two-position forced air zone control panel that can be expanded to 12 zones. The panel can be used with single-stage, multi-stage, heat pump and dual fuel equipment with up to 3 stages of heating and 2 stages of cooling. Slide switch configuration makes setup quick and easy. A wide range of control options provide ultimate application flexibility including adjustable high/low limits, adjustable high/low balance point, stage timing, capacity control and priority cooling control.
Features and Benefits
- 6 zones expandable up to 12
- Auto changeover
- Cooling priority or majority wins
- Twenty minute time share option
- LED status indication
- On-board adjustable high and low limits and balance points
- Staging by zone thermostat or adjustable stage timer
- Purge cycle option
- For use with 2 or 3 wire dampers
- Competitively priced
- Warranty: 10 years
Additional Information
Item NumberZP6-KIT
BrandiO HVAC Controls
TypeZoning Panel
