Product Description

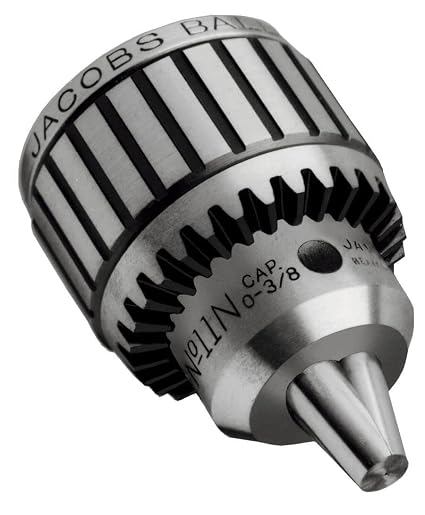

JACOBS CHUCK® - 403-30233
| Manufacturer Part Number | 30233 |
|---|---|
| GTIN | |
| Family | Jacobs Ball Bearing Chucks |
| Manufacturer | Apex Tool Group |
| Hazmat | N |
| Country of Origin | TW |
| Features | 1-piece fluted sleeve construction Ball trust bearing reduces friction in chuck closing mechansim Through-hardened sleeve teeth, nose, and keyholes for wear resistance Maximizes gripping force and drilling accuracy Treated to ensure thread life and high gripping surface hardness Jaws center-ground for absolute straightness and alignment For heavy-duty, close tolerance production drilling For production drilling equipment, jig borers, milling machines, lathes, and radials |
| Bit/Blade Mounting Size [Max] | 3/4 in |
| Bit/Blade Mounting Size [Min] | 1/8 in |
| Capacity [Max] | 3/4 in (mild steel) |
| Capacity [Min] | 1/8 in (mild steel) |
| Finish | Fluted Sleeve |
| Housing Diam | 3 in |
| Key Size | K4 |
| Mechanism | Ball Bearing |
| Mounting | Jacobs 4JT Female |
| Overall Length [Max] | 5.12 in |
| Overall Length [Min] | 3.95 in |
| Type | Keyed |
| Wt. | 66 oz |
