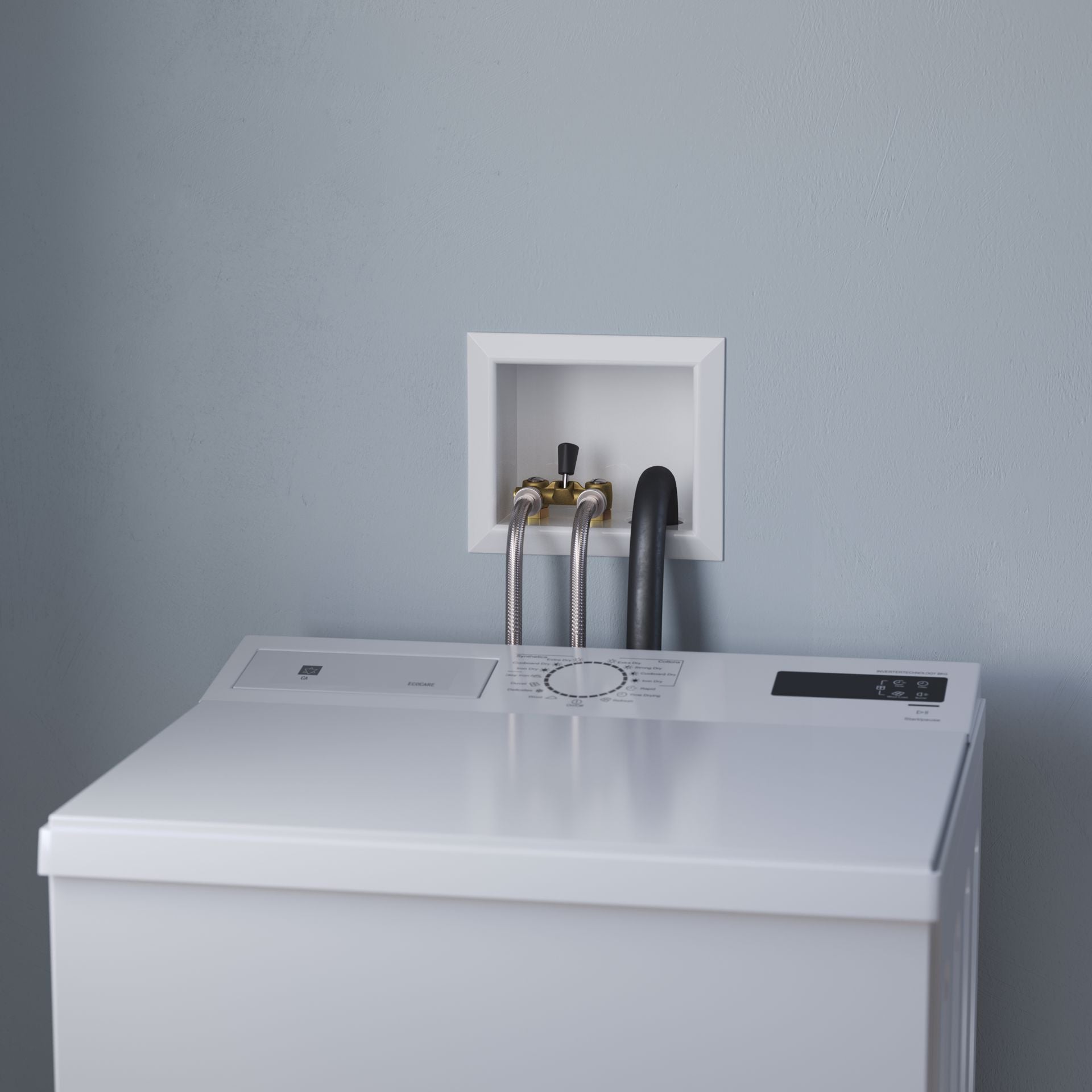

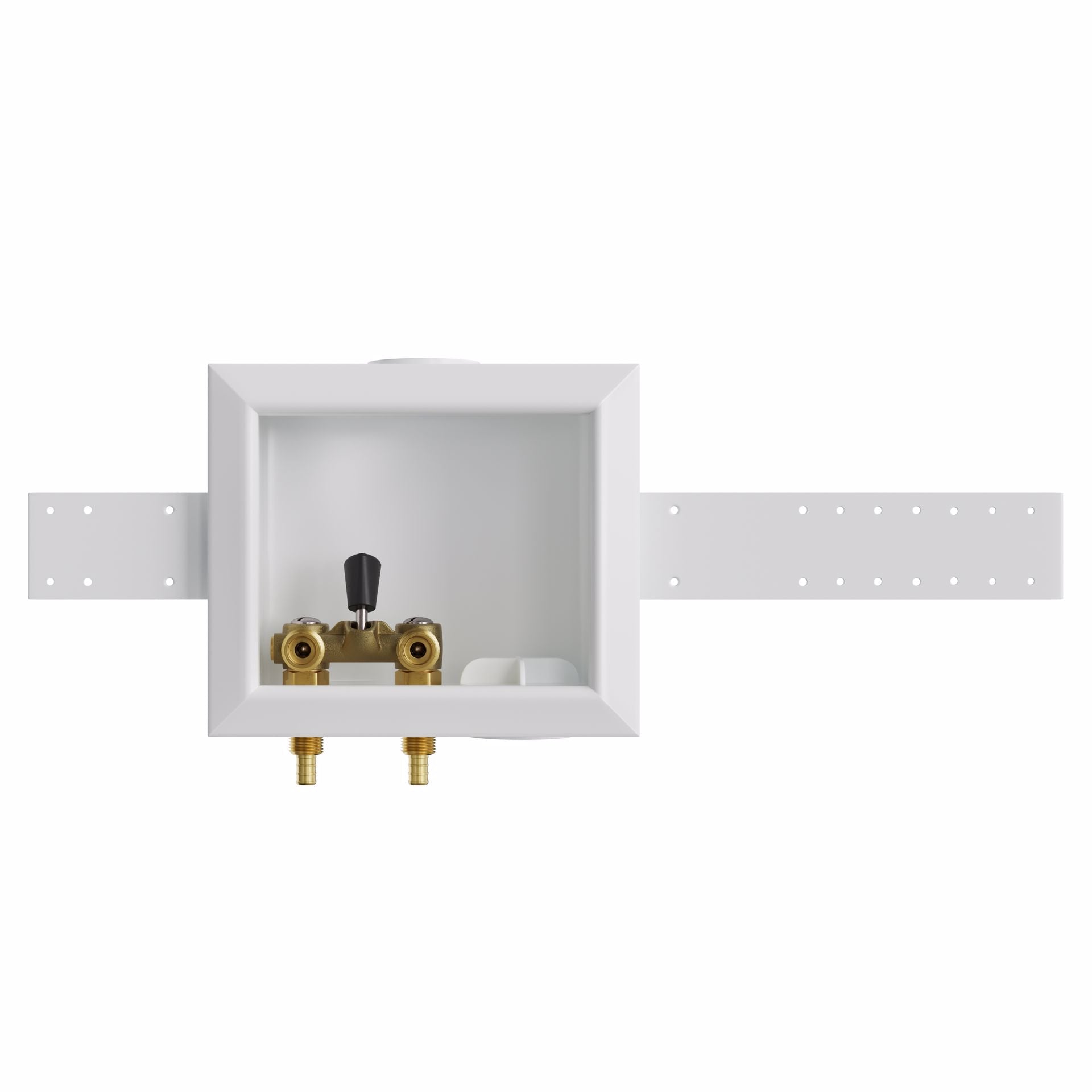

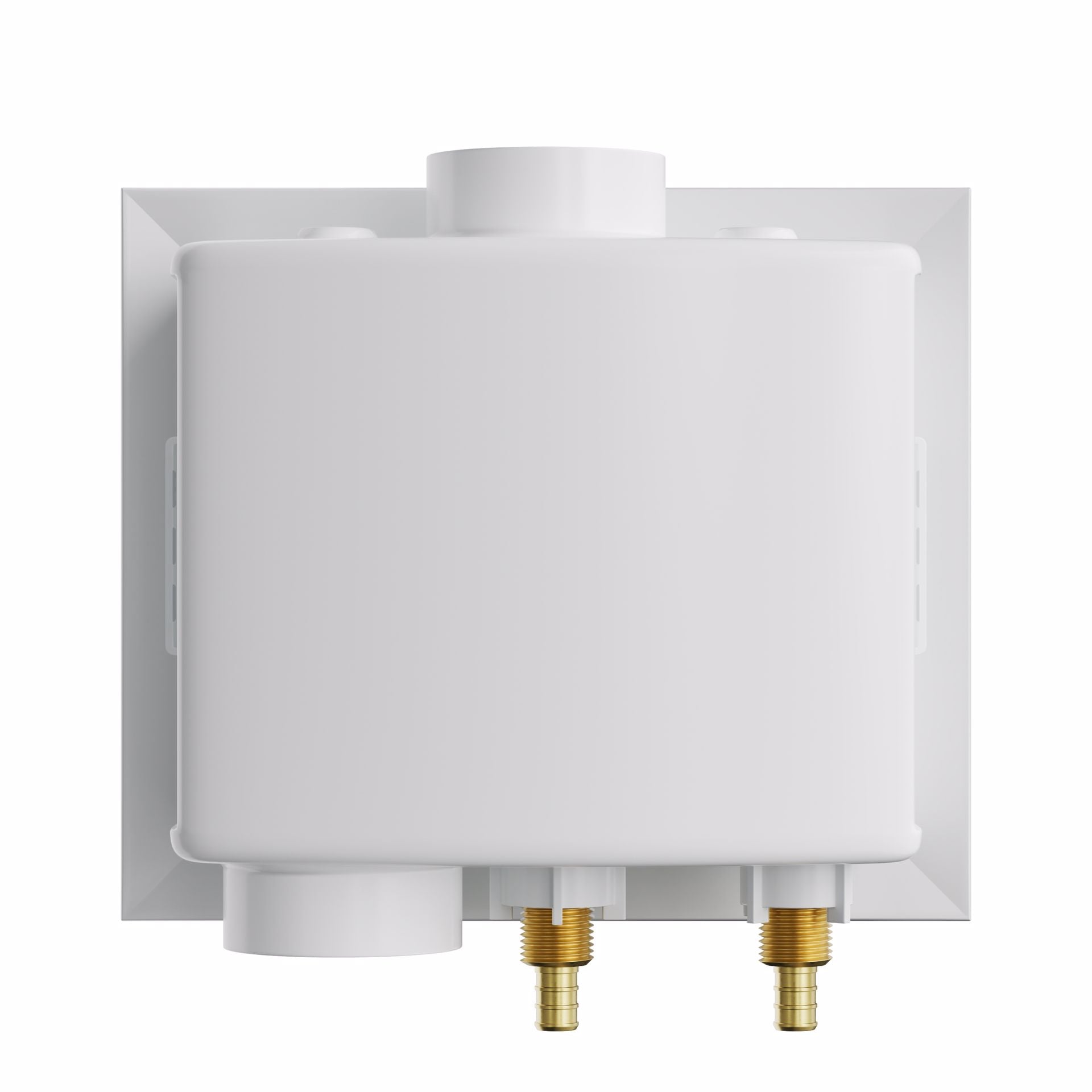

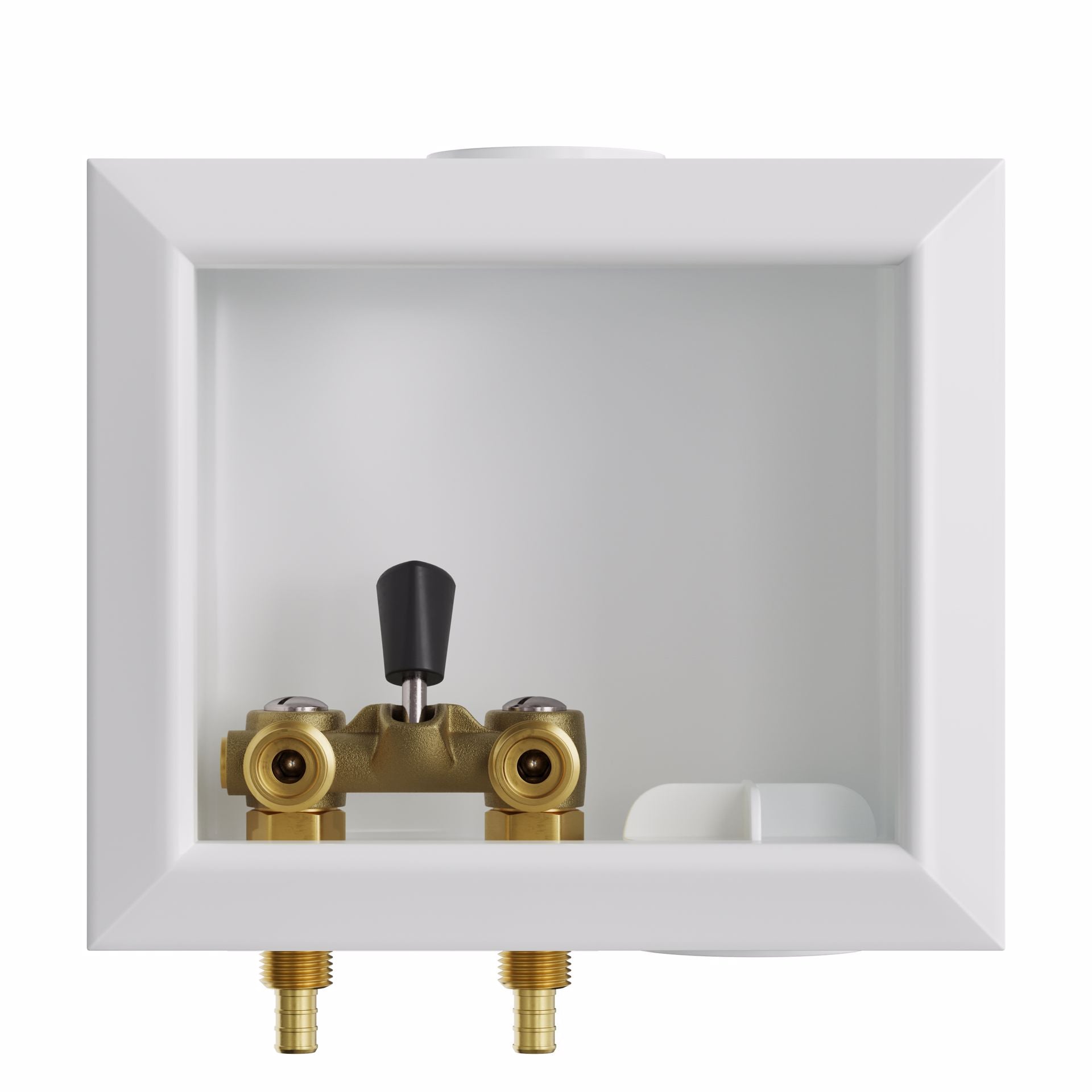

Jones Stephens - B05753 This Jones Stephens Washing Machine Outlet Box is designed with a single lever to provide convenient and quick water supply shut-off access in the event of a leak or broken hose. Compact in design, this right outlet box features a 1/2” PEX F1807 connection and includes all necessary parts for installation and testing. All parts are designed with quality engineering and construction to be durable and reliable to meet Jones Stephens’ highest quality standards.
Additional Information
Drain Location:Right
Country of Origin:Taiwan
Inlet Connection Size:1/2"
Outlet Connection Size:2"
Size:1/2"
Valve Type:Ball
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Max Temperature:160°F
Max Pressure:125 psi
Temperature Range:40°F - 160°F
Working Pressure:20 - 125 psi
Working Temperature:120°F
Approved Applications:Water
Color:White
Compatible Pipe:PEX
Compatible Pipe Size:1/2"
Outlet Location:Right Outlet
Warranty:1 Year
AB100 Certified:N/A
CEC Listed:No
cUPC Listed:Yes
UPC Listed:Yes
End Connections:F1807 Crimp PEX
ANSI Standard:ANSI 61-2022
ASME Standard:ASME A112.18.1-2018
CEC Compliant:No
IAPMO Listed:Yes
IAPMO Standard:IAPMO PS 54-2021
Lead Law Compliant:Yes
MASS Approved:No
NSF Certified:No
NSF Standard:NSF 61-2022
SDWA Compliant:Yes
HAZMAT:No
CAN Standard:CAN 61-2022
