category:
Plumbing
manufacturer:
Jones Stephens
mpn:
B05944
subcategory:
Washing Machine & Dryer Installation
type:
Supply Boxes
Product Description

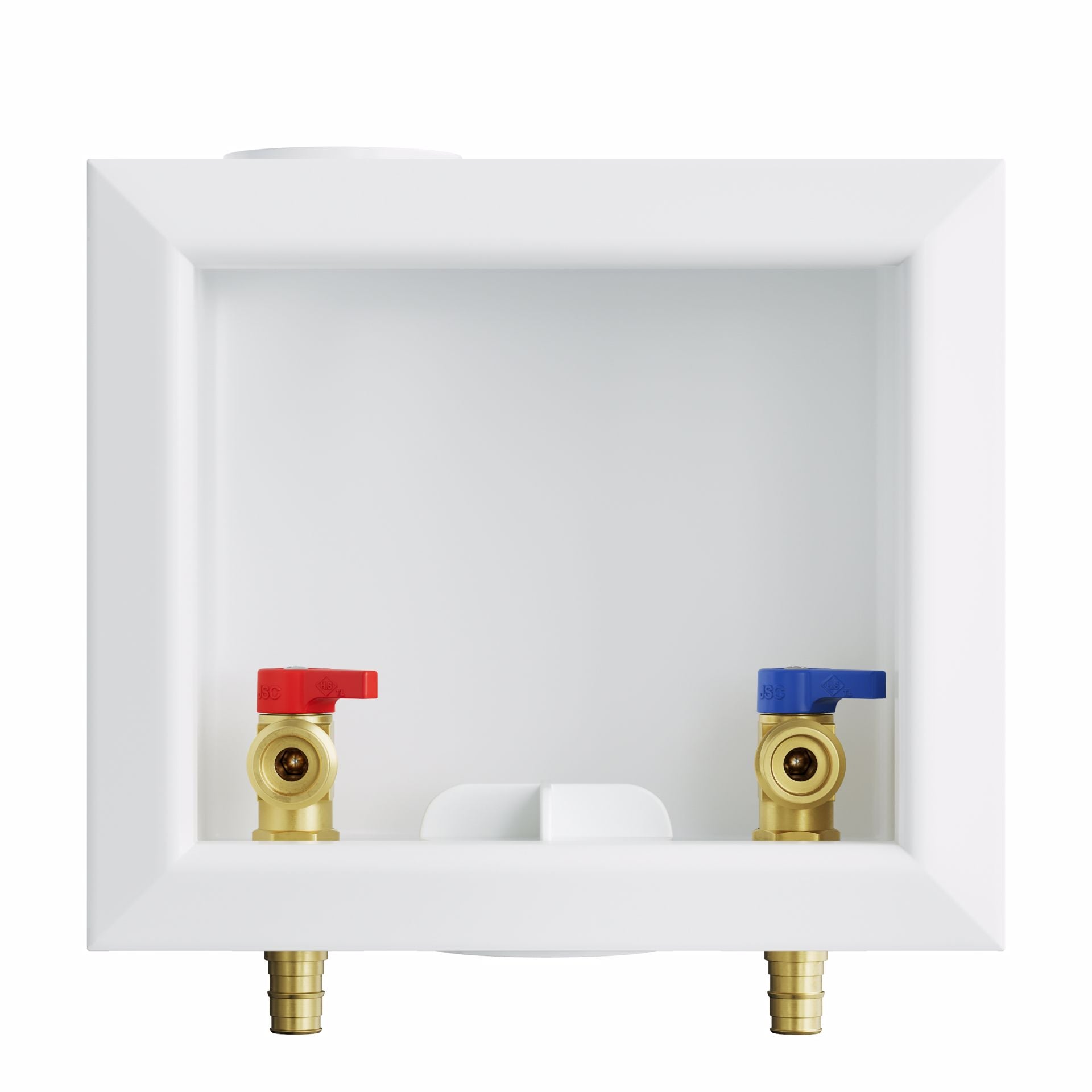

Jones Stephens - B05944 This Jones Stephens Washing Machine Outlet Box is designed with quarter-turn valves to provide convenient and quick water supply shut-off access in the event of a leak or broken hose. Compact in design, this center outlet box features a 1/2” PEX F1960 connection and includes all necessary parts for installation and testing. All parts are designed with quality engineering and construction to be durable and reliable to meet Jones Stephens’ highest quality standards.
- Compact design
- Quarter-turn valves; designed to fit cold expansion PEX fitting for PEX-A tubing only
- Easy to remove test plug
- Can be converted to a right outlet by rotating box 180°
- Meets or exceeds IAPMO PS 54-2015, ASME A112.18.1-2018, and CSA B125.1-18
- cUPC listed
Additional Information
Drain Location:Center
Country of Origin:Taiwan
Inlet Connection Size:1/2"
Outlet Connection Size:2"
Size:1/2"
Valve Type:Ball
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Max Temperature:160°F
Max Pressure:125 psi
Temperature Range:40°F - 160°F
Working Pressure:20 - 125 psi
Working Temperature:120°F
Approved Applications:Water
Color:White
Compatible Pipe:PEX
Compatible Pipe Size:1/2"
Outlet Location:Center Outlet
Warranty:1 Year
AB100 Certified:N/A
CEC Listed:No
cUPC Listed:Yes
UPC Listed:Yes
End Connections:F1960 Expansion PEX
ANSI Standard:ANSI 61-2022
ASME Standard:ASME A112.18.1-2018
CEC Compliant:No
IAPMO Listed:Yes
IAPMO Standard:IAPMO PS 54-2021
Lead Law Compliant:Yes
MASS Approved:No
NSF Certified:No
NSF Standard:NSF 61-2022
SDWA Compliant:Yes
HAZMAT:No
CAN Standard:CAN 61-2022
