category:
Fittings & Valves
manufacturer:
Jones Stephens
mpn:
C76090LF
subcategory:
Fittings
type:
PEX F1807 Fittings
Product Overview

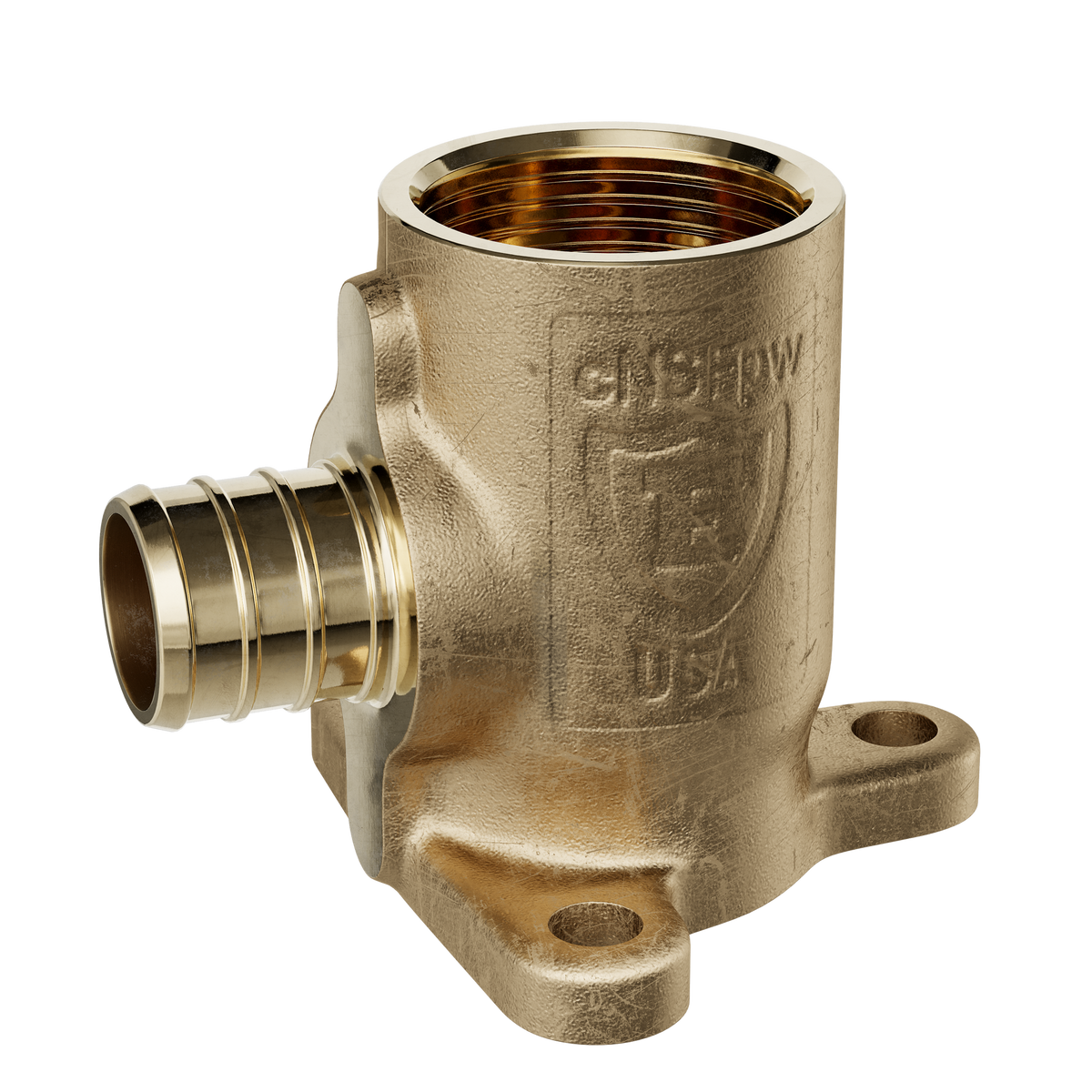

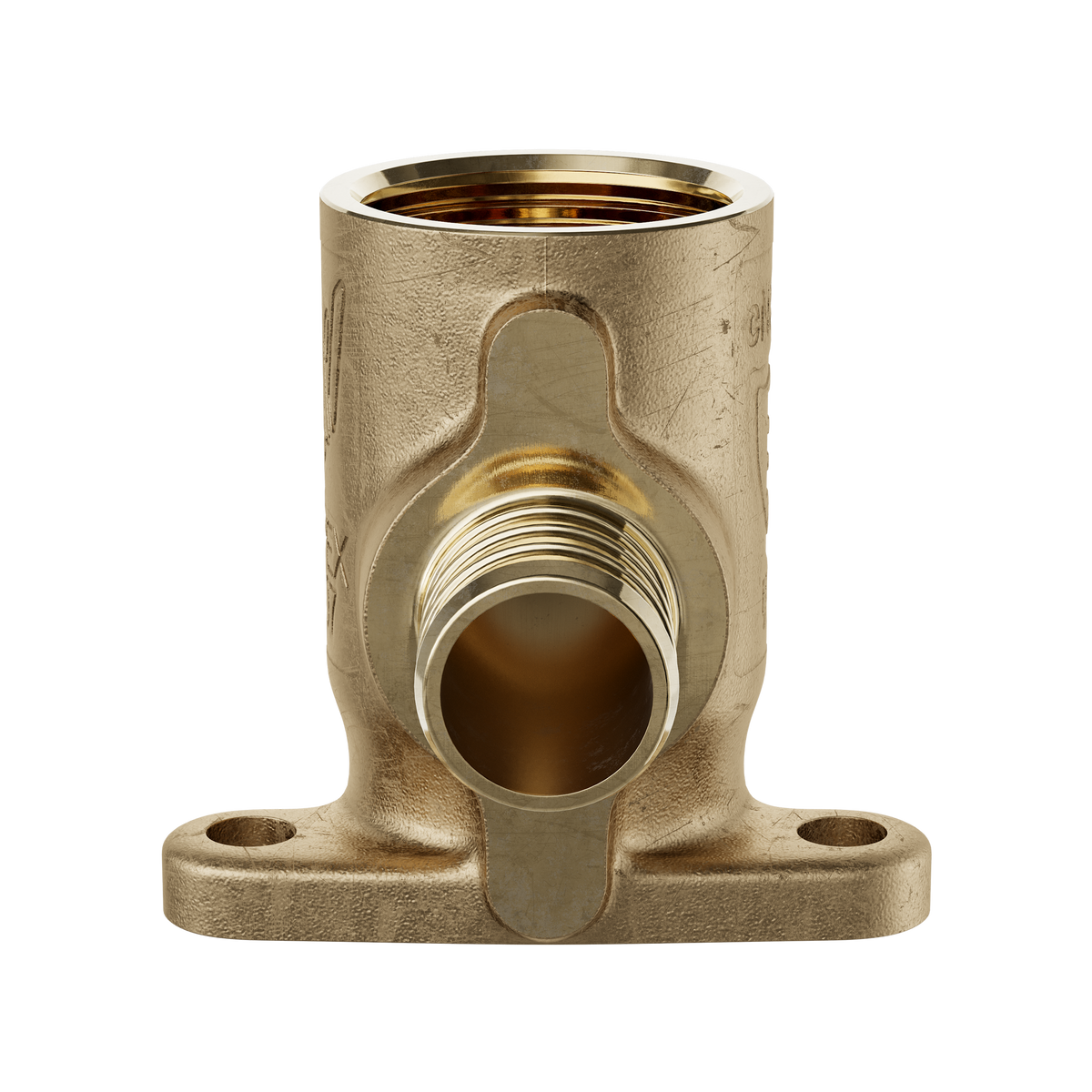

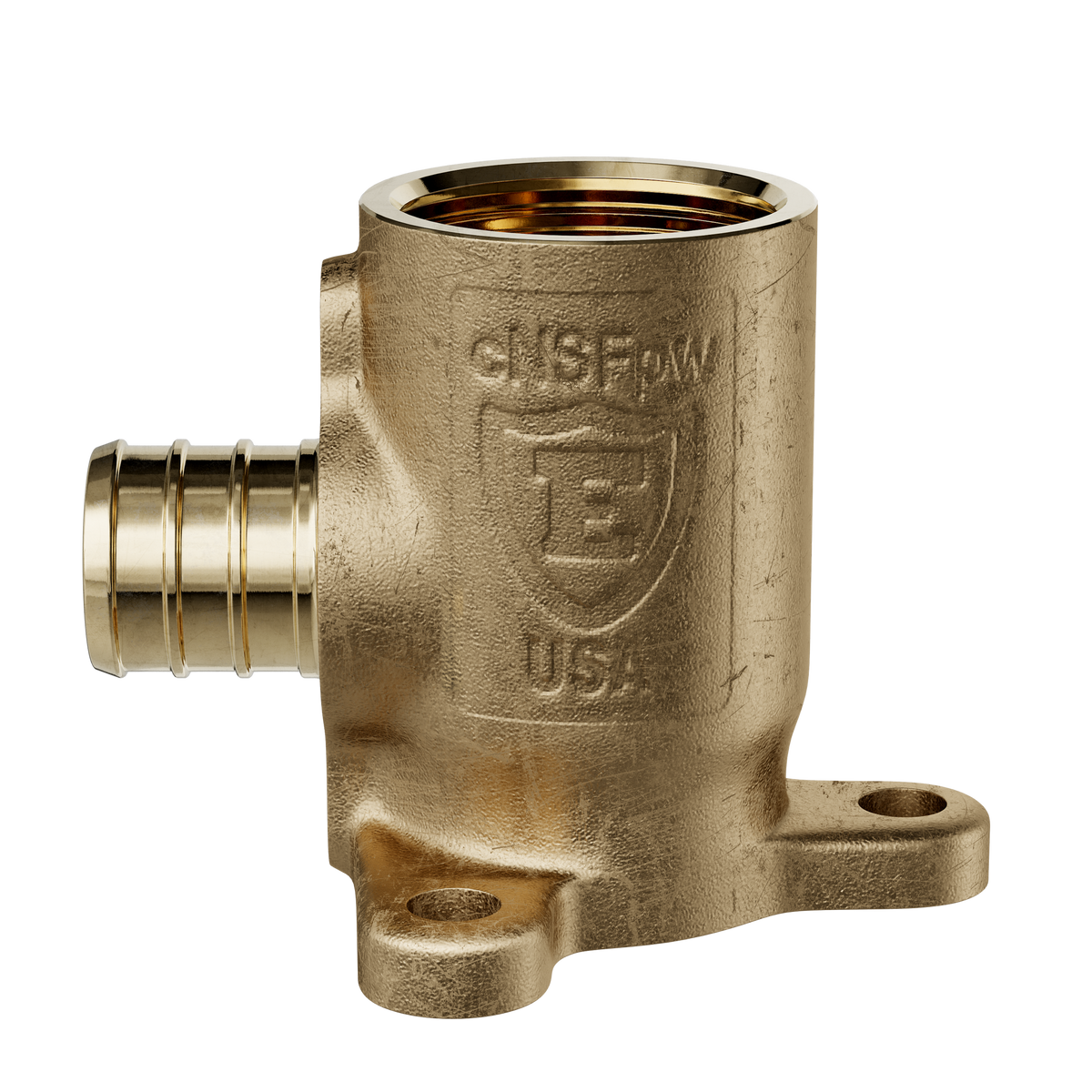

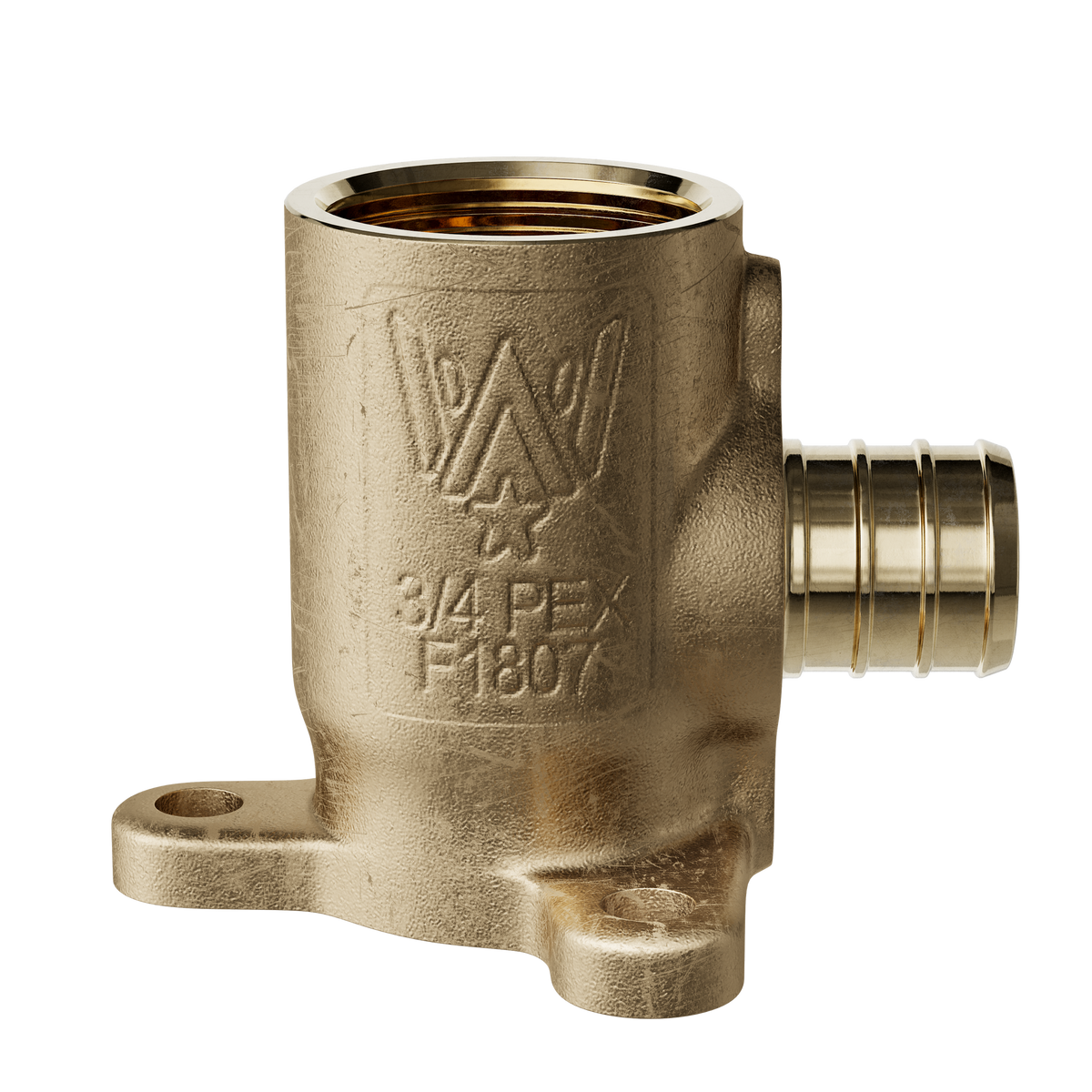

Manufactured to the highest industry standards, Jones Stephens' F1807 lead-free brass crimp fittings provide precise, leak-free connections. The secure and reliable crimp fitting method provides full, immediate strength upon installation, with 360-degree uniform pressure. Approved for use with PEX piping.
- Simple and dependable plumbing connection
- Easy installation
- Leak-proof connections
- Lead-free brass
- Certified to ASTM F1807-2019b
- Certified to NSF/ANSI/ CAN 372-2022, NSF/ANSI/CAN 61-2021, and NSF/ANSI 14-2016a
- Certified to CSA B137.5-2017
- cUPC listed
- Lead law compliant
Additional Information
Country of Origin:China
Material:Brass
Size:3/4" x 3/4"
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Max Temperature:180°F
Max Pressure:100 psi
Temperature Range:33°F - 180°F
Working Pressure:100 psi
Working Temperature:180°F
Approved Applications:Water
Color:Brass
Compatible Pipe:Compatible Pipe:
PEX-BPEX-A
Compatible Pipe Size:3/4"
Warranty:11-25 Year
ADA Compliant:No
CEC Listed:No
cUPC Listed:Yes
UPC Listed:No
End Connections:End Connections:
Crimp PEXFIP
ANSI Standard:ANSI Standard:
ANSI Standard:ANSI 14-2016a
ANSI 61-2021ANSI 372-2022
ASTM Standard:ASTM F1807-2019b
CEC Compliant:No
IAPMO Listed:Yes
Lead Law Compliant:Yes
MASS Approved:No
NSF Certified:No
NSF Standard:NSF Standard:
NSF Standard:NSF 14-2016a
NSF 61-2021NSF 372-2022
SDWA Compliant:Yes
HAZMAT:No
CAN Standard:CAN Standard:
CAN 61-2021CAN 372-2022
