Product details
category: Plumbing
manufacturer: Jones Stephens
mpn: C76571LF
subcategory: Water Supplies, Stops & Accessories
type: Supply Stops

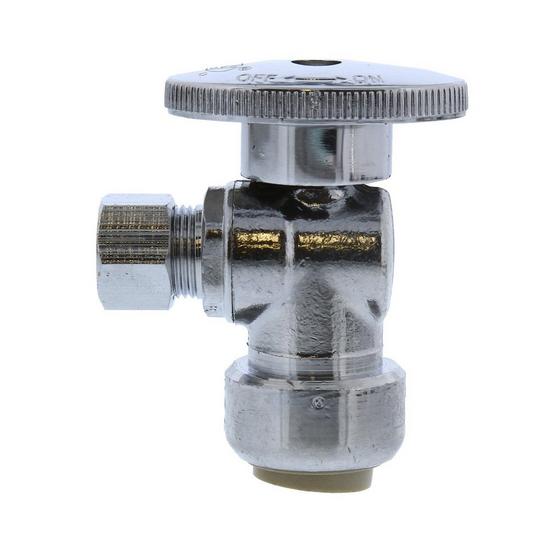

Product Overview
Jones Stephens PlumBite® push on fittings are an extremely fast method of joining Copper, CPVC, PE-RT or PEX piping. No soldering, glue, heat or tools are required to join the pipe. Simply insert the pipe into the fitting and the stainless steel gripper ring bites the pipe holding it tightly. A rugged EPDM O-ring seals the connection. Disassembly is just as fast using the optional disassembly tool, so fittings can be easily removed and re-used. PlumBite push on fittings are designed to connect pipe with ease and confidence while saving time on the job site. Perfect for service and repair jobs!
- Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
- No soldering, glue, heat or tools required to join the pipe
- Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
- Maximum temperature of 180°F and maximum pressure of 200 PSI
- Standards/Certifications: NSF/ANSI/CAN 61: Q = 0.5, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1, UPC, cUPC by IAPMO
- Lead Free
- 2 year warranty
Additional Information
Country of Origin:China
Material:Brass
Size:1/2" x 3/8"
Valve Operator:Lever Handle
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Max Temperature:180°F
Max Pressure:200 psi
Temperature Range:40°F -140°F
Working Temperature:40°F - 140°F
Approved Applications:Potable Water
Color:Chrome Plated
Gasket Material:EPDM, Peroxide Cured
Turn Type:Quarter-Turn
Warranty:2 Year
AB100 Certified:N/A
CEC Listed:No
cUPC Listed:Yes
UPC Listed:Yes
End Connections:End Connections:
PushCompression
ANSI Standard:ANSI Standard:
ANSI Standard:ANSI 372-2022
ANSI 61-2021: Q 0.5
ASME Standard:ASME A112.18.1-2018
CEC Compliant:No
CSA Listed:No
IAPMO Listed:Yes
Lead Law Compliant:Yes
MASS Approved:Yes
NSF Certified:No
NSF Standard:NSF Standard:
NSF Standard:NSF 372-2022
NSF 61-2021: Q 0.5
SDWA Compliant:Yes
HAZMAT:No
CAN Standard:CAN Standard:
CAN 372-2022CAN 61-2021: Q
