category:
Fittings & Valves
manufacturer:
Jones Stephens
mpn:
C77447LF
subcategory:
Fittings
type:
PlumBite Push-On Fittings
Product Overview

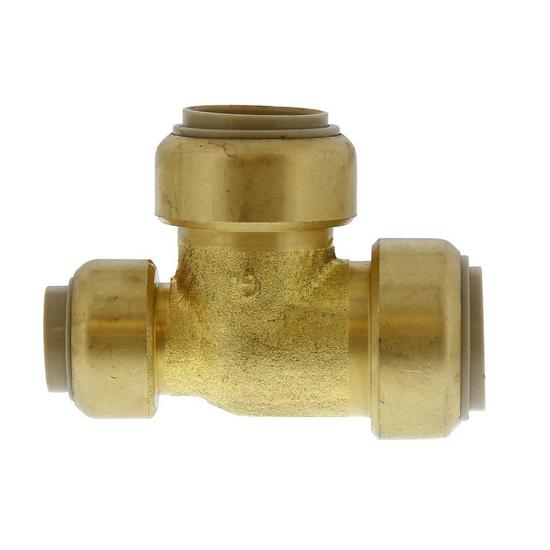

Jones Stephens PlumBite® push on fittings are an extremely fast method of joining Copper, CPVC, PE-RT or PEX piping. No soldering, glue, heat or tools are required to join the pipe. Simply insert the pipe into the fitting and the stainless steel gripper ring bites the pipe holding it tightly. A rugged EPDM O-ring seals the connection. Disassembly is just as fast using the optional disassembly tool, so fittings can be easily removed and re-used. PlumBite push on fittings are designed to connect pipe with ease and confidence while saving time on the job site. Perfect for service and repair jobs!
- Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
- No soldering, glue, heat or tools required to join the pipe
- Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
- Maximum temperature of 180°F and maximum pressure of 200 PSI
- Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, NSF/ANSI 14, ASSE 1061, UPC, cUPC by IAPMO
- Lead Free
- 25 year warranty
- Individually packaged
Additional Information
Country of Origin:China
Material:Brass
Size:3/4" x 1/2" x 3/4"
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Fits Pipe Size:3/4"
Max Temperature:180°F
Max Pressure:200 psi
Temperature Range:40°F -140°F
Working Temperature:40°F - 140°F
Approved Applications:Potable Water
Color:Rough Brass
Gasket Material:EPDM, Peroxide Cured
Warranty:25 Year
AB100 Certified:N/A
CEC Listed:No
cUPC Listed:Yes
UPC Listed:Yes
End Connections:Push
ANSI Standard:ANSI Standard:
ANSI Standard:ANSI 372-2022
ANSI 61-2021ANSI 14-2010a
ASSE Standard:ASSE 1061-2020
CEC Compliant:No
CSA Listed:No
IAPMO Listed:Yes
Lead Law Compliant:Yes
MASS Approved:Yes
NSF Certified:No
NSF Standard:NSF Standard:
NSF Standard:NSF 372-2022
NSF 61-2021NSF 14-2010a
SDWA Compliant:Yes
HAZMAT:No
CAN Standard:CAN Standard:
CAN 372-2022CAN 61-2021
