category:
Fittings & Valves
manufacturer:
Jones Stephens
mpn:
C77469LF
subcategory:
Valves
type:

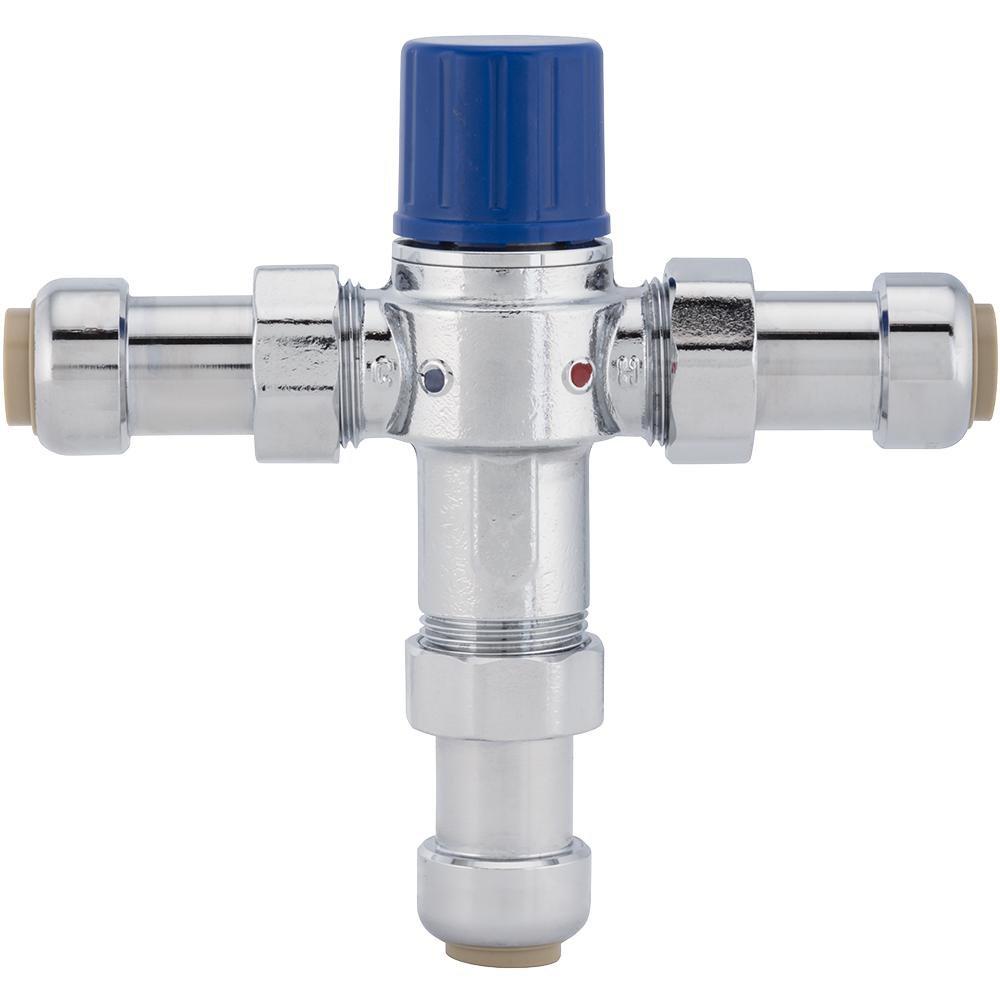

PlumBite Push-On Valves
Product Overview
Jones Stephens PlumBite® push on fittings are an extremely fast method of joining Copper, CPVC, PE-RT or PEX piping. No soldering, glue, heat or tools are required to join the pipe. Simply insert the pipe into the fitting and the stainless steel gripper ring bites the pipe holding it tightly. A rugged EPDM O-ring seals the connection. Disassembly is just as fast using the optional disassembly tool, so fittings can be easily removed and re-used. PlumBite push on fittings are designed to connect pipe with ease and confidence while saving time on the job site. Perfect for service and repair jobs!
- Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
- No soldering, glue, heat or tools required to join the pipe
- Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
- Maximum temperature of 195°F and maximum pressure of 125 PSI
- Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASSE 1070/ASME A112.1070/CSA B1 25.70-15, ASSE 1017, ASSE 1069 by CSA and ASSE 1069, UPC by IAPMO
- Lead Free
- 5 year warranty
- Individually packaged
Additional Information
Country of Origin:China
Material:Brass
Size:3/4"
Valve Body Material:Brass
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Fits Pipe Size:3/4"
Max Temperature:195°F
Max Pressure:125 psi
Temperature Range:40°F - 140°F
Working Temperature:40°F - 140°F
Approved Applications:Potable Water
Color:Rough Brass
Gasket Material:EPDM, Peroxide Cured
Warranty:5 Year
AB100 Certified:N/A
CEC Listed:No
cUPC Listed:No
UPC Listed:Yes
End Connections:Push
ANSI Standard:ANSI Standard:
ANSI 372-2016ANSI 61-2017
ASME Standard:ASME A112.1070-2015
ASSE Standard:ASSE Standard:
ASSE Standard:ASSE 1069-2005
ASSE 1017-2009ASSE 1070-2015
CEC Compliant:No
CSA Listed:Yes
IAPMO Listed:Yes
Lead Law Compliant:Yes
MASS Approved:Yes
NSF Certified:No
NSF Standard:NSF Standard:
NSF 372-2016NSF 61-2017
SDWA Compliant:Yes
HAZMAT:No
