category:
Plumbing
manufacturer:
Jones Stephens
mpn:
D05111
subcategory:
Water Heater Parts & Accessories
type:
Tankless Water Heaters

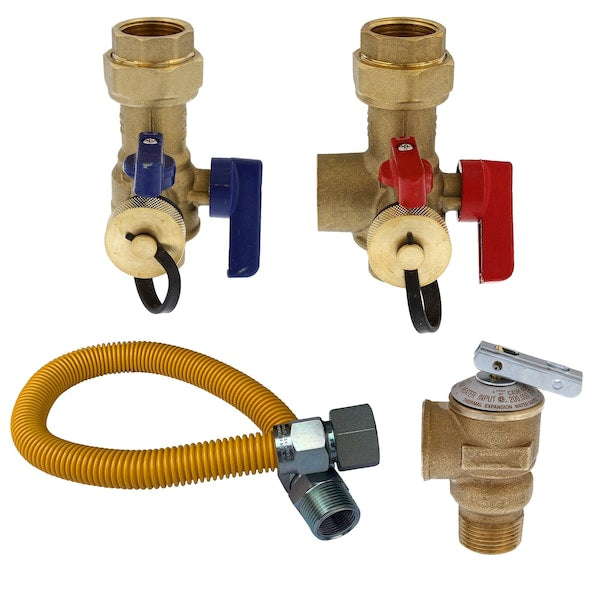

Jones Stephens - D05111 This tankless water heater kit contains hot and cold water valves, a pressure relief valve, and a gas connector. Identifying hot and cold water systems is made simple with the valves’ color-coded red and blue handles. Their strong, lead law compliant, forged brass construction reduces the risk of pinhole leaks, and their stems are blowout-proof – ensuring system durability and safety. The gas connector is constructed of yellow coated corrugated stainless steel to provide strength and longevity.
- ¾” valve size
- Forged brass
- Sweat connection
- Leak-free
- Includes pressure relief valve
- Includes 1” OD (3/4” ID) X 24” long, ¾” male pipe thread X ¾” female pipe thread yellow coated corrugated stainless steel gas connector
- Lead law compliant
- cUPC and IAPMO approved (components individually certified)
- Meets NSF/ANSI/CAN 372-2022, NSF/ANSI/CAN 61-2021, NSF/ANSI 14-2010a, and IAPMO/ANSI Z1157-2014e1 standards
Additional Information
Inlet Connection Size:3/4"
Size:3/4"
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Max Temperature:140°F
Max Pressure:150 psi
Temperature Range:33°F-120°F
Working Pressure:80 psi
Working Temperature:120°F
Approved Applications:Potable Water
Warranty:1 Year
AB100 Certified:N/A
cUPC Listed:Yes
ANSI Standard:ANSI Standard:
ANSI Standard:ANSI Standard:
ANSI 14-2010aANSI 61-2021
ANSI 372-2022ANSI Z1157-2014e1
ASME Standard:A112.4.14-2022
IAPMO Listed:Yes
IAPMO Standard:IAPMO Z1157-2014e1
Lead Law Compliant:Yes
NSF Standard:NSF Standard:
NSF Standard:NSF 14-2010a
NSF 61-2021NSF 372-2022
SDWA Compliant:Yes
HAZMAT:No
CAN Standard:CAN Standard:
CAN 61-2019CAN 372-2022
