category:
Drainage Products
manufacturer:
Jones Stephens
mpn:
D50134
subcategory:
Shower Drains
type:
Assembled Shower Drains
Product Description

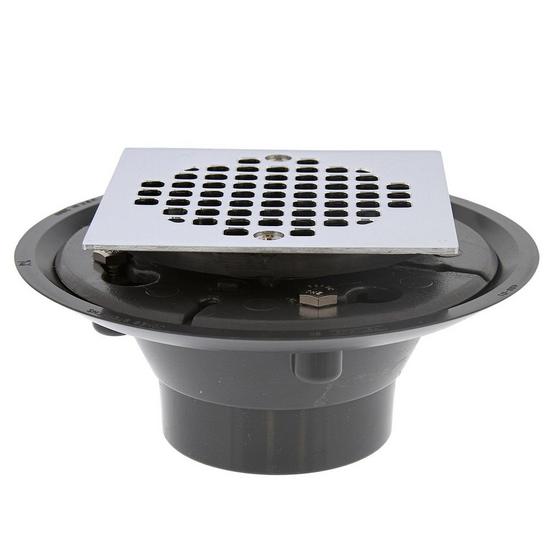

Jones Stephens - D50134 Jones Stephens’ 2" x 3" PVC Shower Drain with 2" PVC Spud and 4" Square Chrome Plated Cast Strainer is the trusted, professional choice for your shower or floor drain installation. This drain comes with a square screw-in chrome plated cast strainer. It has a low profile for first and second floor installations, and its beveled edge allows for recessed installation. It comes complete with dual weep holes and a recessed sump area for added drainage. Its reversible clamping ring allows for an additional half inch of height adjustment, and its square strainer allows for easier tiling on the floor. Use the D50998 tailpiece extension when additional height is needed.
- Fits over 2” or inside 3” Schedule 40 DWV pipe
- Comes with square screw-in chrome plated cast strainer
- Durable gray PVC spud to camouflage dirt and soap scum
- Ability to use a snap-in or screw-in strainer
- Beveled edge allows for recessed installation
- Reversible clamping ring for additional 1/2" height adjustment
- Brass inserts ensure secure clamping of membrane
- Dual weep holes
- Recessed sump area for added drainage
- Replacement strainer - C60812
- Square strainer allows for easier tiling on floor
Additional Information
Cover Finish:Chrome Plated
Cover Shape:Square
Pan Size:6-1/2"
Spud Location:Top
Material:PVC
Size:2" x 3"
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
OD:6-1/2"
Fits Pipe Size:2" x 3"
Max Temperature:140°F
Temperature Range:140°F
Working Pressure:14.2 psi
Working Temperature:140°F
Color:Chrome Plated
Cover Size:4"
Primer Tapped:No
AB100 Certified:N/A
ADA Compliant:No
MASS Approved:No
HAZMAT:No
