category:
PEX Plumbing System
manufacturer:
Jones Stephens
mpn:
F76050
subcategory:
Fittings
type:
PEX F1960 Fittings

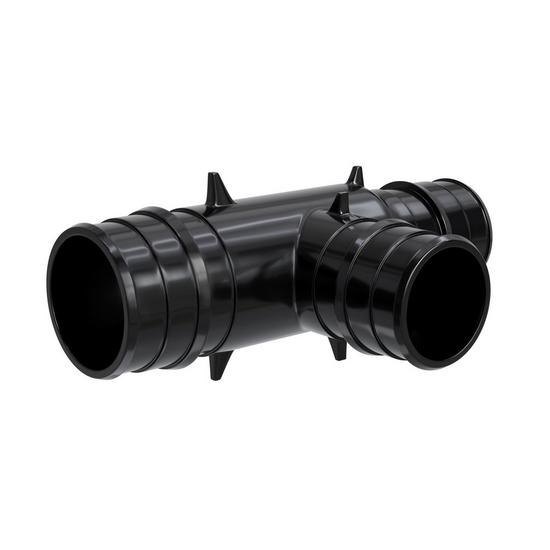

Product Overview
Manufactured to the highest industry standards, Jones Stephens' F1960 cold expansion fittings provide precise, secure, and leak-free connections. Made with high-performance poly material, F1960 cold expansion fittings are corrosion and chlorine/chemical resistant – making them a great fit for aggressive water environments. Approved for use with PEX-A piping.
- Simple and dependable plumbing connection
- Easy installation
- Leak-proof connections
- Poly construction
- Can be used with F1960 PEX rings
- Tested and certified to ASTM F1960-2018a and ASTM F877-2020
- Certified to NSF/ANSI/CAN 61-2022, NSF/ANSI 14-2016a, and NSF/ANSI/CAN 372-2022
- Certified to CSA B137.5-2020
- cUPC listed
- Sold in carton quantities only
Additional Information
Country of Origin:Taiwan
Material:Poly
Size:1-1/2" x 1-1/4" x 1-1/4"
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Fits Pipe Size:1-1/2" x 1-1/4" x 1-1/4"
Max Temperature:180°F
Pipe/Tubing Size:1-1/2" x 1-1/4" x 1-1/4"
Max Pressure:150 psi
Temperature Range:33°F - 180°F
Working Pressure:150 psi
Working Temperature:180°F
Approved Applications:Water
Color:Black
Compatible Pipe:PEX-A
Compatible Pipe Size:Compatible Pipe Size:
1-1/2"1-1/4"
Warranty:11-25 Year
ADA Compliant:No
CEC Listed:No
cUPC Listed:Yes
UPC Listed:No
End Connections:Expansion PEX
ANSI Standard:ANSI Standard:
ANSI Standard:ANSI 14-2016a
ANSI 61-2022ANSI 372-2022
ASTM Standard:ASTM Standard:
ASTM F877-2020ASTM F1960-2018a
CEC Compliant:No
IAPMO Listed:Yes
Lead Law Compliant:Yes
MASS Approved:No
NSF Certified:No
NSF Standard:NSF Standard:
NSF Standard:NSF 14-2016a
NSF 61-2022NSF 372-2022
SDWA Compliant:Yes
HAZMAT:No
CAN Standard:CAN Standard:
CAN 61-2022CAN 372-2022
