category:
PEX Plumbing System
manufacturer:
Jones Stephens
mpn:
F76071
subcategory:
Fittings
type:
PEX F1960 Fittings

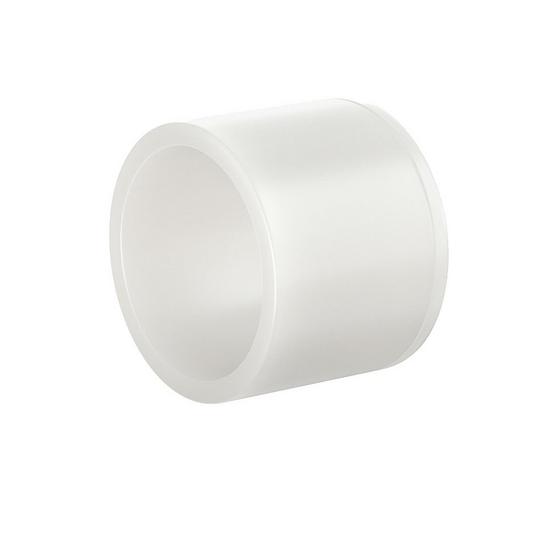

Product Overview
Manufactured to the highest industry standards, Jones Stephens' F1960 cold expansion fittings provide precise, secure, and leak-free connections. Made with strong polymer material, F1960 cold expansion fittings are corrosion and chlorine/chemical resistant – making them a great fit for aggressive water environments. Approved for use with PEX-A piping.
- Designed for use with PEX-A pipe and F1960 expansion fittings
- Requires expansion tool
- Crosslinked polyethylene construction
- Certified to NSF 61
Additional Information
Country of Origin:Spain
Compatible Valve Type:Compatible Valve Type:
Compatible Valve Type:F1960
F1807F2159
Inlet Connection Size:1-1/4"
Material:Crosslinked Polyethylene
Outlet Connection Size:1-1/4"
Size:1-1/4"
Fits Pipe Size:1-1/4"
Max Temperature:180°F
Pipe/Tubing Size:1-1/4"
Max Pressure:100 psi
Temperature Range:33°F - 180°F
Tensile Strength:>2900 psi
Working Pressure:100 psi
Working Temperature:180°F
Approved Applications:Water
Color:Natural
Compatible Pipe:PEX-A Pipe
Compatible Pipe Size:1-1/4"
Length:1.38"
Wall Thickness:.153"
Warranty:11-25 Year
ADA Compliant:No
CEC Listed:No
cUPC Listed:No
UPC Listed:No
End Connections:Expansion PEX
ANSI Standard:ANSI Standard:
ANSI Standard:ANSI 14
ANSI 61ANSI 372
CEC Compliant:No
IAPMO Listed:No
Lead Law Compliant:Yes
MASS Approved:No
NSF Certified:Yes
NSF Standard:NSF Standard:
NSF Standard:NSF 14
NSF 61NSF 372
SDWA Compliant:Yes
HAZMAT:No
CAN Standard:CAN Standard:
CAN 61CAN 372
