category:
PEX Plumbing System
manufacturer:
Jones Stephens
mpn:
F76784
subcategory:
PEX-A Pipe
type:
Potable Water

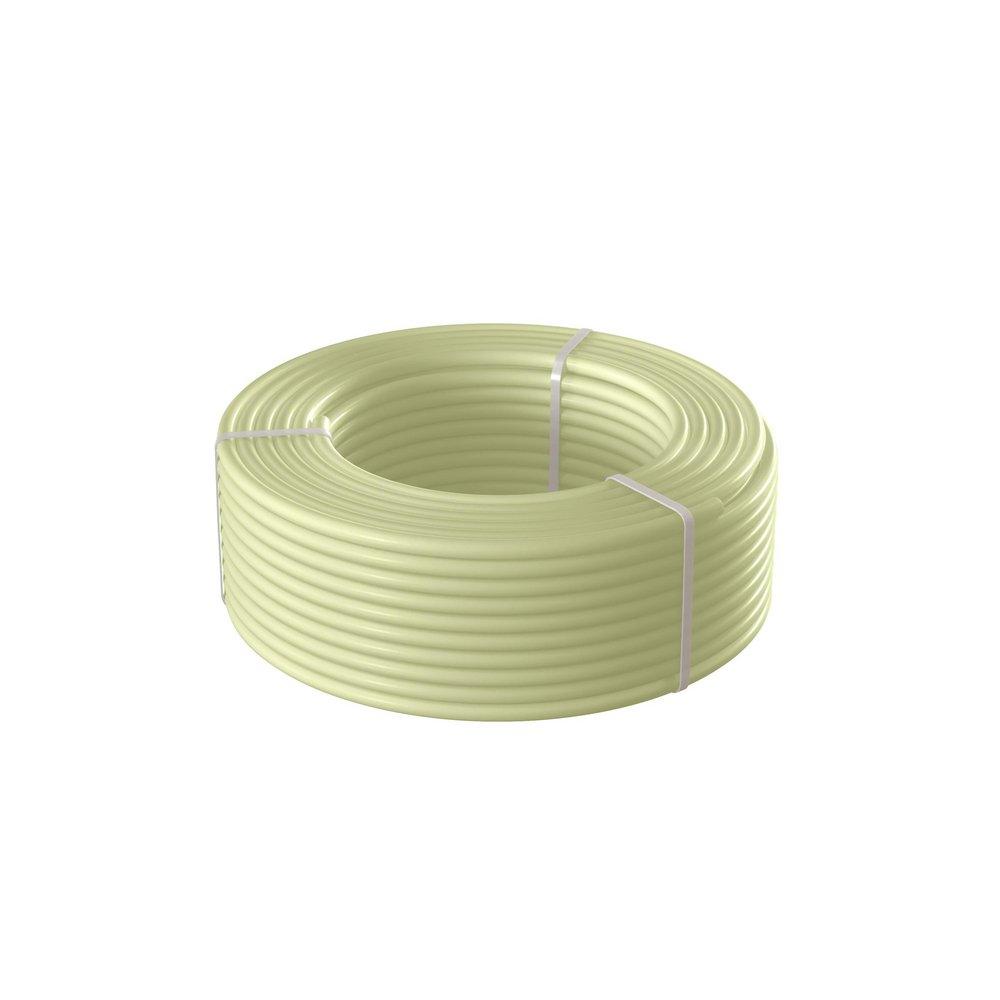

Product Overview
With its superior, durable crosslinking pattern, Jones Stephens' PEX-A pipe is highly flexible. It creates less kinking and requires less fittings compared to alternate piping methods, making installation simple and saving the installer time and energy. PEX-A pipe expands to absorb the sound of water hammer – providing quiet operation. Manufactured to the highest industry standards, PEX-A pipe is freeze resistant, corrosion resistant, and energy efficient. Approved for use with F1960 expansion fittings.
- Crosslinked polyethylene; PEX 5106
- Approved for use with F1960 fittings
- Easy installation
- Corrosion resistant
- Quiet operation
- Approved for use in potable plumbing applications
- NSF certified to ASTM F876/877 and CSA B137.5 per NSF/ANSI 14, 61 and 372
- NSF/ANSI 14 and 61 approved
- ASTM E84, ASTM F876, ASTM F877, and ASTM F2023 approved
Additional Information
Country of Origin:Spain
Compatible Valve Type:Compatible Valve Type:
Compatible Valve Type:F1960
F1807F2159
Inlet Connection Size:1/2"
Material:Crosslinked Polyethylene
Outlet Connection Size:1/2"
ID:0.485"
OD:0.625"
Max Temperature:203°F
Pipe/Tubing Size:1/2"
Max Pressure:160 psi
Temperature Range:73°F - 180°F
Tensile Strength:>2900 psi
Working Pressure:100 psi
Working Temperature:180°F
Approved Applications:Water
Color:Natural
Length:500'
Wall Thickness:.070"
Warranty:11-25 Year
AB100 Certified:N/A
ADA Compliant:No
CEC Listed:No
cUPC Listed:No
End Connections:Tube
ANSI Standard:ANSI Standard:
ANSI Standard:ANSI 14
ANSI 61ANSI 372
ASTM Standard:ASTM Standard:
ASTM F876ASTM F877
CEC Compliant:No
CSA Listed:No
IAPMO Listed:No
Lead Law Compliant:Yes
MASS Approved:Yes
NSF Certified:Yes
NSF Standard:NSF Standard:
NSF Standard:NSF 14
NSF 61NSF 372
SDWA Compliant:Yes
HAZMAT:No
CAN Standard:CAN 61
