category:
PEX Plumbing System
manufacturer:
Jones Stephens
mpn:
F76836
subcategory:
Fittings
type:
PEX F1960 Fittings

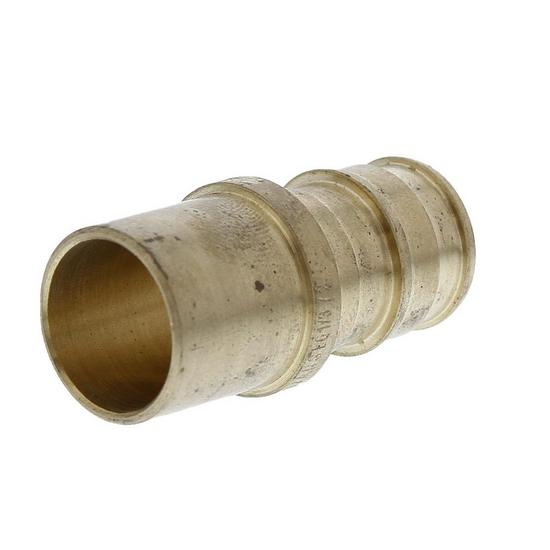

Product Description
Jones Stephens - F76836 Manufactured to the highest industry standards, Jones Stephens' F1960 lead-free brass cold expansion fittings provide precise, secure, and leak-free connections. Made with DZR brass, F1960 cold expansion fittings are corrosion and chlorine/chemical resistant – making them a great fit for aggressive water environments. Approved for use with PEX-A piping.
- Simple and dependable plumbing connection
- Easy installation
- Leak-proof connections
- Lead-free DZR brass
- Tested and certified to ASTM F1960-2021
- Certified to NSF/ANSI/CAN 61-2021, NSF/ANSI/CAN 372-2022, and NSF/ANSI 14-2015
- Certified to CSA B137.5-2020
- cUPC listed
- Lead law compliant
- Sold in carton quantities only
Additional Information
Country of Origin:China
Material:Brass
Size:1/2"
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Fits Pipe Size:1/2"
Max Temperature:180°F
Pipe/Tubing Size:1/2"
Max Pressure:100 psi
Temperature Range:33°F - 180°F
Working Pressure:100 psi
Working Temperature:180°F
Approved Applications:Water
Color:Brass
Compatible Pipe:PEX-A
Compatible Pipe Size:1/2"
Warranty:11-25 Year
ADA Compliant:No
CEC Listed:No
cUPC Listed:Yes
ISO Standard:ISO Standard:
ISO Standard:ISO9001:2015
ISO14001:2015ISO45001:2018
UPC Listed:No
End Connections:End Connections:
Expansion PEXSweat
ANSI Standard:ANSI Standard:
ANSI Standard:ANSI 14-2015
ANSI 61-2021ANSI 372-2022
ASTM Standard:ASTM F1960-2021
CEC Compliant:No
IAPMO Listed:Yes
Lead Law Compliant:Yes
MASS Approved:Yes
NSF Certified:No
NSF Standard:NSF Standard:
NSF Standard:NSF 14-2015
NSF 61-2021NSF 372-2022
SDWA Compliant:Yes
HAZMAT:No
CAN Standard:CAN Standard:
CAN 61-2021CAN 372-2022
