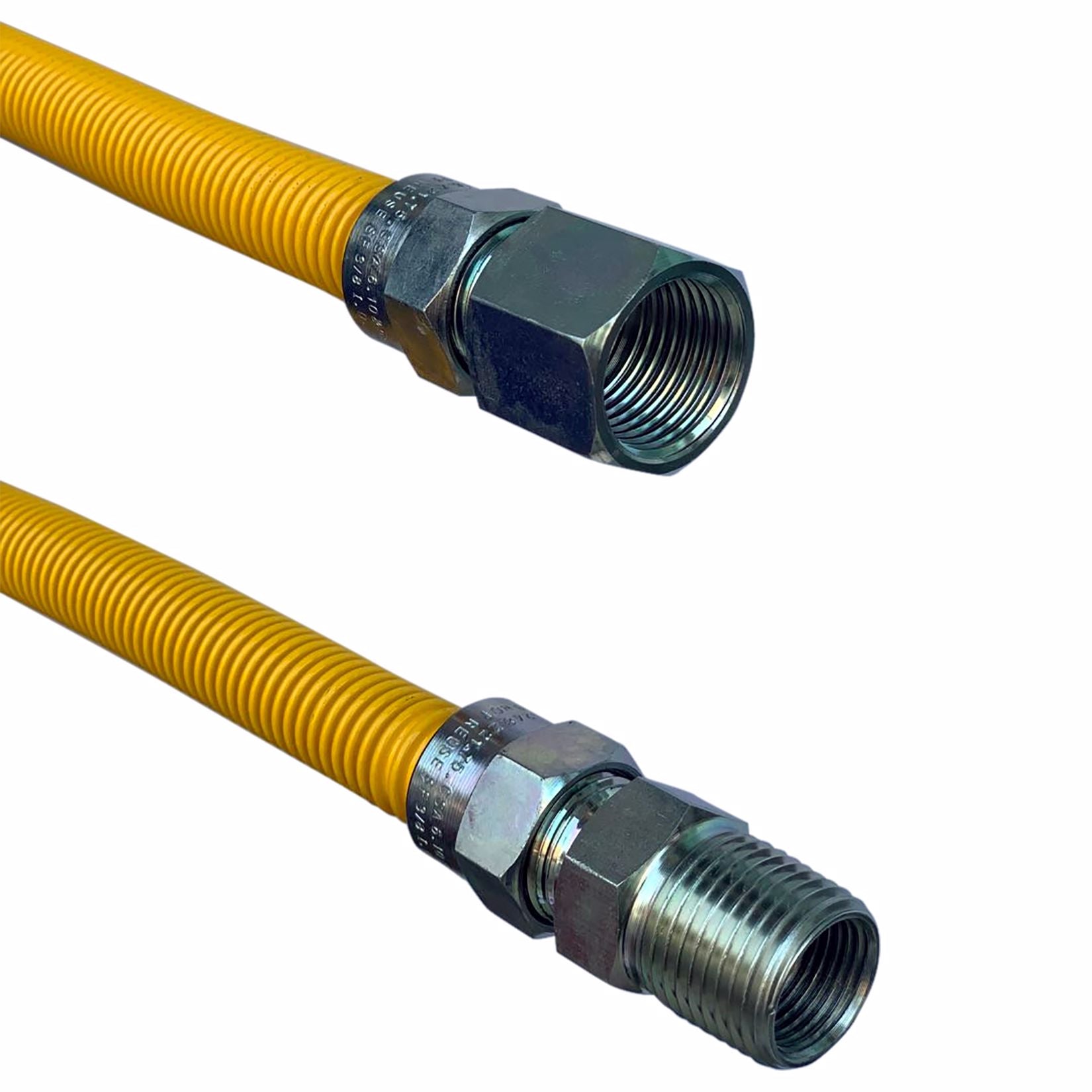

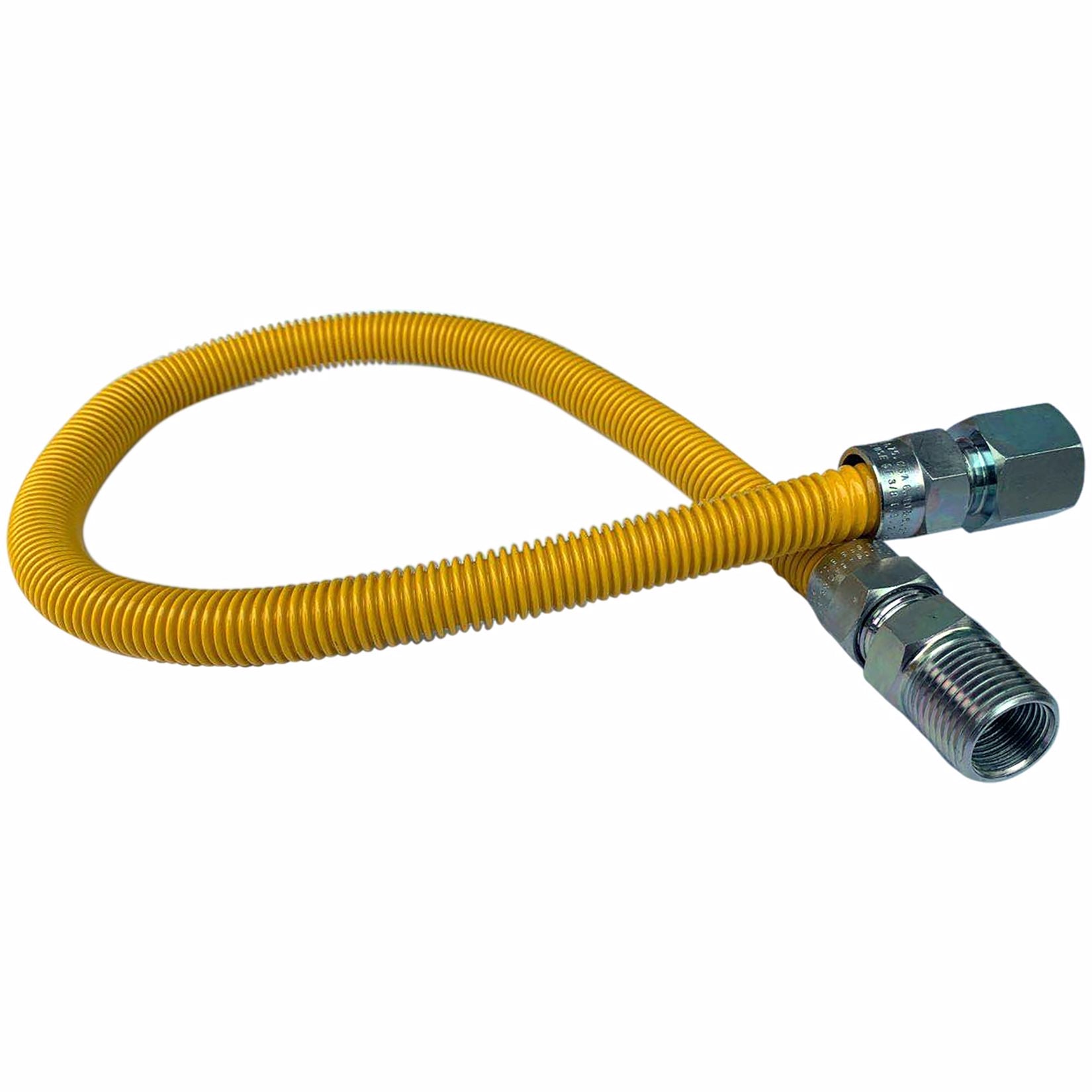

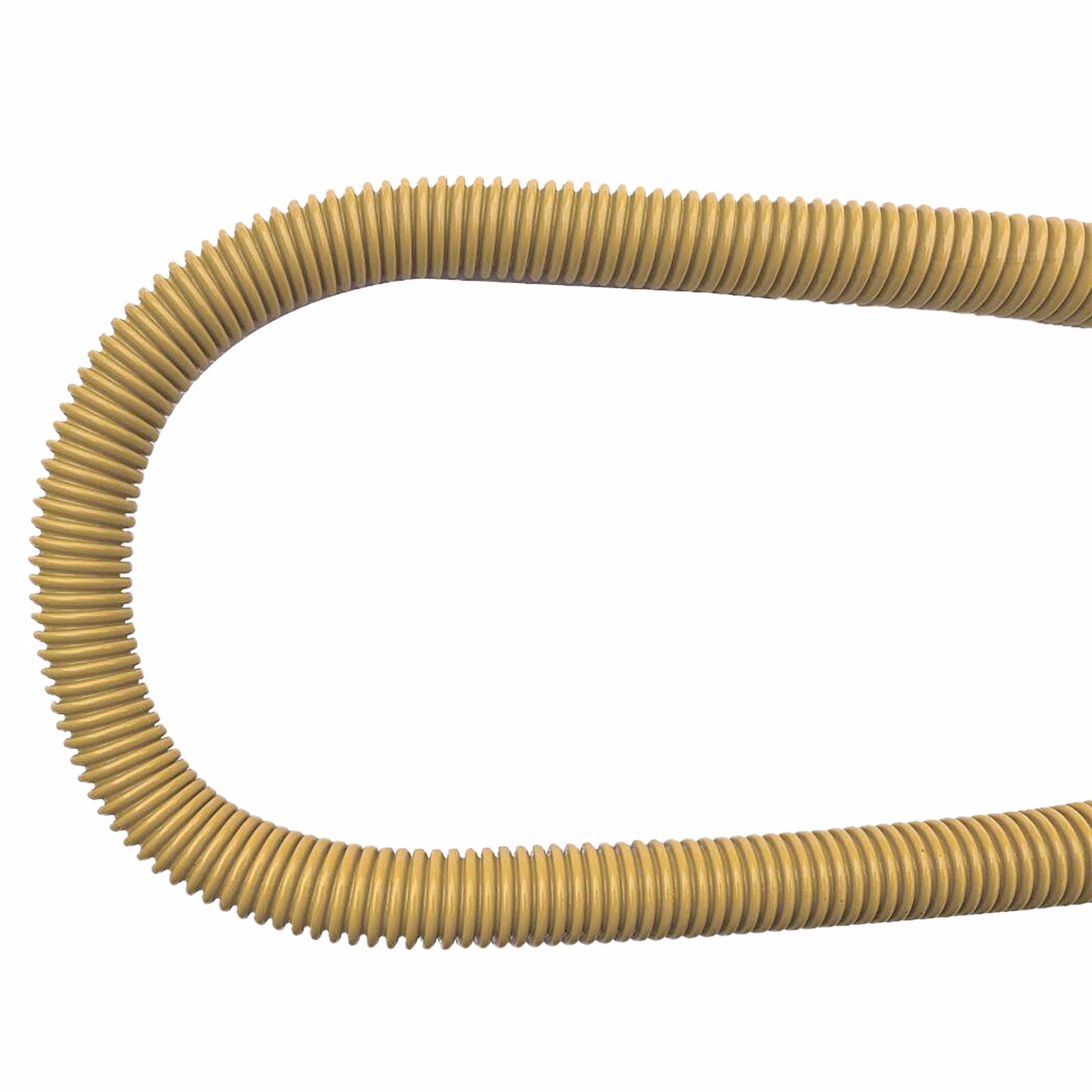

Jones Stephens G72145 1/2" OD (3/8” ID) Gas Connector Assembly, Yellow Coated, 1/2"FIP x 1/2" MIP x 48”

Product Description

Jones Stephens - G72145 Jones Stephens’ family of gas connectors are the professional’s choice for all your gas appliance hook-up needs. These connectors are coated yellow for an extra layer of protection and easy identification. The flexible hoses are made of durable 304 stainless steel and end fittings are plated for high corrosion resistance. Jones Stephens’ gas connectors have quality FIP end fittings which create a metal-to-metal seal and are 100% leak tested to ensure safety and quality.

• 85,000BTU (24,911)W
• Durable stainless steel 304 material
• Corrugation extends all the way to the fitting for increased tubing flexibility
• CSA Design certified domestically and internationally for indoor and outdoor use ANSI Z21.24-2015/CSA 6.10-2015 and ANSI Z21.75-2016/CSA 6.27-2016
• Corrosion resistant connectors add additional safety in highly corrosive environments or in areas where caustic chemicals are located
• Minimum fitting tightening torque (in-lb/N-M) 200 / 22.60, Maximum fitting tightening torque 390 / 44.06
• For proper product selection, use the ID and length of the line to locate the BTU rating
