category:
Appliance Supplies & Parts
manufacturer:
Jones Stephens
mpn:
S04234
subcategory:
Water Supplies, Stops & Accessories
type:
Supply Lines
Product Description

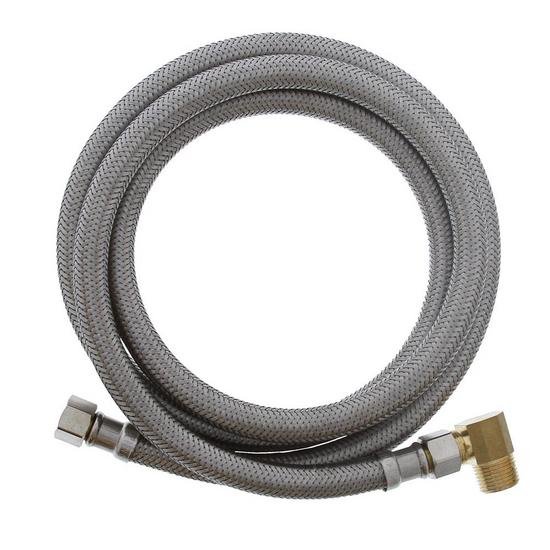

Jones Stephens - S04234 Connect your dishwasher to its water supply with confidence with Jones Stephens’ 3/8" Compression x 3/8" Compression x 60” Braided Stainless Steel Dishwasher Connector with 3/8” MIP 90° Elbow. This connector features a high-quality outer braid of stainless steel and exclusive crimp-on fittings for maximum performance. Installation is quick and easy with no special tools or pipe bending necessary. Additionally, the flexible, braided stainless steel connector resists kinking and creasing. Its inner core of PVC withstands temperatures of 68°F-158°F – providing reliable, trouble-free service.
- Used to connect dishwasher to water supply
- Inner core of PVC withstands temperatures of 68°F-158°F
- Working pressure: 124 PSI
- Brass end connections
- No special tools needed
- Flexible, braided stainless steel connector resists kinking and creasing
- Nickel plated nut
- UPC listed
- Meets NSF/ANSI/CAN 372, NSF/ANSI/CAN 61: Q =0.5, and NSF/ANSI 14 standards
- Lead free
Additional Information
Country of Origin:China
Material:Stainless Steel
Size:3/8" x 3/8"
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Max Temperature:158°F
Temperature Range:68°F - 158°F
Working Pressure:124 PSI
Working Temperature:158°F
Approved Applications:Dishwasher
Color:Stainless Steel
Gasket Material:Santoprene
Length:60"
End Connection Material:Brass
Warranty:1 Year
AB100 Certified:N/A
CEC Listed:No
cUPC Listed:Yes
UPC Listed:Yes
End Connections:End Connections:
CompressionMIP
ANSI Standard:ANSI Standard:
ANSI Standard:ANSI 372-2022
ANSI 61-2021: Q 0.5
ASME Standard:ASME A112.18.6-2017
CEC Compliant:No
CSA Listed:No
IAPMO Listed:Yes
Lead Law Compliant:Yes
MASS Approved:No
NSF Certified:No
NSF Standard:NSF Standard:
NSF Standard:NSF 372-2022
NSF 61-2021: Q 0.5
SDWA Compliant:Yes
CAN Standard:CAN Standard:
CAN 372-2022CAN 61-2021: Q
