category:
Plumbing
manufacturer:
Jones Stephens
mpn:
S04403
subcategory:
Water Supplies, Stops & Accessories
type:
Supply Lines
Product Description

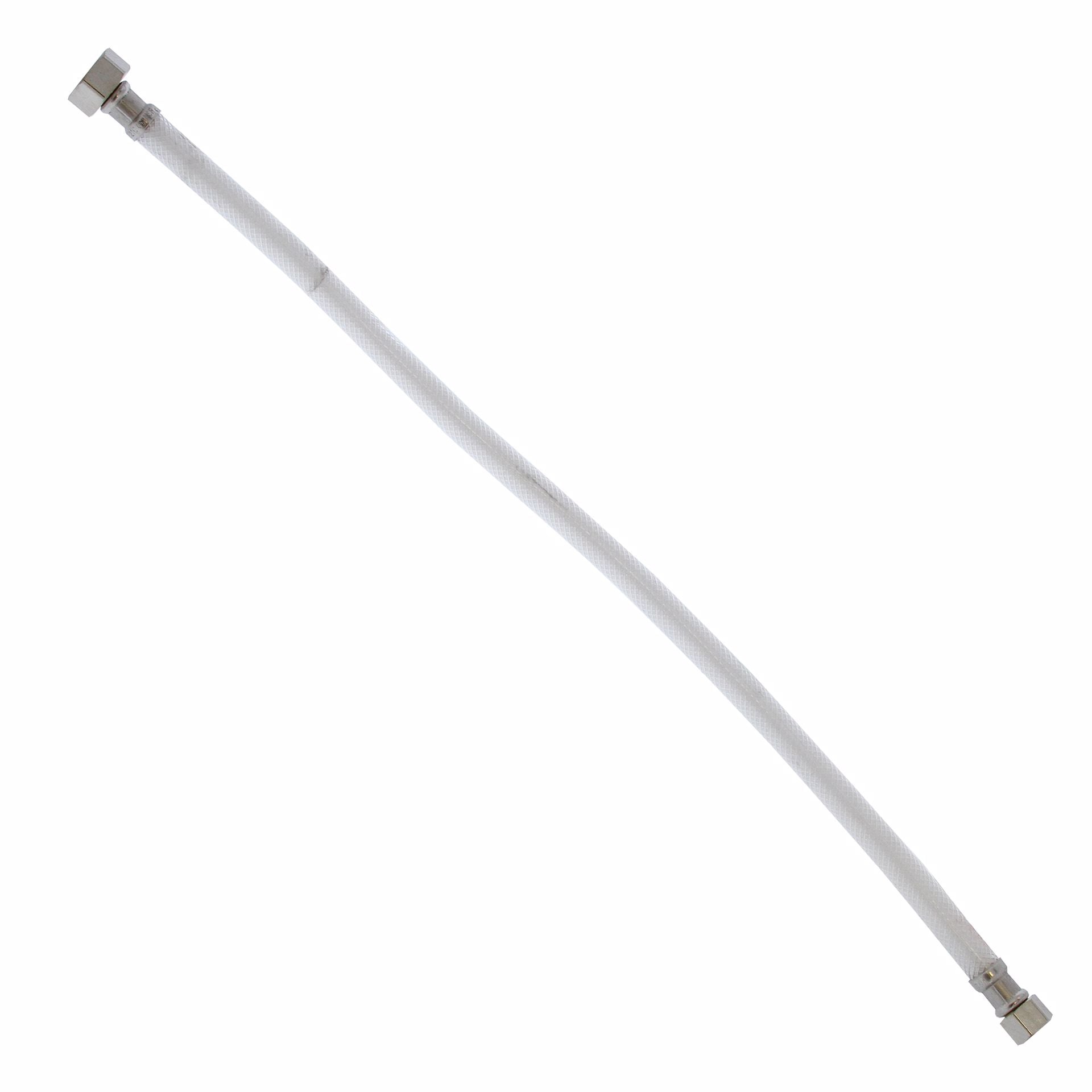

Jones Stephens - S04403 Trust Jones Stephens’ 3/8" Compression x 1/2" FIP x 20” Vinyl Faucet Connector to supply hot or cold water to your faucets. This connector features a high-quality outer construction of PVC and exclusive crimp-on fittings for maximum performance. Installation is quick and easy with no special tools or pipe bending necessary. Additionally, the flexible vinyl connector resists kinking and creasing. Its inner core of PVC withstands temperatures of 68°F-158°F – providing reliable, trouble-free service.
- Used for supplying water to faucets
- Working pressure: 124 PSI
- Inner core of PVC withstands temperatures of 68°F-158°F
- Quick and easy installation
- Flexible vinyl connector resists kinking and creasing

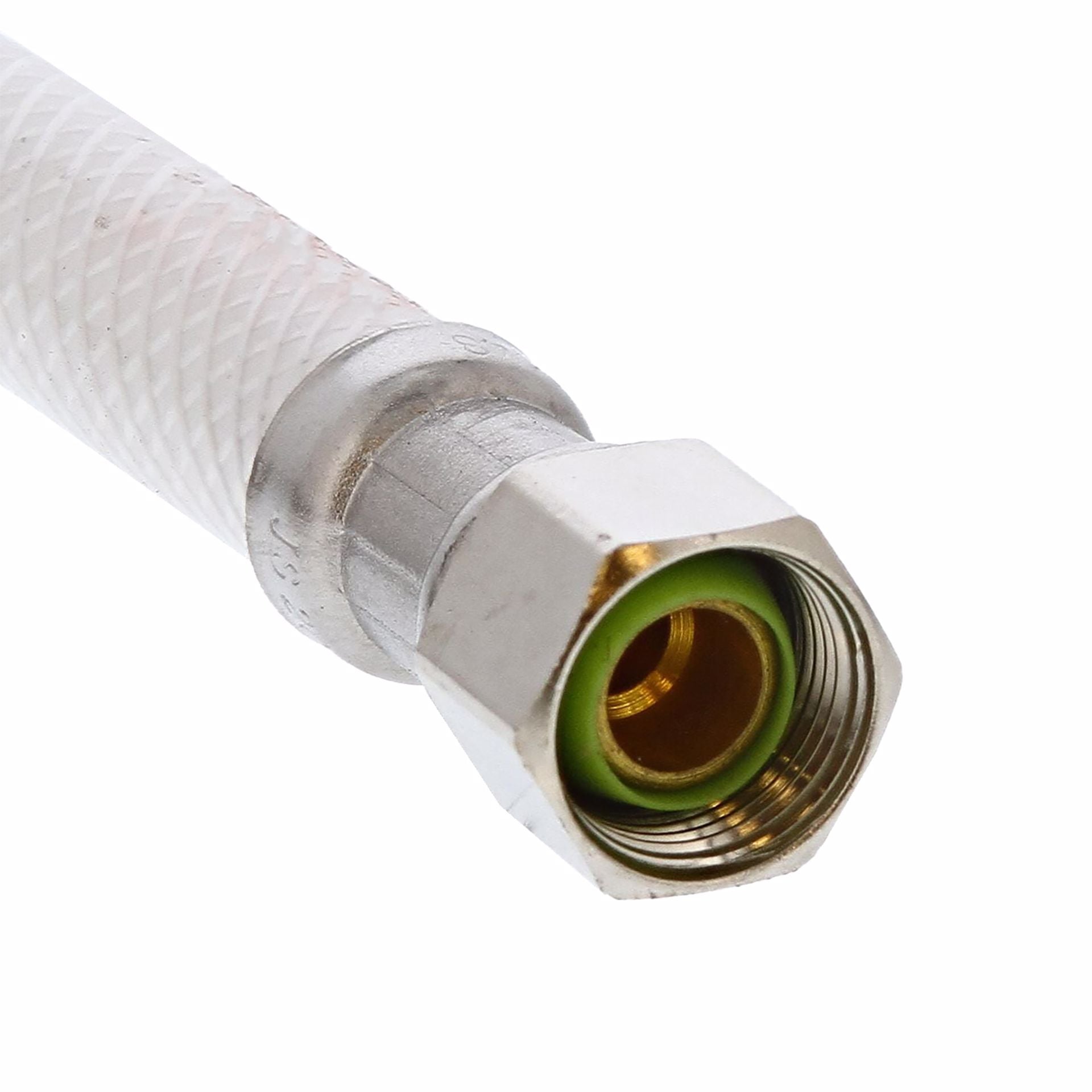

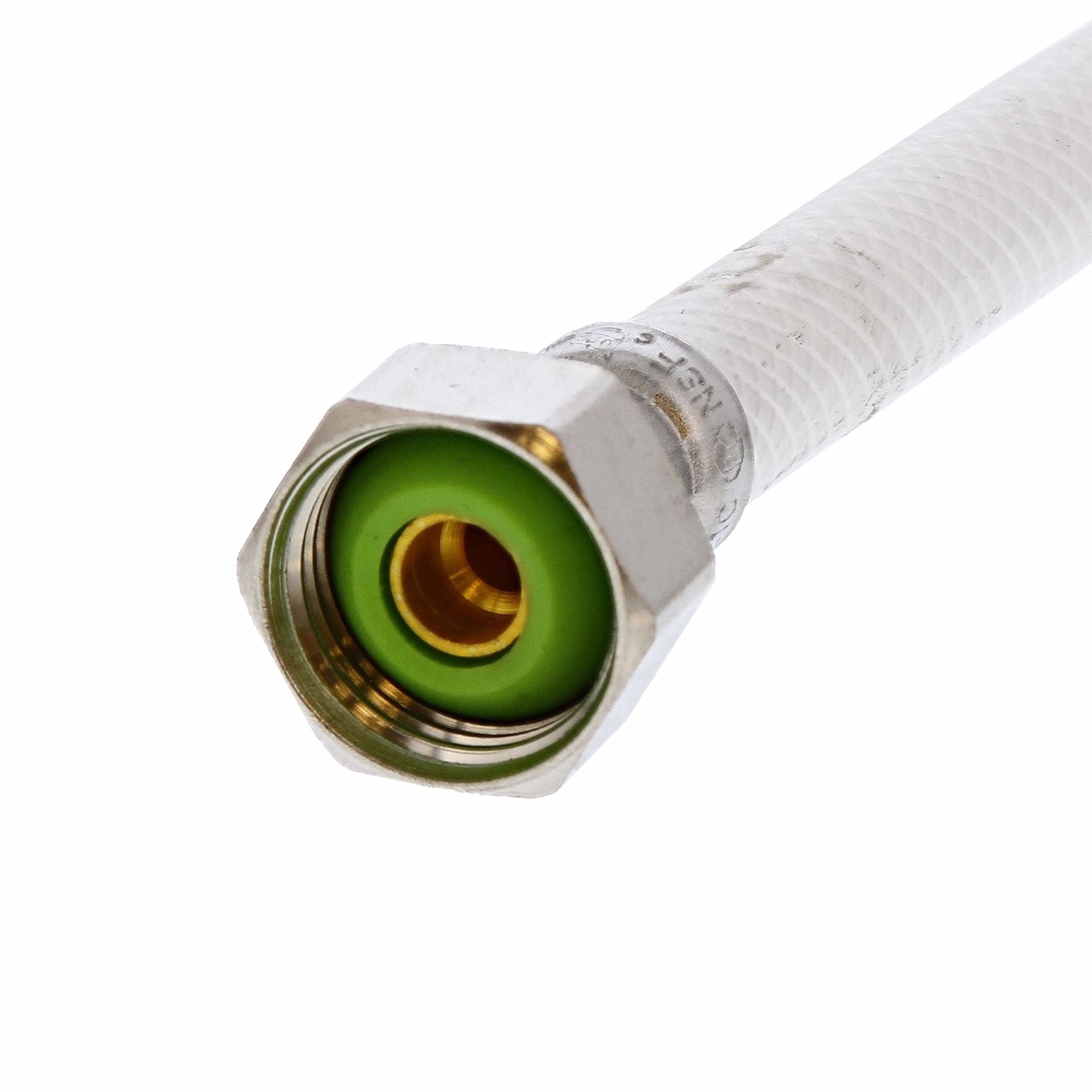

- Nickel plated nut
- cUPC listed
- Meets NSF/ANSI/CAN 372, NSF/ANSI/CAN 61: Q =0.5, and NSF/ANSI 14 standards
- ASME A112.18.6/CSA B125.6
- Lead free
Additional Information
Country of Origin:China
MaterialPVC outer layer w/Polyester Braided Jacket,Reinforced PVC Body
Size:3/8" x 1/2"
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Max Temperature:173°F (82°C)
Max Pressure:450 psi
Temperature Range:68°F - 158°F
Working Pressure:124 PSI
Working Temperature:158°F
Approved Applications:Faucet
Color:White
Gasket Material:Santoprene
Length:20"
End Connection Material:Brass
Warranty:1 Year
AB100 Certified:N/A
CEC Listed:No
cUPC Listed:Yes
UPC Listed:Yes
End Connections:End Connections:
CompressionFIP
ANSI Standard:ANSI Standard:
ANSI Standard:ANSI 372-2022
ANSI 61-2021: Q 0.5
ASME Standard:ASME A112.18.6-2017
CEC Compliant:No
CSA Listed:No
IAPMO Listed:Yes
Lead Law Compliant:Yes
MASS Approved:No
NSF Certified:No
NSF Standard:NSF Standard:
NSF Standard:NSF 372-2022
NSF 61-2021: Q 0.5
SDWA Compliant:Yes
CAN Standard:CAN Standard:
CAN 372-2022CAN 61-2021: Q
