category:
Appliance Supplies & Parts
manufacturer:
Jones Stephens
mpn:
S04430
subcategory:
Water Supplies, Stops & Accessories
type:
Supply Lines
Product Description

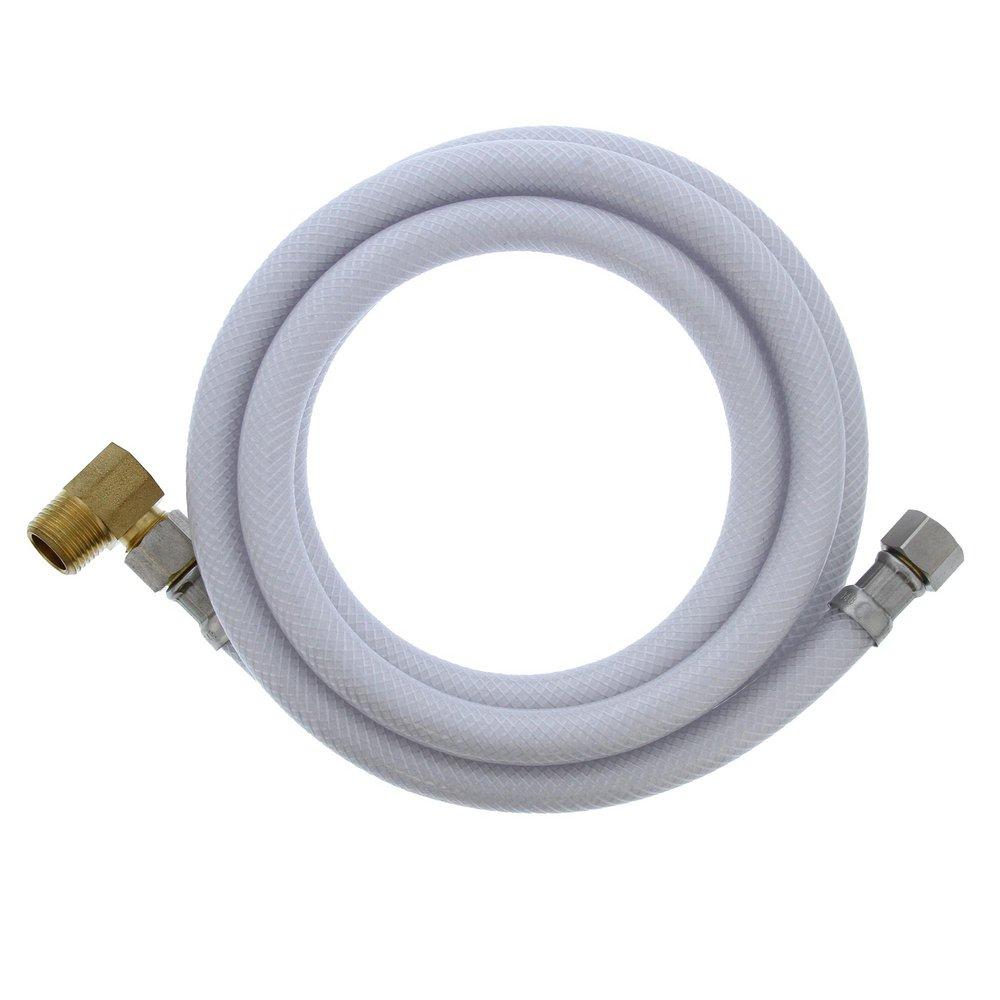

Jones Stephens - S04430 Connect your dishwasher to its water supply with confidence with Jones Stephens’ 3/8" Compression x 3/8" Compression x 72” Braided Vinyl Dishwasher Connector with 3/8” MIP 90° Elbow. This connector features a high-quality outer construction of vinyl for maximum performance and resistance to kinking and creasing. Installation is quick and easy with no special tools or pipe bending necessary. Its inner core of PVC withstands temperatures of 68°F-158°F – providing reliable, trouble-free service.
- Used to connect dishwasher to water supply
- Inner core of PVC withstands temperatures of 68°F-158°F
- Working pressure: 124 PSI
- Brass end connections
- No special tools needed
- Nickel plated nut
- Flexible vinyl connector resists kinking and creasing
- UPC listed
- Meets NSF/ANSI/CAN 372, NSF/ANSI/CAN 61: Q =0.5, and NSF/ANSI 14 standards
- ASME A112.18.6/CSA B125.6
- Lead free
Additional Information
Country of Origin:China
MaterialPVC outer layer w/Polyester Braided Jacket,Reinforced PVC Body
Size:3/8" x 3/8"
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Max Temperature:158°F
Max Pressure:450 psi
Temperature Range:68°F - 158°F
Working Pressure:124 psi
Working Temperature:158°F
Approved Applications:Dishwasher
Color:White
Gasket Material:Gasket Material:
SantopreneSilicone
Length:72"
End Connection Material:Brass
Warranty:1 Year
AB100 Certified:N/A
CEC Listed:No
cUPC Listed:Yes
UPC Listed:Yes
End Connections:End Connections:
CompressionMIP
ANSI Standard:ANSI Standard:
ANSI Standard:ANSI 372-2022
ANSI 61-2021: Q 0.5
ASME Standard:ASME A112.18.6-2017
CEC Compliant:No
CSA Listed:No
IAPMO Listed:Yes
Lead Law Compliant:Yes
MASS Approved:No
NSF Certified:No
NSF Standard:NSF Standard:
NSF Standard:NSF 372-2022
NSF 61-2021: Q 0.5
SDWA Compliant:Yes
CAN Standard:CAN Standard:
CAN 372-2022CAN 61-2021: Q
