K-Flex

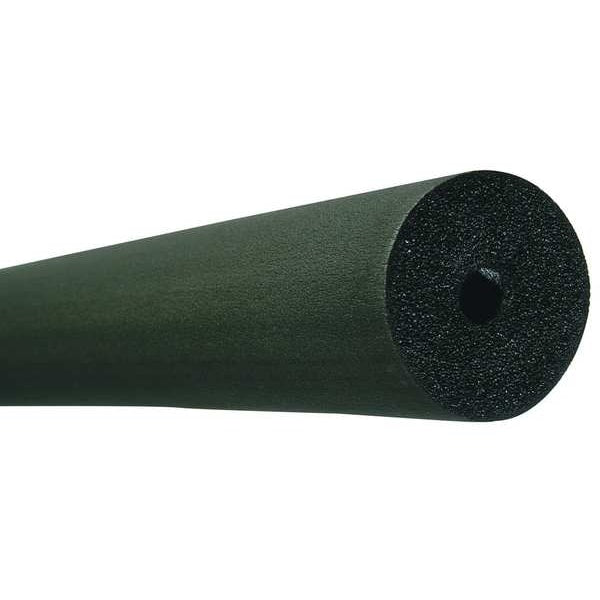

K-Flex 6RX038058 Pipe Insulation: Tube, Buna-N Rubber/PVC, Unslit, 3/8 in Thick, 5/8 in ID, 6 ft Lg, 2.3 R-Value, 378'/63 Pieces

K-Flex 6RX038058 Pipe Insulation: Tube, Buna-N Rubber/PVC, Unslit, 3/8 in Thick, 5/8 in ID, 6 ft Lg, 2.3 R-Value, 378'/63 Pieces

Dropship

Get it by Tue, Dec 24 - Sun, Dec 29

SKU kpi088-6RX038058

$347.16 USD
$347.16 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Pipe/Tubing & Hoses
country_of_origin: Italy
manufacturer: K-Flex
mpn: 6RX038058
Quantity/Size: 1 Carton
subcategory: Pipe/Tubing & Hoses Accessories
sub_category: Pipe/Tubing & Hoses Accessories
type: Pipe Insulation
weight: 28.00

Product Description

K-Flex - 6RX038058 These Buna-N/PVC foam rubber insulation tubes cover a length of straight pipe or tubing. This insulation is factory cut-to-length and preformed to save fabrication time in the field.

Features
  • Moisture vapor resistance
  • Condensation control
  • Mold and mildew resistant
  • Greenguard certified as a low VOC material
  • Excellent thermal insulation properties
  • Standard Approvals
  • ASTM C534 Type 1, Grade 1
  • ASTM D1056-00-2B1
  • ASTM E84 25/50-rated (to 2 in) - tested to UL 723, NFPA 255 and CAN/ULC S102-03
  • CFIA Compliant
  • FMVSS 302
  • FAR 25.853
  • FMRC Approval Guide: Chapter 14 Pipe Insulation
  • Meets requirements of California ECB Title 24
  • MIL-P-15280, Form T
  • Meets energy code requirements ofASHRAE 90.1and 189.1
  • NFPA No. 101 Class A Rating
  • NFPA 90A, 90B
  • New York City MEA 186-86-M Vol. V
  • RoHS Compliant
  • USDA Compliant
  • UL 94-5V Flammability Classification(#E300774)
  • UL GREENGUARD® Gold Certified"

Additional Information

FormTube
Insulation MaterialBuna-N Rubber/PVC
Installation StyleUnslit
For Pipe Size3/8 in
For Copper Tube Size5/8 in
Inside Diameter5/8 in
Outside Diameter1-3/8 in
Overall Length6 ft
Thickness3/8 in
Insulation R-Value2.3
Minimum Operating Temperature-297 °F
Maximum Operating Temperature220 °F
Foam Cell TypeClosed
ColorBlack
FlexibilityFlexible
FeaturesFiber-Free; Non-Dusting
For EnvironmentSubmersible
Resistance PropertiesMoisture-Resistant; Mold/Mildew-Resistant
Plenum RatingPlenum Rated
Flame Spread Index63
Smoke Developed Index88
StandardsASTM C411; ASTM C534 Type 1; ASTM D1056-00-2C1; ASTM E84; CAN/ULC S-102-M88; FMRC 2006; MIL-P-15280; New York City MEA 186-86-M Vol. IV; NFPA 255; NFPA 90A Sect 2.3.3; NFPA No 101 Class A; UL 181 11.0/16.0; UL 723; UL 94-5V; USDA
BrandK-FLEX USA
UNSPSC30141505
Country of OriginUSA (subject to change)
