K-Flex 6RX038138 Pipe Insulation: Tube, Buna-N Rubber/PVC, Unslit, 3/8 in Thick, 1 3/8 in ID, 6 ft Lg, 2 R-Value, 168'/28 Pieces

K-Flex 6RX038138 Pipe Insulation: Tube, Buna-N Rubber/PVC, Unslit, 3/8 in Thick, 1 3/8 in ID, 6 ft Lg, 2 R-Value, 168'/28 Pieces

Dropship

SKU kpi088-6RX038138

MPN : 6RX038138

$223.06 USD
$223.06 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

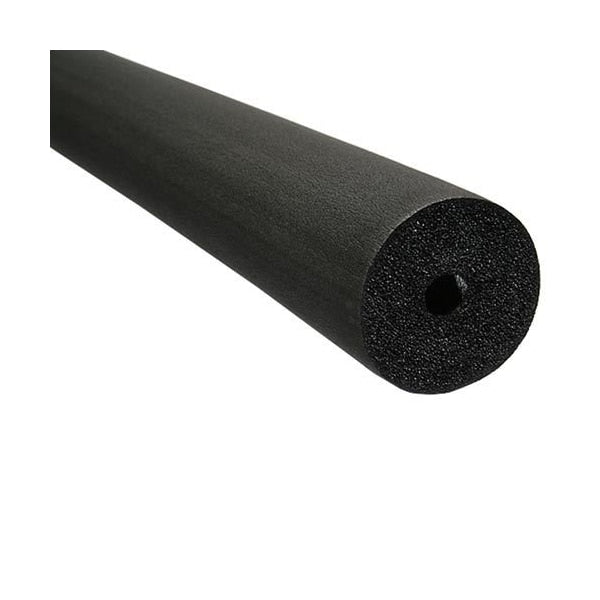

K-Flex - 6RX038138 These Buna-N/PVC foam rubber insulation tubes cover a length of straight pipe or tubing. This insulation is factory cut-to-length and preformed to save fabrication time in the field.

Features
  • Moisture vapor resistance
  • Condensation control
  • Mold and mildew resistant
  • Greenguard certified as a low VOC material
  • Excellent thermal insulation properties
  • Standard Approvals
  • ASTM C534 Type 1, Grade 1
  • ASTM D1056-00-2B1
  • ASTM E84 25/50-rated (to 2 in) - tested to UL 723, NFPA 255 and CAN/ULC S102-03
  • CFIA Compliant
  • FMVSS 302
  • FAR 25.853
  • FMRC Approval Guide: Chapter 14 Pipe Insulation
  • Meets requirements of California ECB Title 24
  • MIL-P-15280, Form T
  • Meets energy code requirements ofASHRAE 90.1and 189.1
  • NFPA No. 101 Class A Rating
  • NFPA 90A, 90B
  • New York City MEA 186-86-M Vol. V
  • RoHS Compliant
  • USDA Compliant
  • UL 94-5V Flammability Classification(#E300774)
  • UL GREENGUARD® Gold Certified"

Additional Information

FormTube
Insulation MaterialBuna-N Rubber/PVC
Installation StyleUnslit
For Pipe Size1 in
For Copper Tube Size1-3/8 in
Inside Diameter1-3/8 in
Outside Diameter2-1/8 in
Overall Length6 ft
Thickness3/8 in
Insulation R-Value2
Minimum Operating Temperature-297 °F
Maximum Operating Temperature220 °F
Foam Cell TypeClosed
ColorBlack
FlexibilityFlexible
FeaturesFiber-Free; Non-Dusting
For EnvironmentSubmersible
Resistance PropertiesMoisture-Resistant; Mold/Mildew-Resistant
Plenum RatingPlenum Rated
Flame Spread Index66
Smoke Developed Index91
StandardsASTM C411; ASTM C534 Type 1; ASTM D1056-00-2C1; ASTM E84; CAN/ULC S-102-M88; FMRC 2006; MIL-P-15280; New York City MEA 186-86-M Vol. IV; NFPA 255; NFPA 90A Sect 2.3.3; NFPA No 101 Class A; UL 181 11.0/16.0; UL 723; UL 94-5V; USDA
BrandK-FLEX USA
UNSPSC30141505
Country of OriginUSA (subject to change)
CategoryPipe/Tubing & Hoses
Country of originItaly
ManufacturerK-Flex
Mpn6RX038138
Quantity/size1 Carton
SubcategoryPipe/Tubing & Hoses Accessories
Sub categoryPipe/Tubing & Hoses Accessories
TypePipe Insulation
Weight16.00
