category:
Pipe/Tubing & Hoses
country_of_origin:
Italy
manufacturer:
K-Flex
mpn:
6RX038158
Quantity/Size:
1 Carton
subcategory:
Pipe/Tubing & Hoses Accessories
sub_category:
Pipe/Tubing & Hoses Accessories
type:
Pipe Insulation
weight:
26.00
Product Description

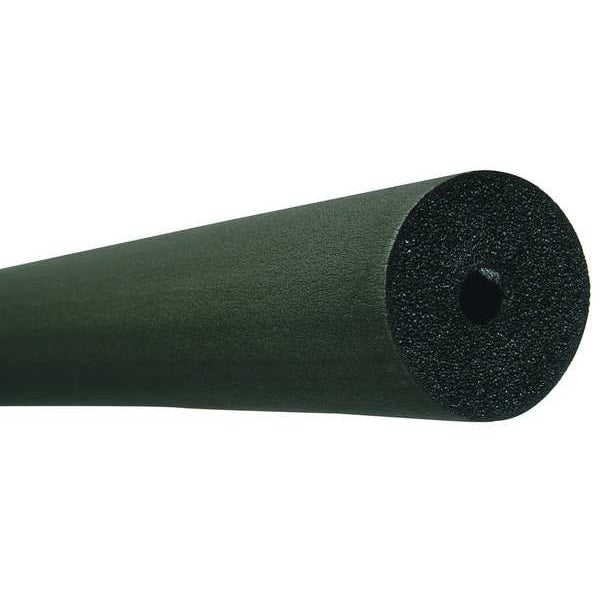

K-Flex - 6RX038158 These Buna-N/PVC foam rubber insulation tubes cover a length of straight pipe or tubing. This insulation is factory cut-to-length and preformed to save fabrication time in the field.
Pipe Insulation, Insulation Material Buna-N Rubber/PVC, Installation Style Unslit, Inside Diameter 1 5/8 in, Wall Thickness 3/8 in, Overall Length 6 ft, Minimum Operating Temperature -297 Degrees F, Maximum Operating Temperature 220 Degrees F, Jacket Material Unfaced, Color Black, R Value 2.2, Form Tube, For Copper Tube Size 1 5/8 in, For Pipe Size 1 1/4 in, Flame Spread Index 67, Smoke Developed Index 92, Foam Cell Type Closed, Plenum Rating Plenum Rated, Flexibility Flexible
Additional Information
FormTube
Insulation MaterialBuna-N Rubber/PVC
Installation StyleUnslit
For Pipe Size1-1/4 in
For Copper Tube Size1-5/8 in
Inside Diameter1-5/8 in
Outside Diameter2-3/8 in
Overall Length6 ft
Thickness3/8 in
Insulation R-Value2.2
Minimum Operating Temperature-297 °F
Maximum Operating Temperature220 °F
Foam Cell TypeClosed
ColorBlack
FlexibilityFlexible
FeaturesFiber-Free; Non-Dusting
For EnvironmentSubmersible
Resistance PropertiesMoisture-Resistant; Mold/Mildew-Resistant
Plenum RatingPlenum Rated
Flame Spread Index67
Smoke Developed Index92
StandardsASTM C411; ASTM C534 Type 1; ASTM D1056-00-2C1; ASTM E84; CAN/ULC S-102-M88; FMRC 2006; MIL-P-15280; New York City MEA 186-86-M Vol. IV; NFPA 255; NFPA 90A Sect 2.3.3; NFPA No 101 Class A; UL 181 11.0/16.0; UL 723; UL 94-5V; USDA
BrandK-FLEX USA
UNSPSC30141505
Country of OriginUSA (subject to change)
