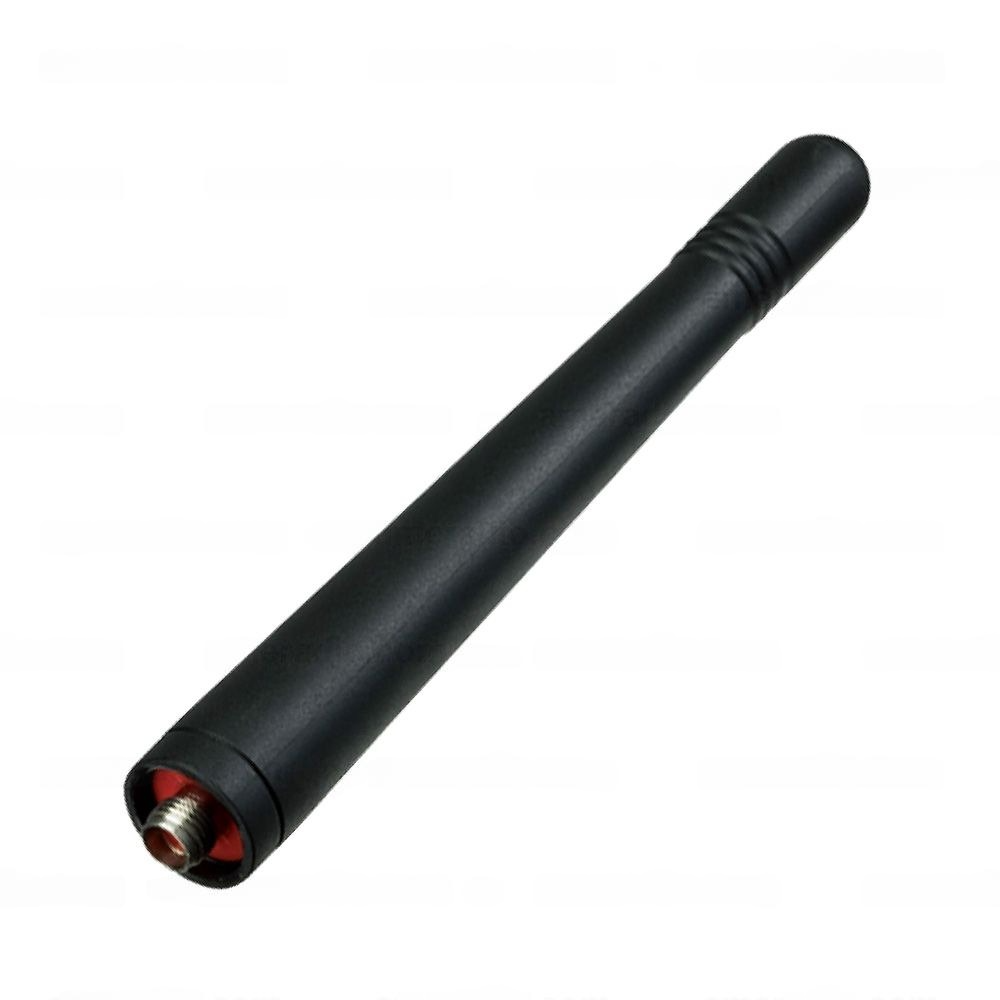

Kenwood KRA-22M Short Helical VHF Antenna, 148-162 MHz, SMA Female Connector

Product Description

Kenwood - KRA-22M Kenwood KRA-22M VHF Antenna

VHF low profile helical antenna, 4.3 inch (110 mm) long. Successor of KRA-14.This type of antenna consists of a thin metal rod, or "whip", that is wound with a helix of wire along its length. The helix acts as a loading coil, increasing the electrical length of the antenna and improving its performance at the lower end of the VHF range.The shortened helical antenna is a useful solution in situations where the standard-size antenna might impede the work process. Although the antenna's reduced length has a minor impact on the radio communication range, it is an effective way to improve mobility and reduce potential obstructions.

Compatible with KENWOOD two-way radios:

NX-200,NX-200G,NX-205G,NX-210,NX-220,NX-240,NX-1200A,NX-1200D,NX-1200N,NX-1202,NX-3200,NX-3220,NX-5200,NX-5200S,TK-290,TK-2140,TK-2160,TK-2170,TK-2180,TK-2200,TK-2212,TK-2300,TK-2302,TK-2312,TK-2360,TK-2400,TK-2402,TK-D240V

Compatible with EF JOHNSON (EFJ) two-way radios:

Viking VP5230,Viking VP6230,Viking VP8000
