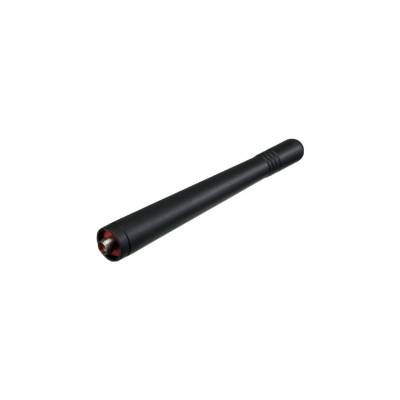

Kenwood KRA-23M Short Whip UHF Antenna, 440-490 MHz, SMA Female Connector

Product Description

Kenwood - KRA-23M KENWOOD KRA-23M UHF Antenna

UHF low profile helical antenna, 3.2 inch (80 mm) long. Successor of KRA-15.This type of antenna consists of a thin metal rod, or "whip", that is wound with a helix of wire along its length. The helix acts as a loading coil, increasing the electrical length of the antenna and improving its performance at the lower end of the UHF range.The shortened helical antenna is a useful solution in situations where the standard-size antenna might impede the work process. Although the antenna's reduced length has a minor impact on the radio communication range, it is an effective way to improve mobility and reduce potential obstructions.

Compatible with KENWOOD two-way radios:

NX-300G,NX-305G,NX-320,NX-340,NX-1300A,NX-1300D,NX-1300N,NX-1302,NX-3300,NX-3320,NX-5300,NX-5300S,TK-390,TK-3160,TK-3170,TK-3173,TK-3180,TK-3200,TK-3212,TK-3300,TK-3302,TK-3312,TK-3400,TK-3402

Compatible with EF JOHNSON (EFJ) two-way radios:

Viking VP5330,Viking VP6330,Viking VP8000
