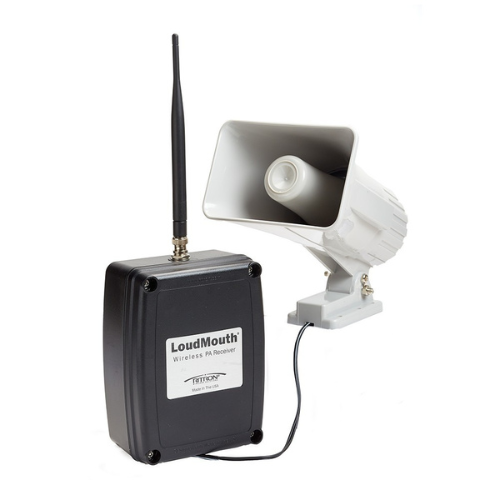

Ritron LM-700DMR Digital Only LoudMouth Wireless PA System

Product Overview

Ritron LM-700DMR Digital Only LoudMouth Wireless PA System.LM-700DMR, DMR Digital, Tier-2 device VHF/UHF bands.The Loudmouth PA system is a radio receiver that allows you to use your portable, base station or mobile 2-way radio to deliver voice messages directly to a PA speaker. The receiver and PA speaker is the ideal solution where hard-wired PA installation is simply impossible, too expensive, or temporary. Once installed, operating the Wireless Public Address radio receiver requires no human contact.

The LoudMouth radio receiver is small and lightweight (7"H x 5"W x 3"D, 2lbs). It is housed in a rugged, sealed, weather-resistant housing and includes a wall mounting bracket. The radio receiver should be mounted indoors away from the elements.The indoor /outdoor 5 Watts horn speaker provides 85 dB of audio output @ 50 feet, so even in noisy environments you can get your message out loud and clear. The loud PA horn speaker includes a mounting bracket.5 Pre-set Volume Output Levels to select from Each LoudMouth radio receiver and PA speaker combination can be paged individually. Multiple units can be placed throughout a facility, programmed identically, and activated simultaneously as a group.9 Auto Shut-Off Timer selections (5 seconds to 4 minutes). After receiver is successfully paged, a pre-set timer will begin count down. A valid radio signal must be received within the selected time interval or the receiver will re-set.

Includes:

• Dual Band, VHF (150-165MHz)/UHF Receiver (450-470MHz)
• DMR Digital Only
• PC and Field Programmable
• œLive Mode or œRecord and Play Mode
• Adjustable Speaker Volume (5% to 99%)
• Max Volume 95dB SPL@ 50 Ft.
• Recorded Message REPEAT Feature - Up To 4 Times
• Recorded Message DELAY Feature
• Visual Alert RELAY Trigger Feature “ Requires Optional Strobe & Optional Cable 60201136
• Switch Input with Pre-Recorded Message “ Allows Optional NO or NC switch to activate a recorded voice message played solely on single attached LM receiver/speaker.
• LM Receiver Supports Up To 2 PA Speakers “ requires optional RYCONN Cable and additional PA Speaker
• Up to 4 Pre-Recorded Stored Messages “ Selectively trigger each stored voice message using a UID from the 2-way radio
• Signaling Decode: Color Codes, SUID, Destination Type and Destination ID
• LM-700DMR
• Dual Band whip antenna
• RPS-1B 110VAC Power Supply
• 05500040 PA Horn Speaker Indoor/Outdoor rated with 25 ft. cord
• LM mounting bracket
