category:
Levels & Measuring Tools
manufacturer:
Klein Tools
mpn:
93PLL
subcategory:
Laser Levels
Product Description

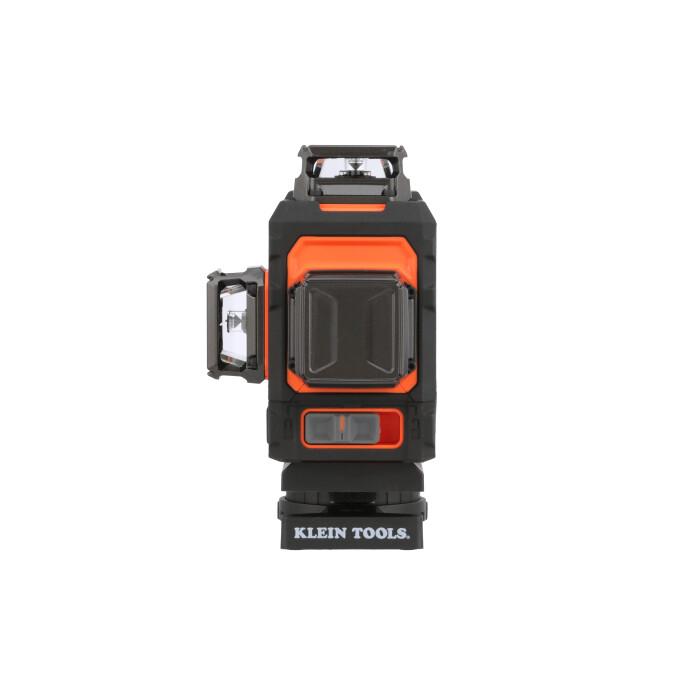

Klein Tools - 93PLL The Klein Tools™ Rechargeable Self-Leveling Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level, and offers plumb up and plumb down marks. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications. This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ‰¤1mW @ 510-530nm).
- Rechargeable Self-Leveling Green Planar Laser Level has easy-to-read with high visibility green horizontal and vertical laser lines
- Projects independently or together in X-, Y- and Z-planes for various layout and alignment options
- View the upward and downward plumb marks at the intersection of the Y-plane and Z-plane
- More than 9 hour run time with integrated rechargeable Li-Ion battery; battery may be removed and charged while outside of the laser level
- This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ‰¤1mW @ 510-530nm)
- Integrated magnetic mounting bracket with 1/4-20 tripod mounting threads
- Rugged body provides IP54 water and dust resistance; hard plastic carrying case included
- Includes Li-Ion battery pack, USB-A to USB-C charging cable, magnetic mounting bracket, protective hard carrying case, and instructions
Additional Information
Type:Laser
Application:Self-Leveling Laser Alignment Instrument
Special Features:Rechargeable Battery, Magnetic Mounting Bracket with 1/4-20 Tripod Mounting Threads; 3 Orthogonal 360° Planar Lines
Material:ABS Housing and Electronic Components
Batteries:Lithium-Ion
Laser Wavelength:510-530 nm
Laser Safety:‰¤1mW Each Beam, Class 2 Laser Product
Number of Beams:3
Laser Color:Green
Plumb Laser:No
Indoor Range:91" (28 m)
Outdoor Range:91" (28 m)
Maximum Distance:91" (28 m)
Accuracy:+/- 4.5 mm per 15 m
Pulse Mode:No
Receiver:No
Magnet Type:Rare Earth Magnets
Ingress Protection:IP54: Water and Dust Resistant
Transit Locking Mechanism:Yes
Low Battery Indicator:Yes
Standard:EN61326-1:2013, EN60825-1:2014, NOM-001-SCFI-2018 and 21 CFR 1040.1 and 1040.11 Except for Deviations Pursuant to Laser Notice No. 50, Dated June 24, 2007
Bag or Case:Hard Carrying Case
Included:Li-Ion Battery, USB-A to USB-C Cable, Magnetic Mounting Bracket, and Hard Carrying Case
Overall Length:5.5"" (2.2 cm)
Overall Height:3.5"" (1.4 cm)
Overall Width:4.8"" (1.9 cm)
Weight:1.4 lb (0.6 kg)
Battery Life:9 hr
