Product Overview

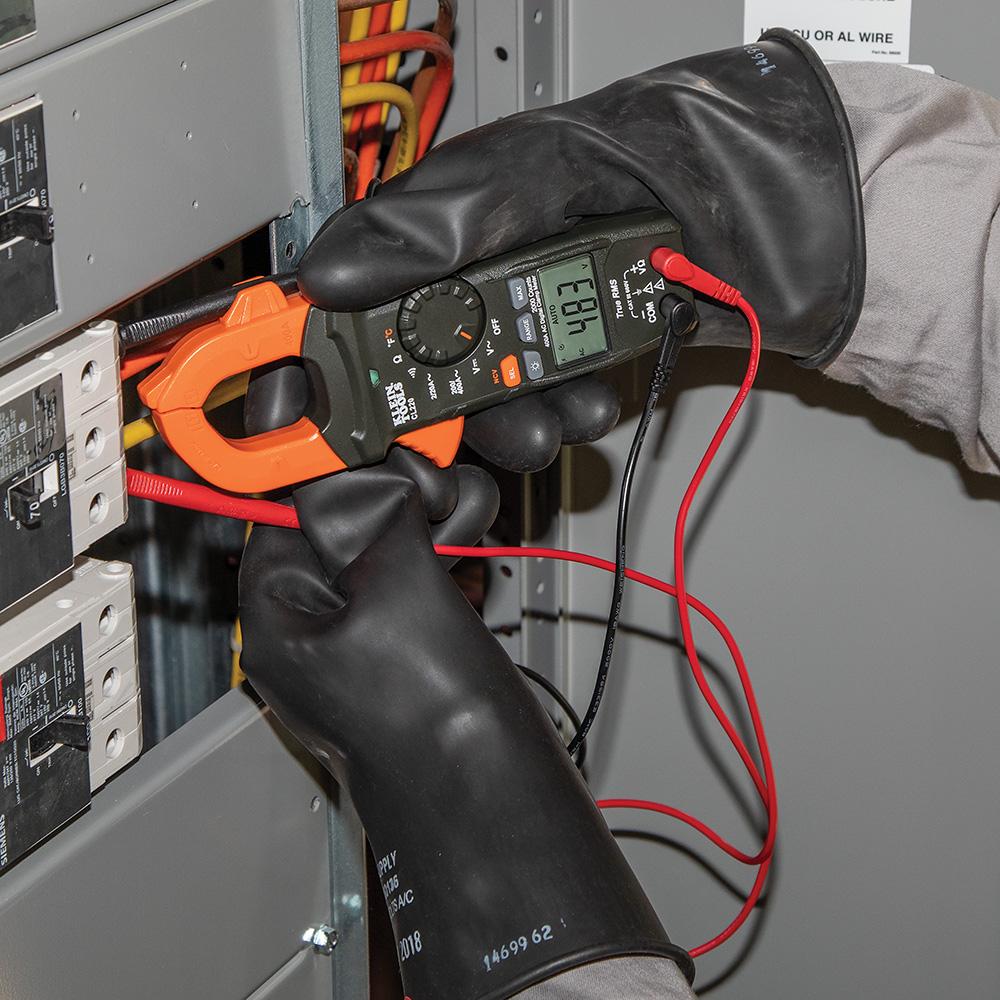

The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.
- Measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
- Non-contact voltage tester integrated into the clamp jaw
- Backlit LCD for ease of viewing in low light
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
- Measures temperature with a K-Type thermocouple probe
- Auto-Range, Hold, Data Hold, and Max value
- Auto-power off after 10 minutes to conserve battery life
- Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
- Low battery indicator and easily accessible battery compartment
- Built to withstand a 6.6-Foot (2 m) drop
- CAT III 600V, Class 2, Double insulation safety rating
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Additional Information
Type:Auto Ranging TRMS Clamp with Temperature
Application:Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple
Special Features:Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
Material:ABS/Electronics
Batteries:3 x AAA
Auto-Power Off:Yes
Jaw Size:1.6"" (4.1 cm)
Drop Protection:6.6" (2 m)
Display:2000 Count Backlit LCD
Functions:TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature
Voltage:600 V AC/DC
Current:400 A AC
Ohms (Resistance):20 M„¦
AC Voltage:600 V
DC Voltage:600 V
DC Polarity Indicator:Yes
Temperature Range:-40° - 1832°F (-40° - 1000°C)
Standard:CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Included:Carrying Case, Instructions, Test Leads, Thermocouple, and Batteries
Overall Length:8.45"" (21.5 cm)
Overall Height:1.5"" (3.8 cm)
Overall Width:3.5"" (8.9 cm)
Weight:11 oz (314 g)
