Product Description

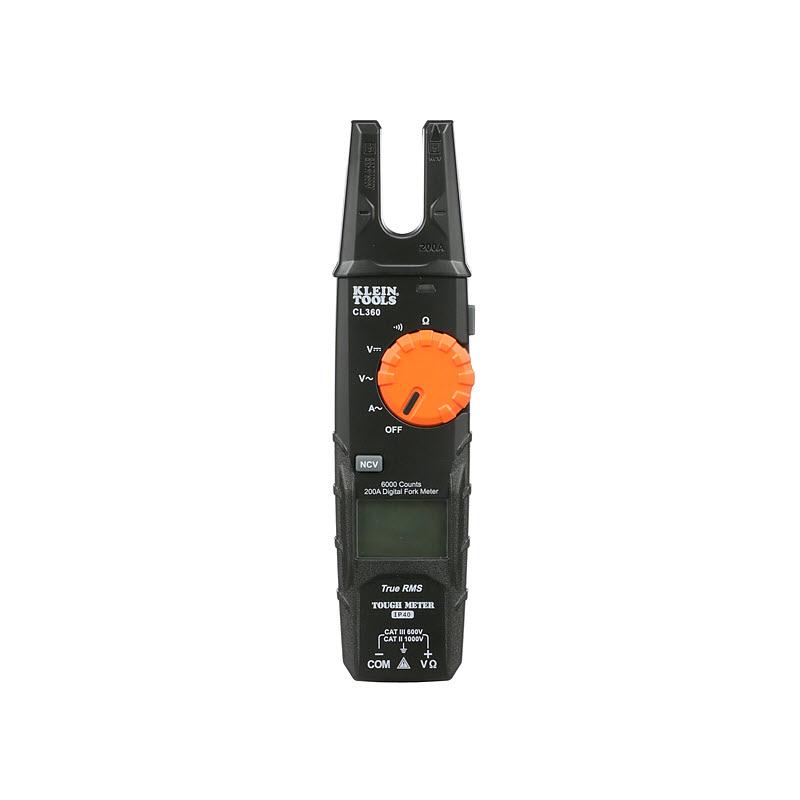

Klein Tools - CL360 The CL360 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity, and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester. It includes a carrying case, test leads and 2 x AAA batteries.
- Open Fork Meter with automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Tester measures AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads
- Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (1.5 cm)
- Non-contact voltage tester integrated into the jaw
- Includes a carrying case, test leads and 2 x AAA batteries
- Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insulation
- Backlit display for clear readings
- Powers off automatically after 15 minutes of non-use to conserve battery life
- Rugged Klein ''TOUGH METER'' is built to withstand a 9.9-Foot (3m) drop
- Low battery indicator and easily accessible battery compartment
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Additional Information
Type:Open Jaw Fork Current Meter
Application:Measures AC Current, AC/DC Voltage, Continuity, Resistance
Special Features:Low Battery Indicator, Built-in Test Lead Holders, Backlit Display
Material:Plastic/Electronics
Batteries:2 x AAA
Auto-Power Off:Y
Jaw Size:0.58"" (1.5 cm) Opening
Drop Protection:9.9" (3m)
Display:6000 Count LCD
Functions:AC Current, AC/DC Voltage, Continuity, Resistance
Voltage:600V AC, 1000V DC
Current:200A AC
Ohms (Resistance):60M„¦
AC Voltage:600V
DC Voltage:1000V
DC Polarity Indicator:Yes
Ingress Protection:IP40
Standard:Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V
Included:Carrying Case, Instruction Manual, Straight Input Test Leads, and 2 x 1.5V AAA Batteries
Overall Length:8.39"" (21.3 cm)
Overall Height:1.38"" (3.5 cm)
Overall Width:2.12"" (5.4 cm)
Weight:6.40 oz (180.0g)
