category:
Levels & Measuring Tools
manufacturer:
Klein Tools
mpn:
ET920
subcategory:
Test & Measurement
type:
Specialty Testers
Product Description

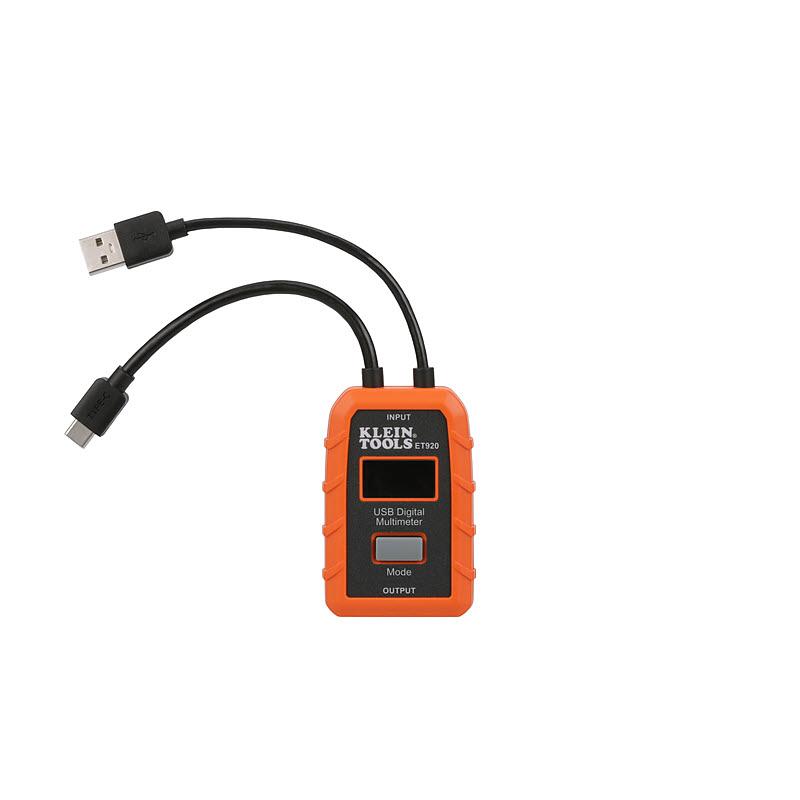

Klein Tools - ET920 The Klein Tools ET920 is a USB digital meter for Type-A and Type-C ports. It accurately and reliably measures and displays the USB port voltage, current, capacity, energy, and resistance simultaneously. It can function with any USB-A and most USB-C ports, including Qualcomm Quick Charge® ports that have the ability to deliver power. It requires NO batteries as it draws power from the power source to function.
- 3 to 20V DC; Current: 0.05 to 3A (USB-A); 3 to 20V DC; Current: 0.05 to 5A (USB-C)
- Continuously monitor up to 1000 hours of voltage, current, capacity/charge delivered, energy, and resistance (calculated)
- Tests most common standard USB-A or USB-C ports, including Qualcomm Quick Charge® ports
- Store and recall up to 10 readings
- Voltage and current overload detection
- Hi-resolution LCD for clear visibility in environments with low ambient lighting
- Durable cables to allow easy access to hard-to-reach ports
- Rugged, pocket-sized, and light weight Klein industrial design stands up to jobsite demands
- Built to withstand a 6.6-Foot (2m) drop
- No batteries needed; powered by the USB port being tested
Additional Information
Type:USB-A (Type A) and USB-C (Type C)
Application:USB Port Voltage, Current, Capacity, Energy and Resistance (Calculated)
Special Features:Fits Any USB-A and USB-C Ports
Voltage:3 to 20V DC
Current:USB-A: 0.05 to 3A; USB-C: 0.05-5A
Capacity Used:99,999mAh Maximum
Energy Delivered:999Wh Maximum
Resistance:400 ohms Maximum
Elapsed Time:Up to 999 Hours, 59 Min, 59 Secs
USB Compatibility:USB-A, USB-C; Qualcomm Quick Charge® Compatible
Drop Protection:2 m (6.6")
Ingress Protection:IP20
Display:LCD
Material:Polymer
Overall Length:2.96"" (7.5 cm)
Overall Height:0.6"" (1.5 cm)
Overall Width:1.96"" (5 cm)
Weight:1.70 oz (48.0 g)
