Product Description

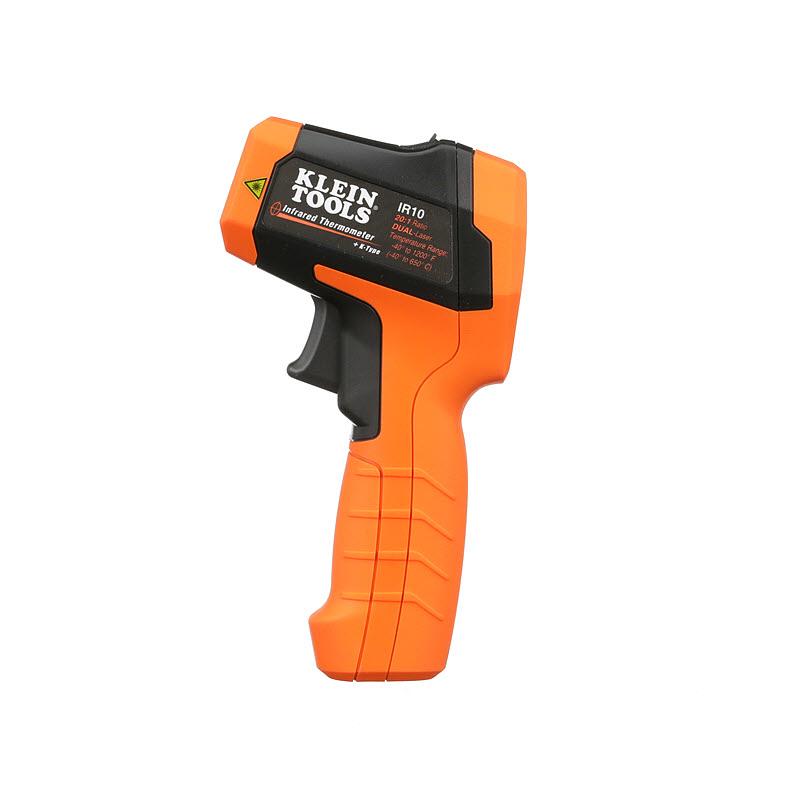

Klein Tools - IR10 Klein Tools IR10 is a professional dual targeting laser infrared (IR) thermometer. It offers a wide measurement range, a tight 20:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. In addition to measuring temperature using IR emission, it can also measure temperature using a standard K-type probe.
- Incorporates surface temperature measurement capability using IR emission and can also measure bulk temperatures of air, gas, or liquids using a standard K-Type probe
- Dual targeting lasers offer more accurate determination of the area being tested
- Optical Resolution (Distance-to-Spot) is 20:1
- Measurement range for both IR and K-Type probe -40 to 1200-Degree Fahrenheit (-40 to 650-Degree Celsius)
- Not a medical device; thermometer is NOT intended for use on people or animals.
- Adjustable emissivity from 0.1-1.0 delivers flexibility to address multiple applications
- Bright backlit display for working in low ambient lighting conditions
- Statistical parameters for measurement event - max/min/avg/diff
- User definable high/low limits with audible and visual alarms when limits are breached
- Uses one 9-volt alkaline battery, with battery life expectancy at 8 hours of continuous use with laser and backlight on
- Includes custom pouch, K-Type probe and battery
- Soft-touch, over-mold housing; built to withstand a 9.9-Foot (3 m) drop
- ''Auto Power-Off'' conserves and extends battery life
- IP54 ingress protections for dust and water resistance
- U.S. patent D791,624
Additional Information
Type:Dual-Laser Infrared Thermometer
Application:Temperature Measurements Using IR Emission or K-Type Probe
Special Features:Dual Targeting Lasers, 20:1 Distance-to-Spot Ratio; Hi/Low Limits with Simultaneous Audible and Visual Alarms When Limits are Breached; Bright Backlit Display; Works with K-Type Probe Also
Audible Alert:Y
Material:Plastic Housing, Electronic Compenents
Batteries:1 x 9V
Distance to Spot:20:1
Accuracy:IR: 32° F and Above: +/- 3° F or +/- 1.5% (Whichever is Greater); Less Than 32° F: +/- (3.6° F + 0.2° F per Degree); K-Type: 32° F and Above: +/- 2° F or +/-% (Whichever is Greater); Above 32° F: +/- 3° or +/1% (Whichever is Greater)
Calculations:Min/Max/Difference/Average
Display:Digital Backlit
Display Resolution:0.1F (0.1 C)
Response Time:150ms
Auto Calibration:N
Degree Format:F or C
Range:-40° to 1200° F (-40° to 650° C)
Standard:EN 61326-1:2013, EN 608251:2014, 21 CFR 1040.10 and 1040.11, Class II Laser, CE
Drop Protection:3 m
Ingress Protection:IP54
Included:Custom Pouch, K-Type Probe and Battery
Overall Length:7"" (17.8 cm)
Overall Width:2.05"" (5.2 cm)
Overall Height:4.49"" (11.4 cm)
Weight:7.40 oz (210.0 g)
