category:
Levels & Measuring Tools
manufacturer:
Klein Tools
mpn:
TI220
subcategory:
Test & Measurement
type:
Thermal Imagers
Product Description

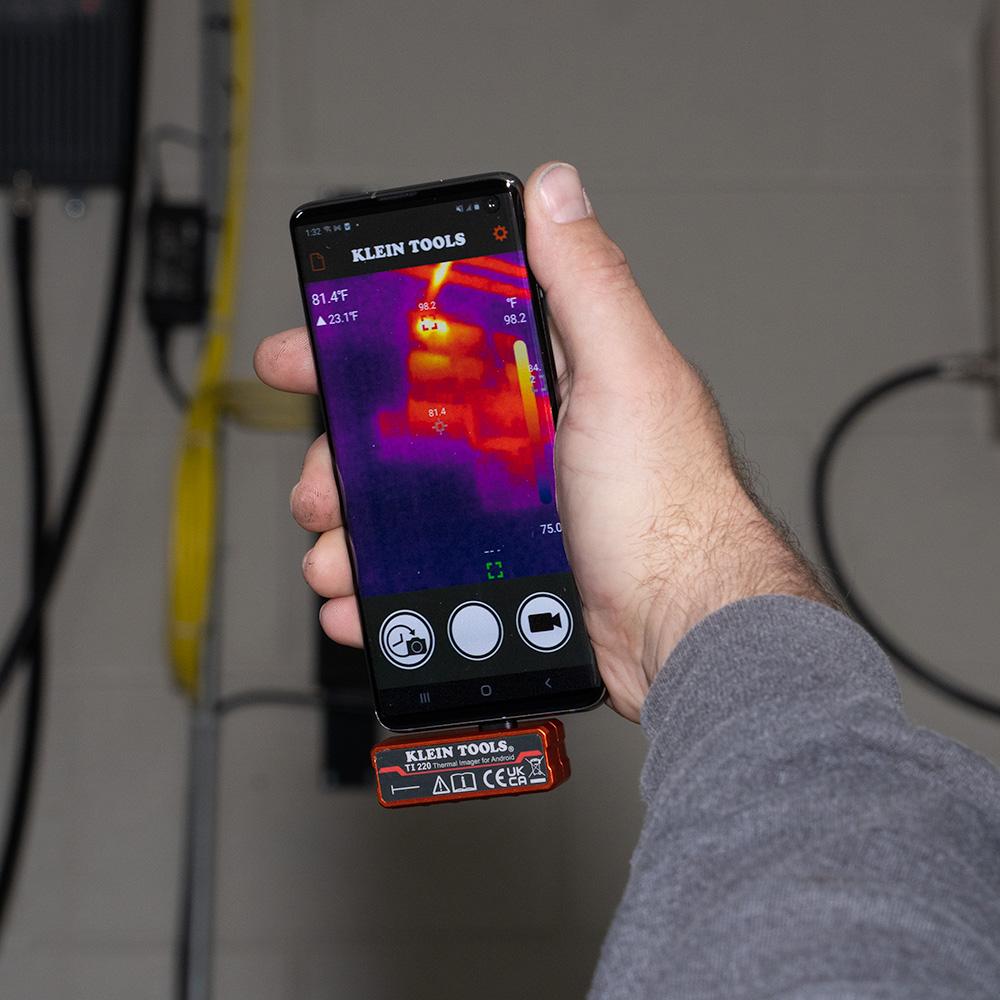

Klein Tools - TI220 The Klein Tools TI220 Thermal Imager for Android® Devices has 10,800 pixels delivering excellent resolution to troubleshoot hot and cold spots. This Thermal Imager is perfect for detecting hot spots in panels, on wiring, or on parts of equipment; helping find sources of energy loss within a home/building; helps detect moisture behind walls and flooring; clogs in pipes; and much more. Easily capture, store, and share thermal images and video through the Klein Tools Thermal Imager Android® App. Available for free on Google Play store.
- Thermal Imager for Android® Devices has 10,800 pixels to deliver excellent resolution for troubleshooting hot and cold spots
- Easily capture, store and share thermal images and video, including time-lapse video
- Features touch screen temperature, high/low temperatures, and differential temperature readout
- View temperature ranges from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius) in three color palettes; ironbow, rainbow, or grayscale
- Includes high/low temperature alarms to monitor systems
- Compatible with most Android® devices versions 6.0 or higher with USB-C or Micro-USB connectors
- Klein Tools Thermal Imager Android® App is available for free in Google Play store
- Durable 6.6-Foot (2 m) drop test protection
Additional Information
Type:Thermal Imager
Application:View Hot and Cold Spots For Instant Troubleshooting
Special Features:High and Low Temperature Points, Touch-Point Temperature, Options for Temperature Alarms, Time-Lapse Video, 3 Color Palettes
Display:External Device
Display Resolution:10,800 Pixels
Sensor Type:VOx Microbolometer
Sensor Resolution:10,800 Pixels
Thermal Sensitivity:60 mK at 25°C
Spectral Range:8 to 14 μm
Temperature Range:-4° to 752°F (-20° to 400°C)
Accuracy:+/-2°C or 2% (whichever is greater). Not calibrated below 10°C (14°F)
Field of View:Horizontal: 50°, Vertical: 50°
Laser Sighting:No
Emissivity:0.01 to 0.99, Adjustable
Color Palettes:Ironbow, Rainbow, and Grayscale
Photo Capture:Yes
Maximum Frames per Second:9 Hz
Memory:External Device
Batteries:Powered from External Device
Included:USB-C Connector, Micro-USB Connector/Adapter, Hard Storage Case with Carabiner, and Instructions
Overall Length:2.13"" (5.4 cm)
Overall Width:0.73"" (1.9 cm)
Overall Height:1.07"" (2.7 cm)
Material:Aluminum Housing, Electronic Components
Standards:CE and UKCA
Weight:1 oz (31 g)
