Product Description

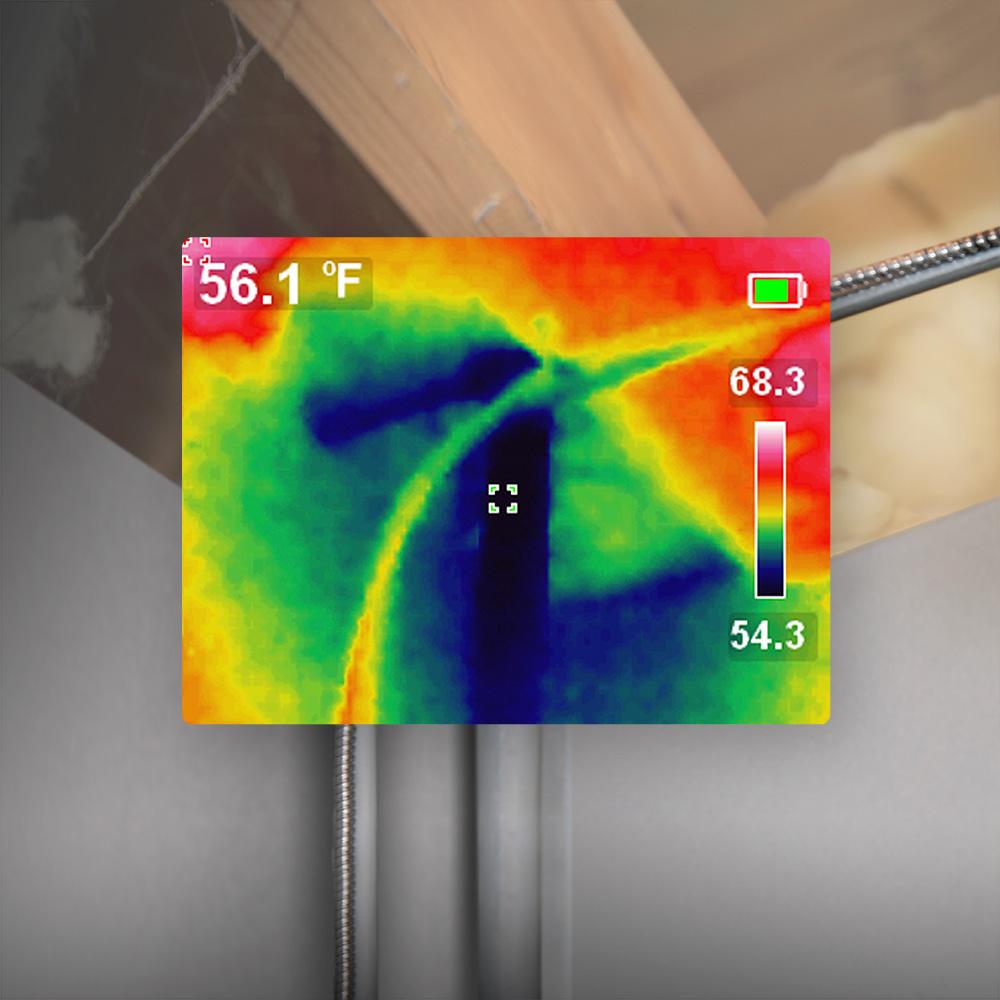

Klein Tools - TI250 The Klein Tools TI250 is an easy-to-use, USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 10,000 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. The addition of an optional microSD® Card (sold separately) allows the meter to capture and store images for reporting.
- Thermal Imager has over 10,000 pixels to troubleshoot hot and cold spots
- Adjustable emissivity from 0.10 to 0.99
- Store and share images with optional microSD® Card (sold separately)
- User selectable high and low temperature alarms from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
- Select color palettes to best capture the event
- Rechargeable lithium-ion battery
- Includes thermal imager, micro-USB charging cable, carrying case, and instructions
Additional Information
Type:Thermal Imager
Application:View Hot and Cold Spots For Instant Troubleshooting
Special Features:High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Color Pallets
Display:2.4"" (6.1 cm) TFT LCD
Display Resolution:10,800 Pixels
Sensor Type:VOx Microbolometer
Sensor Resolution:10,800 Pixels
Thermal Sensitivity:60 mK
Temperature Range:-4° to 752°F (-20° to 400°C)
Accuracy:At More Than 212°F (100°C): +/- 2° or 2% (Whichever is Greater); At Less Than 212°F (100°C): +/- 3° or 3% (Whichever is Greater)
Field of View:Horizontal: 50°, Vertical: 50°
Laser Sighting:Yes
Emissivity:0.10 to 0.99 Adjustable
Color Palettes:Ironbow, Rainbow, and Gray
Photo Capture:Yes
Maximum Frames per Second:9 Hz
Memory:MicroSD® Card (not included)
Batteries:Lithium-Ion
Included:Rechargeable Thermal Imager, Micro-USB Charging Cable, Carrying Case, and Instructions
Overall Length:3.1"" (8.0 cm)
Overall Width:1"" (2.5 cm)
Overall Height:3.1"" (8.0 cm)
Material:ABS/PC, Electronic Components
Standards:CE and BC
Weight:8.5 oz (241 g)
