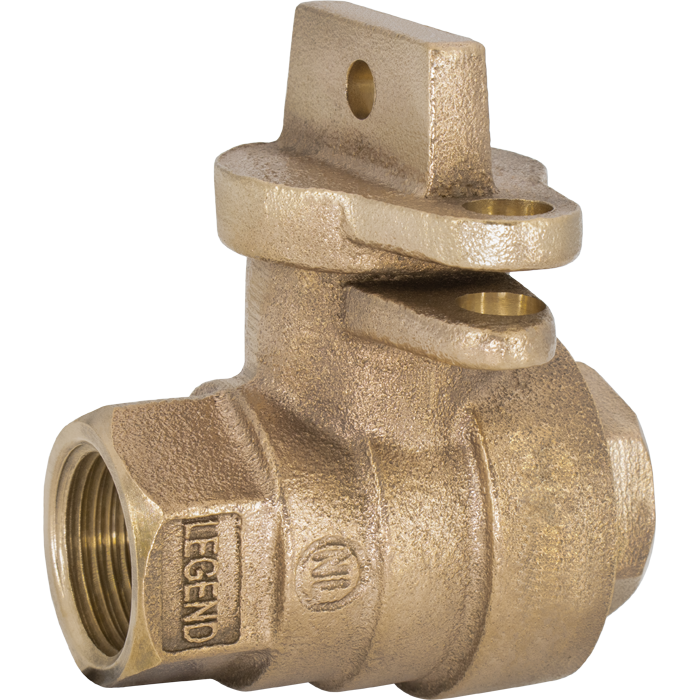

Legend Valves 314-264NL 3/4" No Lead Cast Bronze Water Service FNPT Lock Wing Curb Stop Valve

Legend Valves 314-264NL 3/4" No Lead Cast Bronze Water Service FNPT Lock Wing Curb Stop Valve

Dropship

SKU kpi256-314-264NL

MPN : 314-264NL

$84.81 USD
$84.81 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
age_group: 18+
category: Water Service Fittings
country_of_origin: USA
manufacturer: Legend Valves
mpn: 314-264NL
pdf: ["https://legendvalve.com/documents/pdf/T-5500LWNL.pdf"]
type: Water Service Fittings
upc: 662545119939

Product Description

The T-5500LWNL is an FNPT x FNPT curb stop valve made from lead-free bronze. It features lock wings that allow the valve to be secured in a closed position to prevent unauthorized use. The quarter-turn operation and durable PTFE-coated ball ensure a positive bubble-tight shutoff, low-torque operation, and long service life. The operating head has enclosed stops and has been drilled to accept cotter pins. For underground water service installations only.

Ratings
  • Valve body is rated for 300 psi water pressure. End connections are manufactured in compliance to the latest version of AWWA C800, for high pressure.
